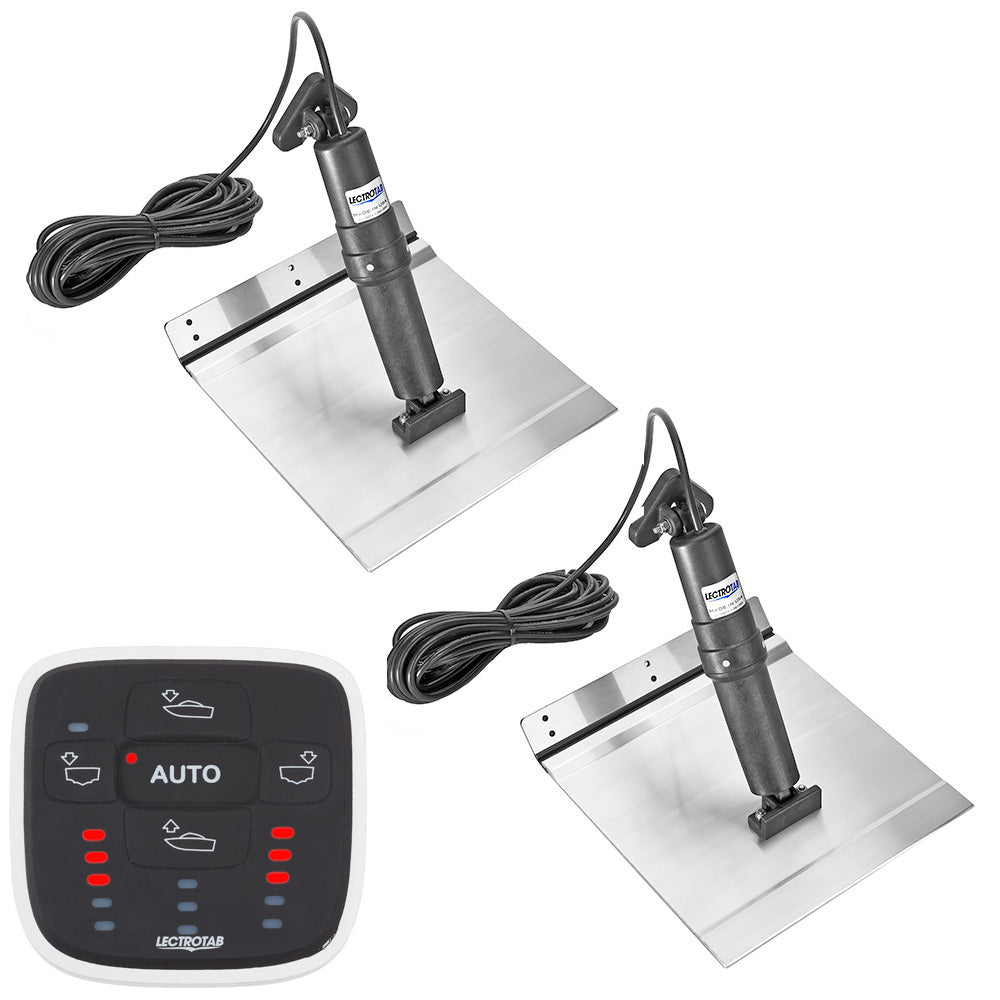

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control – 12 x 18 inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is designed to enhance stability and performance for boats ranging from 20 to 40 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs deliver durability and corrosion resistance, making them ideal for both freshwater and saltwater environments. The kit includes two aluminum alloy tabs sealed with a corrosion-resistant epoxy coating, ensuring long-lasting operation even in harsh conditions. Each tab features a "no break" polypropylene hinge tested over 300,000 cycles, providing reliable performance without failure, while the sealed upper ram prevents damage from fouling or barnacle growth. The system's internal pressure equalization and quiet, maintenance-free actuator design contribute to smooth, precise control with no hydraulic oil to leak, offering a clean and simple installation process. The included Actuator employs a sealed, non-metallic housing, capable of exerting up to 1,000 pounds of force, and features a 2.25-inch stroke for effective movement. The ALC-1 automatic leveling control maintains a level boat by adjusting the trim tabs in real-time, compensating for side roll and fore-aft pitch to improve comfort, handling, and fuel efficiency. The control unit is compact, measuring approximately 3.15 inches wide by 3.07 inches high, and compatible with 12 or 24-volt systems. This kit comes complete with two actuators with 23-foot cables, two aluminum alloy tabs, the automatic leveling control, and an instruction manual, providing everything needed for a professional-grade installation. Designed for ease of use and longevity, the Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers reliable, maintenance-free performance and enhanced boat handling for a wide range of marine vessels.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for durability

• Equivalent strength to 10 gauge stainless steel

• "No break" polypropylene hinge tested over 300,000 cycles for reliability

• Upper ram seal location protected from fouling and barnacles

• Internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation ensures a smooth boating experience

• Actuators are fully load tested to push up to 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water

• Compatible with 12 or 24-volt electrical systems
