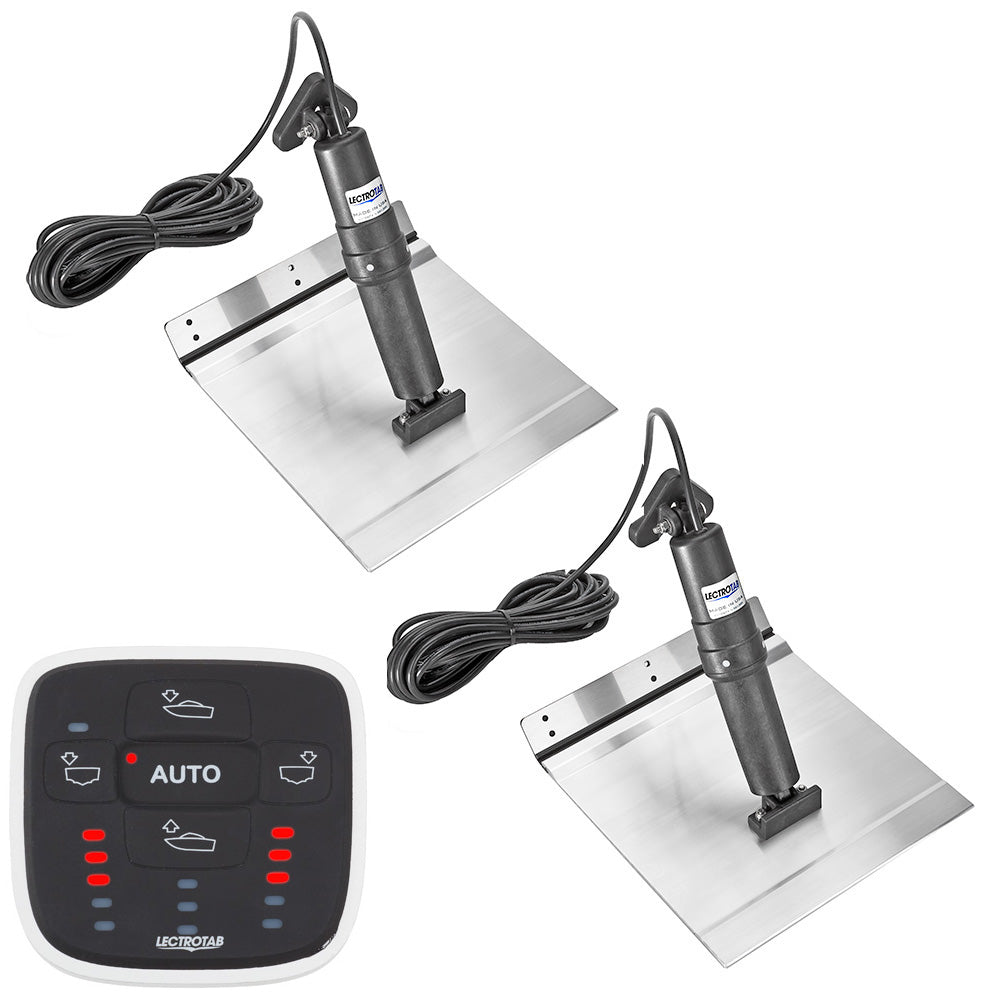

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control – 12 x 24 inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is designed for boats measuring 28 to 48 feet, providing precise and reliable trim adjustments. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs offer exceptional strength and durability, equivalent to 10 gauge stainless steel, ensuring long-lasting performance in harsh marine environments. The kit includes two aluminum alloy tabs sealed with a corrosion-resistant epoxy coating, which prevents deterioration from saltwater, sun, and environmental exposure. Each tab features a "no break" polypropylene hinge tested over 300,000 cycles, offering superior resilience and flexibility during operation. The upper ram seal location is protected from damage caused by fouling or barnacle growth, minimizing maintenance needs. The internal pressure equalization system and the non-metallic external structure work together to prevent corrosion and deterioration, making these trim tabs ideal for aluminum hulls and all marine applications. The integrated actuator is a maintenance-free, non-hydraulic design that operates quietly, providing accurate tab positioning and maximum lift force. Capable of pushing up to 1,000 pounds of force, the actuator is sealed within a non-metallic housing, eliminating the risk of oil leaks common with hydraulic systems. The kit features a 12-volt DC actuator with a 2.25-inch stroke and a 23-foot cable for flexible installation. The control unit, measuring 3.15 by 3.07 inches, includes an automatic leveling feature that maintains a level boat by adjusting trim tabs automatically. It also corrects side-to-side roll and fore-and-aft pitch, enhancing stability, comfort, and fuel efficiency. The control is compatible with 12 or 24 volts, making it versatile for different vessel setups. The package includes one automatic leveling control, two aluminum alloy trim tabs, two actuators with cables, and an instruction manual for easy installation. This kit provides a comprehensive solution to improve your boat's handling, stability, and fuel economy, all in a corrosion-resistant, maintenance-free design that ensures dependable operation over time.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for durability

• Constructed from marine-grade 6005-T5 aluminum alloy, offering strength comparable to 10 gauge stainless steel

• "No break" polypropylene hinge tested over 300,000 cycles for long-term resilience

• Upper ram seal placement protects against fouling and barnacle damage

• Internal pressure equalization system enhances reliability and longevity

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation ensures minimal noise during use

• Actuators fully load tested to push up to 1,000 lbs of force for maximum lift

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure

• Automatic leveling control maintains level boat attitude and corrects side-to-side and fore-aft roll

• Includes all necessary components for installation: two aluminum alloy tabs, two actuators with cables, and control unit
