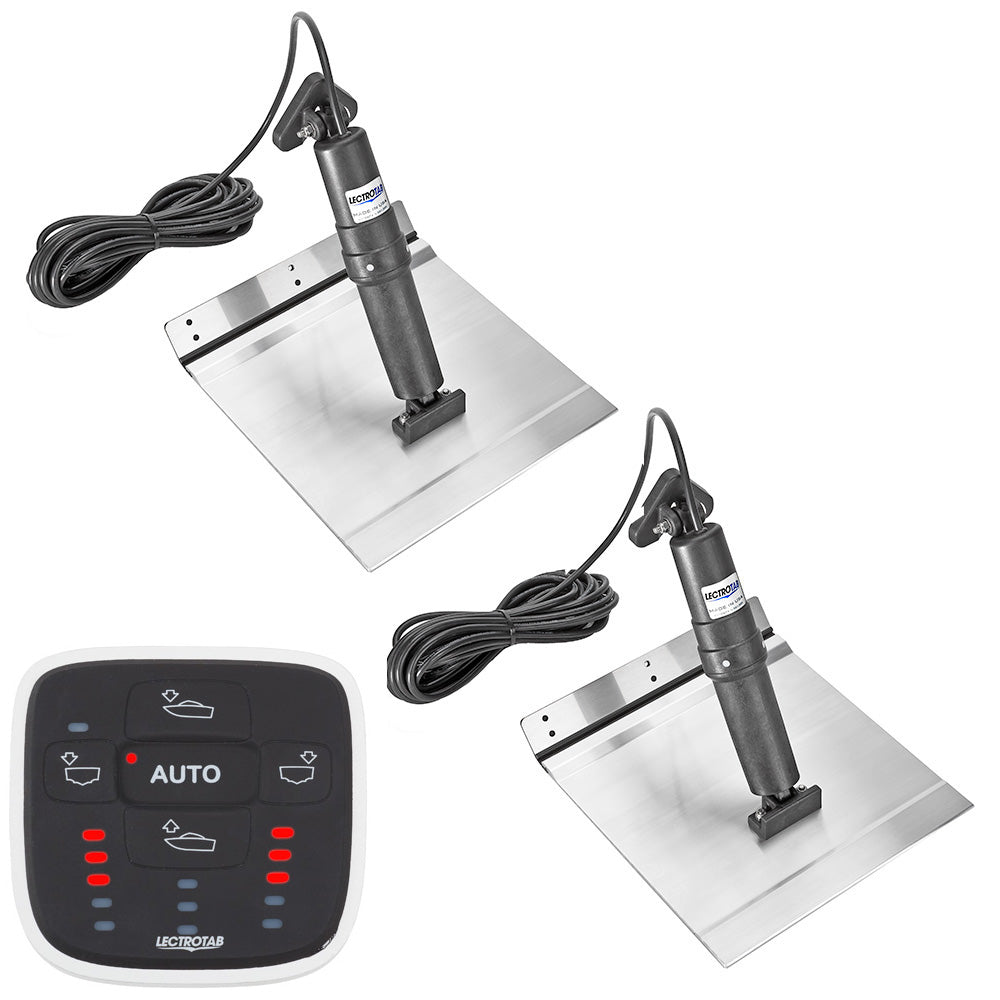

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 9 inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control offers a durable and reliable solution for boats ranging from 18 to 29 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide exceptional strength and corrosion resistance, making them ideal for both freshwater and saltwater environments. The kit includes two aluminum alloy tabs sealed with a corrosion-resistant epoxy coating, ensuring long-lasting performance in harsh conditions. The tabs feature a "no-break" polypropylene hinge tested over 300,000 cycles, providing reliable operation without failure, and are designed to withstand the stresses of boating with an equivalent strength to 10 gauge stainless steel. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth, reducing maintenance needs and ensuring consistent performance. The internal pressure equalization system and internal brake prevent unwanted tab movement during transit or backing down, offering smooth and quiet operation at all times. The actuators are fully load tested to push up to 1,000 pounds of force, providing maximum lift with minimal noise. The external structure is non-metallic, preventing corrosion and deterioration from sun exposure or water contact. The kit features a 12-inch by 9-inch trim tab size, suitable for boats up to 29 feet, and includes two actuators with 23-foot cables for flexible installation. The DC-powered actuators operate at 12 volts, with a stroke length of 2.25 inches and a vertical height of approximately 11.88 inches. The ALC-1 automatic leveling control maintains a level boat by adjusting the trim tabs automatically, correcting side-to-side roll and fore-aft pitch to enhance comfort, stability, and fuel efficiency. Installation is straightforward with a control mounting hole cutout of 2 inches, and the control unit measures approximately 3.15 inches by 3.07 inches. This comprehensive kit contains all necessary components, including the control, two aluminum alloy tabs, actuators with cables, and an instruction manual. Designed for ease of use, the Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is an excellent upgrade for boaters seeking durability, precision, and automatic stability assistance in their trim system.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure

• Upper ram seal location protected from fouling and barnacle growth

• Utilizes internal pressure equalization system for reliability

• Internal brake system prevents unwanted movement during operation or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure prevents corrosion and deterioration in sun and water
