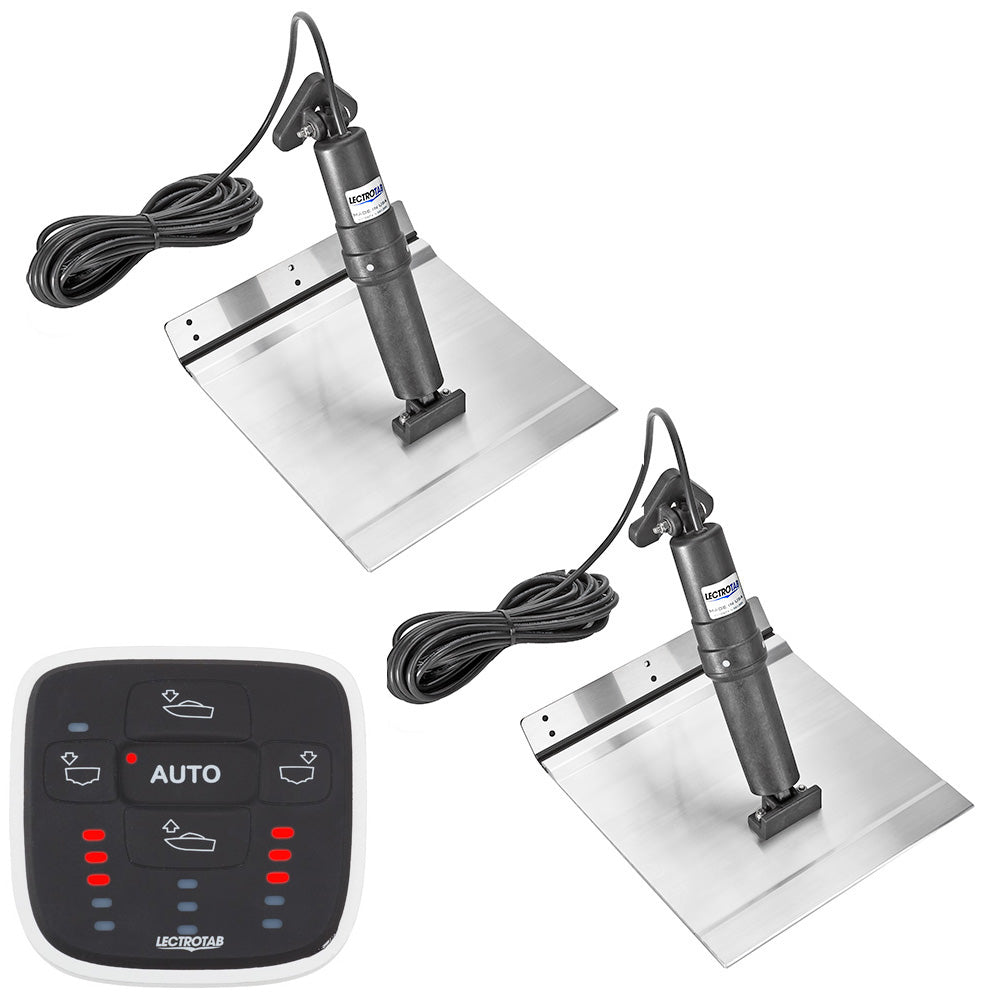

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control – 9 x 12 inches for Boats 16 to 25 Feet

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed to enhance the performance and stability of boats measuring 16 to 25 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide reliable strength and durability while maintaining an economical price point. The kit includes two aluminum alloy tabs sealed with a corrosion-resistant epoxy coating, ensuring long-lasting resistance to harsh marine environments. The tabs feature a "no-break" polypropylene hinge tested over 300,000 cycles, offering exceptional durability and flexibility without failure. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth, and an internal pressure equalization system maintains consistent operation. The external non-metallic structure resists corrosion and deterioration caused by sun exposure or water, making it ideal for saltwater or freshwater use. The integrated actuator system is driven by a 12-volt DC power supply, providing up to 1000 pounds of force with a 2.25-inch stroke length, ensuring precise and responsive tab movement. The actuator's sealed, non-metallic housing prevents oil leaks common in hydraulic systems and requires no maintenance. The kit includes two actuators with 23-foot cables, an automatic leveling control (ALC), and comprehensive installation instructions. The ALC automatically adjusts the trim tabs to keep the boat level, correcting side-to-side roll and fore-aft pitch for a smoother ride and improved fuel economy. The control unit is compact, measuring approximately 3.15 x 3.07 inches, and can be mounted easily with a 2-inch hole cutout. This self-contained system simplifies installation and reduces maintenance concerns typical of hydraulic systems. Whether you desire a more comfortable ride or improved handling, the Lectrotab XKA Aluminum Alloy Trim Tab Kit is a reliable choice for boaters seeking durability, efficiency, and ease of use in a trim tab solution.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for longevity

• Constructed from marine-grade 6005-T5 aluminum alloy for strength and durability

• "No break" polypropylene hinge tested over 300,000 cycles for reliability

• Upper ram seal location protected from damage due to fouling or barnacles

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted movement during operation or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push up to 1000 lbs of force

• External non-metallic structure resists corrosion and sun damage

• Includes automatic leveling control to maintain boat level and improve handling

• Designed for easy installation with all components self-contained in the kit
