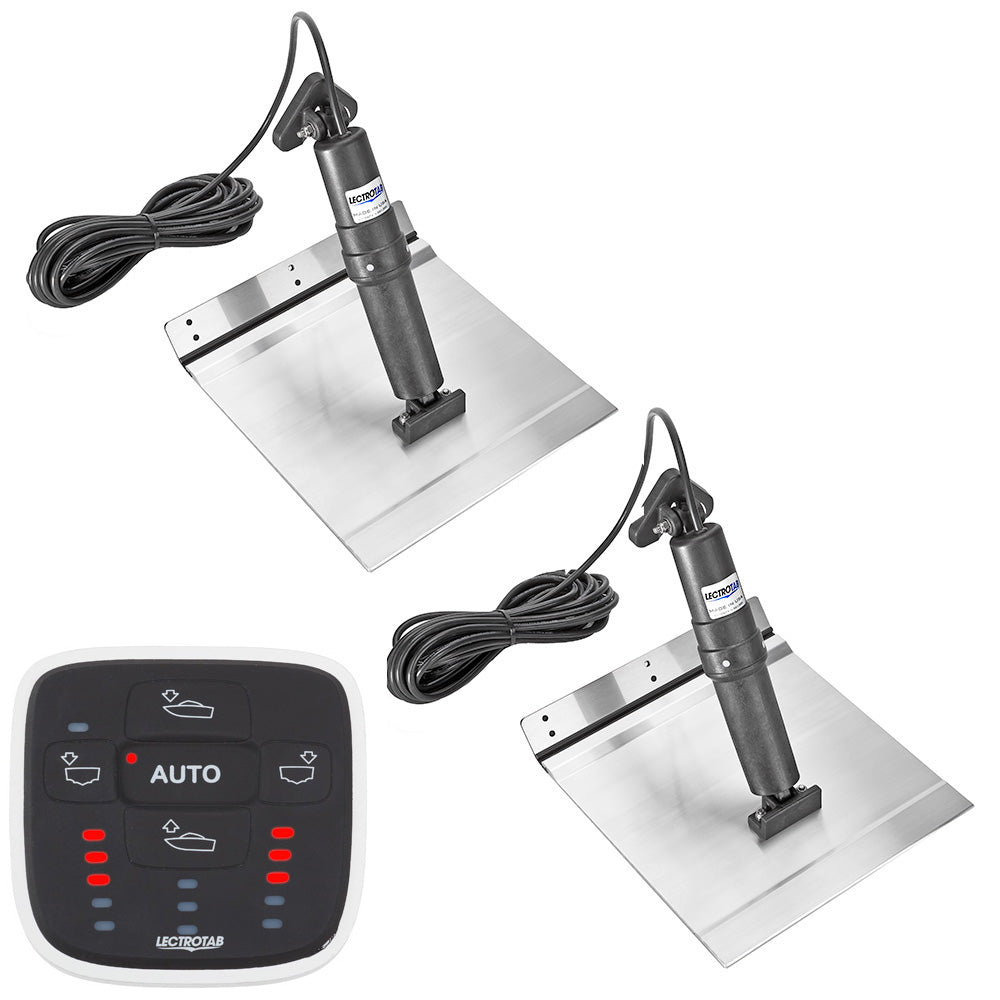

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control – 9 x 18 inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is designed to enhance the stability and performance of boats ranging from 21 to 30 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are built to withstand harsh marine environments while providing reliable, corrosion-resistant operation. The kit includes two aluminum alloy tabs sealed with a durable epoxy coating, ensuring long-lasting protection against saltwater and environmental elements. Features such as a no-break polypropylene hinge tested over 300,000 cycles and internal pressure equalization contribute to the durability and smooth operation of the trim tabs. The design eliminates hydraulic oil leaks, reducing maintenance and potential environmental concerns, while the external non-metallic structure resists deterioration from sun exposure and water contact. The integrated actuator assembly is fully load tested to push up to 1,000 pounds of force, providing maximum lift and precise control. The actuator’s sealed housing prevents damage from barnacles or fouled rams, and its quiet operation ensures a smooth, unobtrusive boating experience. The kit’s automatic leveling control (ALC-1) intelligently adjusts trim tabs to maintain a level boat, automatically correcting roll and pitch for optimal comfort and fuel efficiency. Installation is straightforward with a 12-volt DC power supply, and the control unit is compact, measuring just over 3 inches in width and height, designed for easy mounting. The kit includes two actuators with 23-foot cables, an ALC-1 control, and detailed instructions, providing everything needed for a professional-grade upgrade. Whether you're seeking a maintenance-free, corrosion-resistant solution or improved boat handling, this trim tab kit is an economical, high-performance choice for aluminum-hulled boats. The self-contained, non-metallic design ensures durability over time, making it suitable for a variety of marine applications. Please refer to the included manual for detailed installation and operation instructions, and note that this product is sold as a kit for comprehensive functionality.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 degree bend

• Upper ram seal location protected from fouling and barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures smooth adjustments

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
