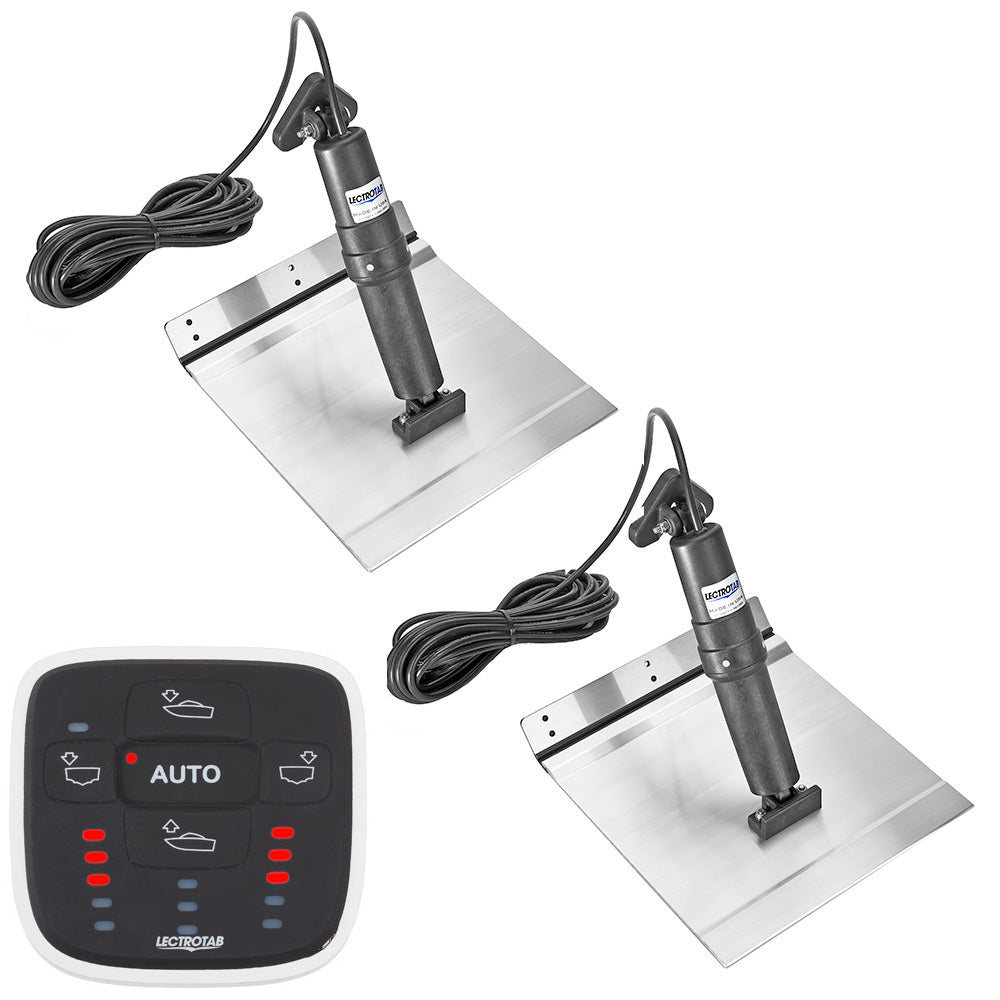

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control – 9 x 24 inches for Boats 24 to 37 Feet

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control offers a durable and maintenance-free solution for boats with aluminum hulls. Designed to provide precise control and enhanced stability, this kit features aluminum alloy trim tabs that are sealed with a corrosion-resistant epoxy coating, ensuring long-lasting performance in harsh marine environments. The all-aluminum construction is equivalent in strength to 10 gauge stainless steel, delivering reliable lift and durability. The unique "no break" polypropylene hinge has been tested for over 300,000 cycles at a 90-degree bend, demonstrating exceptional resilience. The upper ram seal location is protected from fouling and barnacle growth, maintaining optimal operation over time. This kit's internal pressure equalization system and internal brake prevent unwanted movement, providing smooth, quiet operation under various conditions. The actuators are capable of delivering up to 1,000 pounds of force, and their sealed housing eliminates the need for hydraulic oil, preventing leaks and simplifying installation. The external non-metallic structure is resistant to corrosion and deterioration from sun exposure and water, making it ideal for a variety of marine applications. The control system, equipped with the Automatic Leveling Control (ALC), automatically adjusts the trim tabs to keep your boat level, reducing side-to-side roll and fore-aft pitch, which enhances ride comfort and improves fuel efficiency. Designed for boats ranging from 24 to 37 feet, the kit includes two aluminum alloy tabs, two actuators with 23-foot cables, and an easy-to-install control unit. The compact control dimensions and mounting hole size facilitate straightforward installation. This product is sold as a complete kit, ensuring you have everything needed for an efficient upgrade. Please note that this product may not be returned to the point of purchase, and direct contact with the manufacturer is recommended for any concerns. For detailed installation and operation instructions, refer to the provided manual link.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location protected from fouling and barnacles

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement

• Quiet operation for smooth adjustments

• Actuators fully load tested to push 1,000 pounds of force

• Non-metallic external structure resistant to corrosion and sun deterioration
