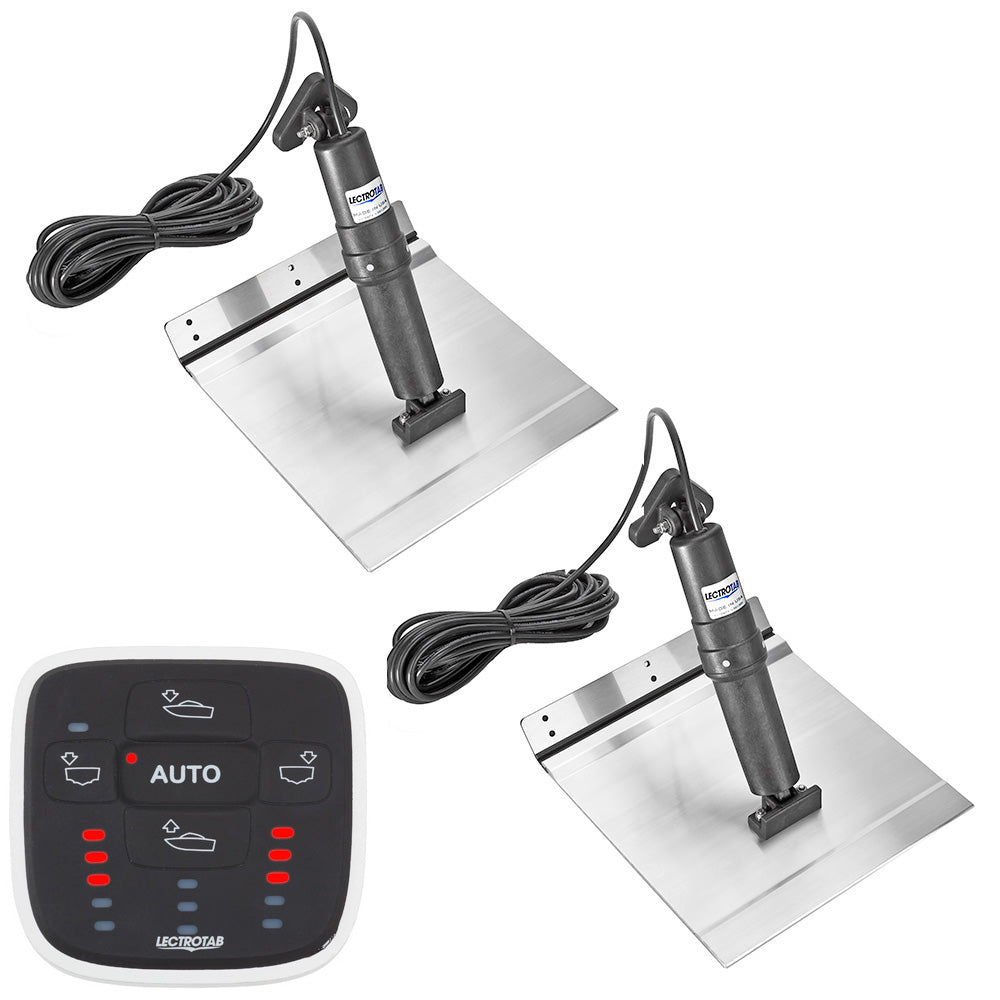

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 9 Inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is designed for aluminum-hulled boats measuring from 14 to 19 feet. Crafted from marine-grade 6005-T5 aluminum alloy, each trim tab measures 9 inches by 9 inches, providing reliable lift and balance. The kit features corrosion-resistant epoxy coating and a robust polypropylene hinge tested over 300,000 cycles, ensuring durability and long-term performance. The all-metal external structure prevents deterioration from sun exposure and water, offering a maintenance-free solution for boaters seeking stability and ease of use. The non-metallic, sealed actuator housing ensures a corrosion-free environment and quiet operation, pushing up to 1000 pounds of force for precise tab positioning. The internal pressure equalization system and brake mechanism prevent unwanted movement, even under rough conditions, while the internal seal design protects against fouling and barnacle growth. The ALC-1 automatic leveling control maintains a level ride by adjusting trim tabs automatically, enhancing comfort while improving fuel efficiency. It also corrects boat roll and pitch for a smoother experience. The kit's components include two aluminum alloy trim tabs, two sealed actuators with 23-foot cables, and an intuitive control unit compatible with 12 or 24 volts. Installation is straightforward with a 2-inch mounting hole cutout and compact control dimensions. This comprehensive kit provides everything needed for an upgrade to your boat's stability and control, delivering silent, maintenance-free operation without hydraulic oil leaks. Ideal for boaters seeking a durable, reliable, and easy-to-install trim tab system that enhances safety and performance on the water.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location protected from fouling and barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation ensures minimal noise disturbance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water exposure
