SKU:96336

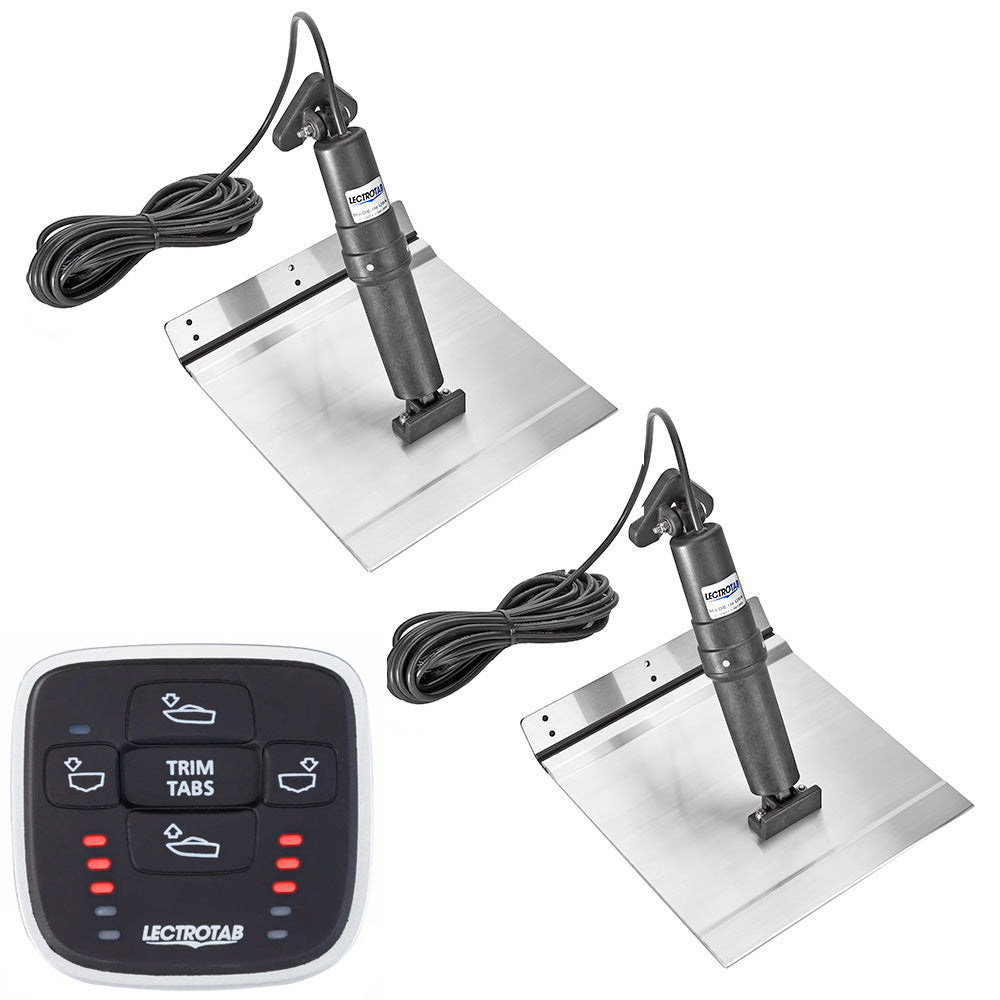

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 12
The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.
Features:
Technical Specifications:
In the Box:
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control is designed for boats ranging from 18 to 32 feet, offering a reliable and maintenance-free solution for precise boat leveling and stability. Constructed from marine-grade 6005-T5 aluminum alloy, these trim tabs provide exceptional strength comparable to 10-gauge stainless steel while maintaining a lightweight profile. The corrosion-resistant epoxy coating ensures durability against harsh marine environments, making this kit suitable for both freshwater and saltwater applications. Each tab features a no-break polypropylene hinge tested over 300,000 cycles, delivering long-lasting performance without failure.
The system is equipped with a precision-engineered actuator that delivers quiet and smooth operation, capable of exerting up to 1,000 pounds of force. The actuator housing is sealed with a non-metallic, permanently sealed design, eliminating the risk of oil leaks common with hydraulic systems. Internal pressure equalization and an internal brake system guarantee accurate tab positioning and prevent unwanted movement during underway or backing down. The actuator's 2.25-inch stroke length and 23-foot cable provide flexible installation options, with the external structure resistant to corrosion and deterioration from sun exposure or water.
The MLC-1 microprocessor-based control unit allows for simultaneous movement of both tabs at the push of a button, simplifying operation. It features LED indicators that automatically adjust brightness for visibility in different lighting conditions, enhancing ease of use. The control box is compact, measuring just over 3 inches in width and height, with a 2-inch mounting hole compatible with standard transom openings. The kit includes two aluminum alloy tabs, two actuators with cables, and a manual leveling control, providing everything needed for a straightforward installation. With no hydraulic oil or complex components to maintain, this trim tab system offers a dependable, corrosion-free, and efficient solution for improving boat performance and handling.
For detailed installation instructions, refer to the included manual available online. This product is sold as a complete kit, ensuring compatibility and ease of setup for boat owners seeking durable and effective trim tab technology.
Features:
