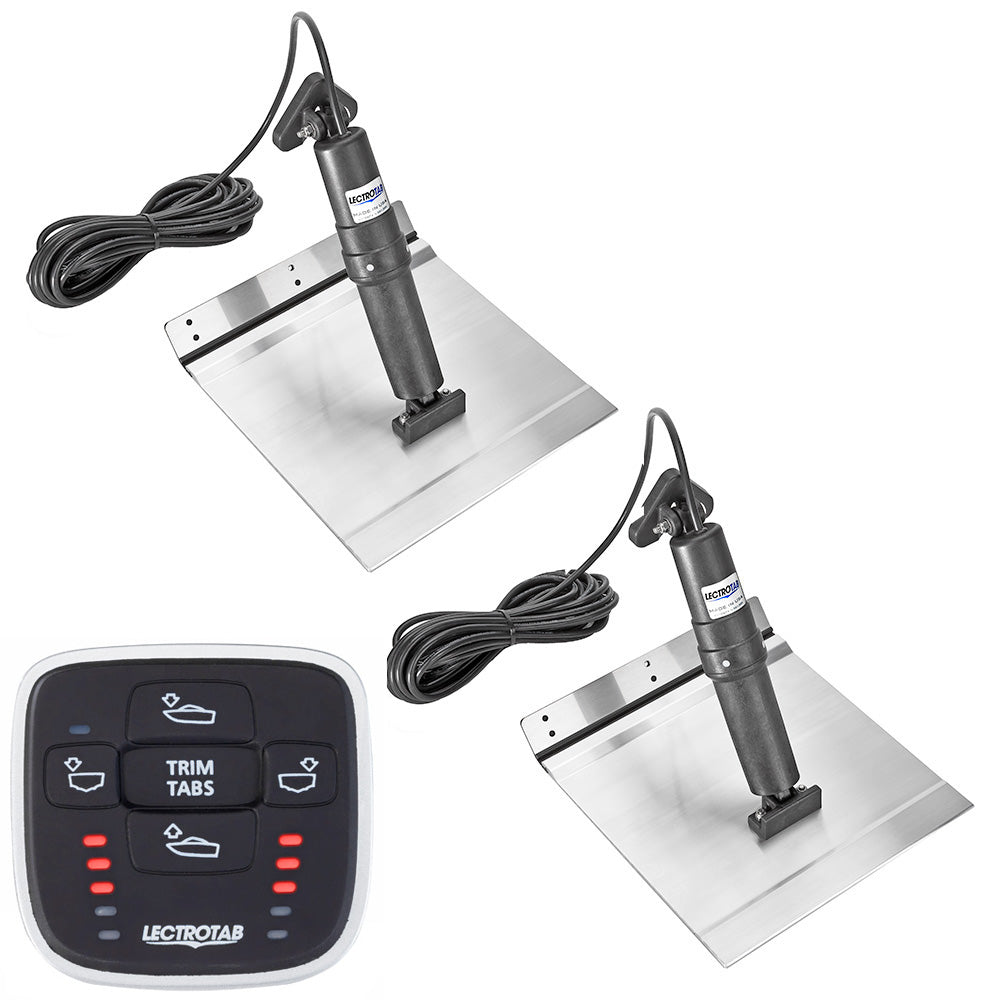

Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control – 12 x 9 inches for Boats 18 to 29 Feet

Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control – 12 x 9 inches for Boats 18 to 29 Feet

Regular price $999.60 USD
Sale price $999.60 USD Regular price
Sale Sold out
Shipping calculated at checkout.

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

  • All Tabs sealed with a corrosive resistant epoxy coating
  • Equivalent strength to 10 gauge stainless steel
  • "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
  • Boat Length - 18' to 29' (5.5 to 8.5 M)
  • Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length - 23' (7 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
  • Control Mounting Hole Cutout - 2" (50 mm)
  • Control Operating Voltage - 12 or 24 V

In the Box:

  • One (1) Manual Leveling Control
  • Two (2) Aluminum Alloy tabs
  • Two (2) actuators w/23' (7 M) cables
  • Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control offers a reliable and corrosion-resistant solution for boats ranging from 18 to 29 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide a durable, lightweight alternative to stainless steel, with an epoxy coating that ensures corrosion resistance in harsh marine environments. The kit includes two aluminum alloy tabs measuring 12 inches by 9 inches, designed to deliver maximum lift and precise control for optimal vessel stability and performance. Their construction features a

Features:

  • All tabs sealed with a corrosion-resistant epoxy coating for longevity
  • Constructed from marine-grade aluminum alloy with strength comparable to stainless steel
  • Polypropylene hinge tested over 300,000 cycles to ensure durability
  • Design incorporates internal pressure equalization and an internal brake system for stability
  • Quiet operation with load-tested actuators capable of exerting 1,000 lbs of force
  • External non-metallic housing resistant to corrosion, sun, and water exposure
  • Includes standard or low-profile transom mounting brackets for flexible installation
  • MLC-1 microprocessor control moves both tabs simultaneously with automatic LED brightness adjustment
  • Operates on 12 V DC power, with a stroke length of 2.25 inches
  • Kit includes two aluminum alloy tabs, two actuators with 23-foot cables, and a manual control for easy setup
