SKU:96332

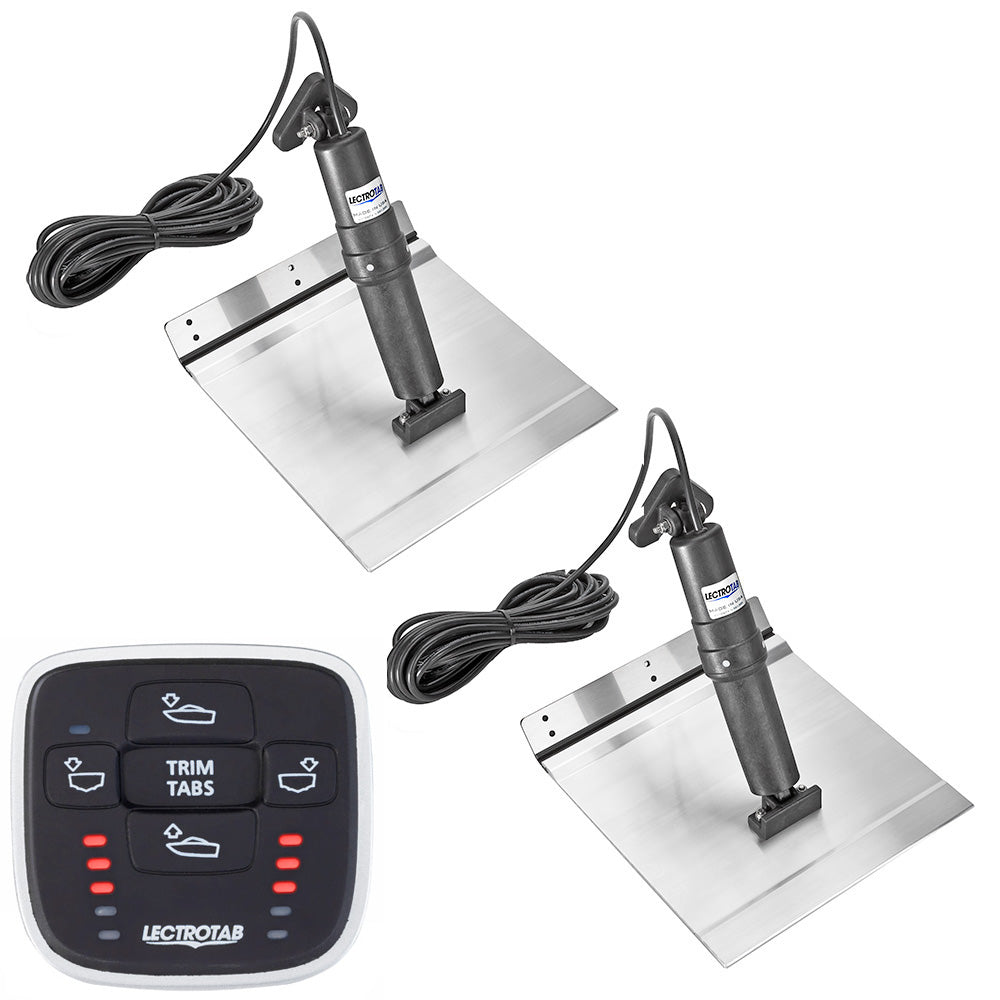

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 9 x 12
The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.
Features:
Technical Specifications:
In the Box:
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control is designed for seamless installation on aluminum-hulled boats ranging from 16 to 25 feet. The kit includes two durable 9 x 12-inch aluminum alloy trim tabs, which are sealed with a corrosion-resistant epoxy coating to withstand harsh marine environments. Crafted from marine-grade 6005-T5 aluminum alloy, these tabs offer the strength of 10-gauge stainless steel, ensuring long-lasting performance. The tabs feature a "no break" polypropylene hinge tested over 300,000 cycles, providing exceptional durability and flexibility. The upper ram seal location is protected from fouling and barnacle growth, maintaining reliable operation over time. The kit’s internal pressure equalization system prevents water ingress, and the internal brake system ensures precise control when underway or backing down, preventing unwanted movement. The external structure is non-metallic, preventing corrosion and deterioration caused by sun exposure or water contact. The integrated actuators are fully load-tested to exert up to 1,000 pounds of force, operate quietly, and are built with a sealed housing that eliminates hydraulic oil leaks. The actuators feature a 2.25-inch stroke and are powered by a 12-volt DC supply, with a cable length of 23 feet for flexible mounting options. The kit includes a compact, microprocessor-based MLC-1 control system that enables simultaneous movement of both tabs at the push of a button, with LED indicators that automatically adjust brightness based on ambient light conditions. The control unit measures approximately 3.15 by 3.07 inches, with a mounting hole cutout of 2 inches. This kit provides an easy, maintenance-free solution to adjust trim for optimal boat handling and performance. The package contains two aluminum alloy tabs, two actuators with cables, a manual leveling control, and an instruction manual. Suitable for boats that require reliable, corrosion-resistant trim tab operation, this kit is an ideal upgrade for enhancing vessel stability and maneuverability in various conditions.
Features:
