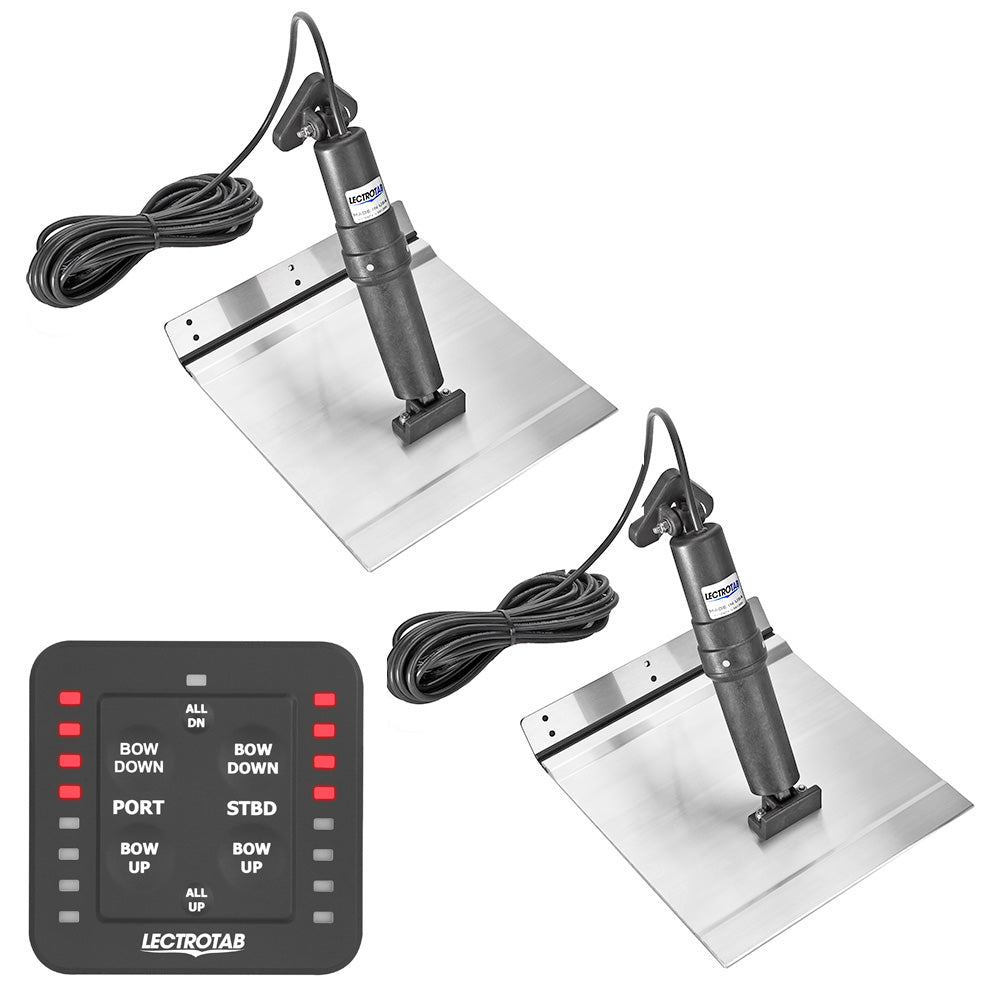

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 12 inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for boats with aluminum hulls, offering an economical and reliable solution for optimal performance. Each trim tab is constructed from marine-grade 6005-T5 aluminum alloy, providing exceptional strength and corrosion resistance. The kit includes two 12 x 12 inch aluminum alloy tabs sealed with a durable epoxy coating, ensuring longevity in harsh marine environments. The design features a no-break polypropylene hinge tested over 300,000 cycles to a 90-degree bend, guaranteeing durability and long-term operation. The upper ram seal is positioned to prevent damage from fouling or barnacle growth, maintaining smooth functionality over time. The internal pressure equalization system and an internal brake prevent unwanted movement, ensuring precise control during operation. The actuator assembly is housed in a sealed, non-metallic enclosure that resists corrosion and deterioration from sun exposure or submersion, making maintenance minimal and straightforward. This non-hydraulic, maintenance-free actuator provides maximum lift force and operates quietly, with a load capacity of up to 1,000 pounds. The kit features a 12-volt DC actuator with a 2.25-inch stroke and a flexible 23-foot cable for easy installation. The included one-touch LED control offers intuitive, full control of your trim tabs, allowing precise adjustments at your fingertips. Designed to fit boats from 18 to 32 feet, this kit provides a seamless upgrade to enhance boat handling and stability. The package includes two aluminum alloy tabs, two actuators with cables, a one-touch control, and an instruction manual, making installation straightforward and accessible for boat owners. Overall, the Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers durable, corrosion-resistant components combined with advanced control features to improve your boat’s performance and handling in various water conditions.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to 90 degrees

• Upper ram seal location designed to prevent damage from fouling or barnacles

• Utilizes internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted movement during operation

• Quiet operation for smooth performance

• Actuators fully load tested to push 1,000 lbs of force

• External non-metallic structure resists corrosion and deterioration
