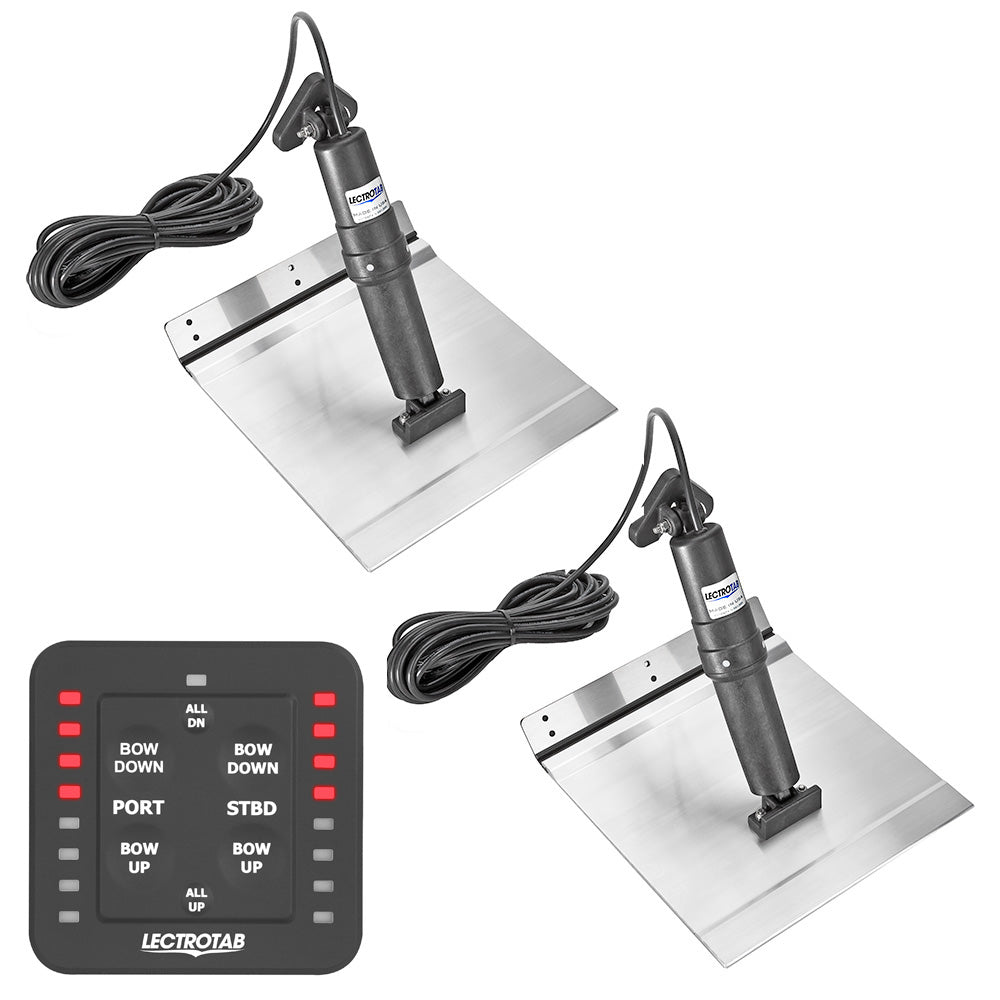

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 24 inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for boats ranging from 28 to 48 feet, providing reliable and precise trim adjustment. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs offer excellent corrosion resistance and durability for both freshwater and saltwater environments. The kit includes two 12 x 24 inch aluminum alloy tabs, each sealed with a corrosion-resistant epoxy coating, ensuring long-lasting performance. The "no-break" polypropylene hinge, tested over 300,000 cycles, guarantees durability without failure, even under strenuous conditions. The upper ram seal location is protected from fouling and barnacle growth, maintaining smooth operation over time.
The included actuator features a pressure equalization system and internal brake to prevent unwanted movement during operation or backing down. Fully load tested to push up to 1,000 pounds, the actuator operates quietly with a maintenance-free design, eliminating concerns of hydraulic leaks and oil spills. Its external non-metallic housing resists deterioration caused by sun exposure or water contact, ensuring reliable performance in harsh marine environments. The one-touch control unit, equipped with LED indicators, provides easy and precise control at your fingertips, simplifying trim adjustments for optimal boat handling and efficiency.
Installation is straightforward with the included transom mounting brackets, available in standard or low profile options. The kit also features a 12-volt DC actuator with a 2.25-inch stroke and a 23-foot cable, allowing flexible placement and wiring. The compact rocker switch (3 inches by 3 inches) can be mounted conveniently on the dash, with a cutout size of 2.25 by 2.5 inches, compatible with 12 or 24-volt systems. This comprehensive kit is ideal for boat owners seeking durable, maintenance-free trim tabs with advanced control features. Please refer to the included manual for detailed installation instructions and operational guidance.
Note that this product is sold as a complete kit and is not eligible for return to the original point of purchase. For any concerns or issues, contact the manufacturer directly via the provided owner’s manual link.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10-gauge stainless steel

• "No break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location protected from fouling and barnacles

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation with maintenance-free design

• Actuators fully load tested to push 1,000 lbs of force

• Non-metallic external structure resistant to corrosion and deterioration
