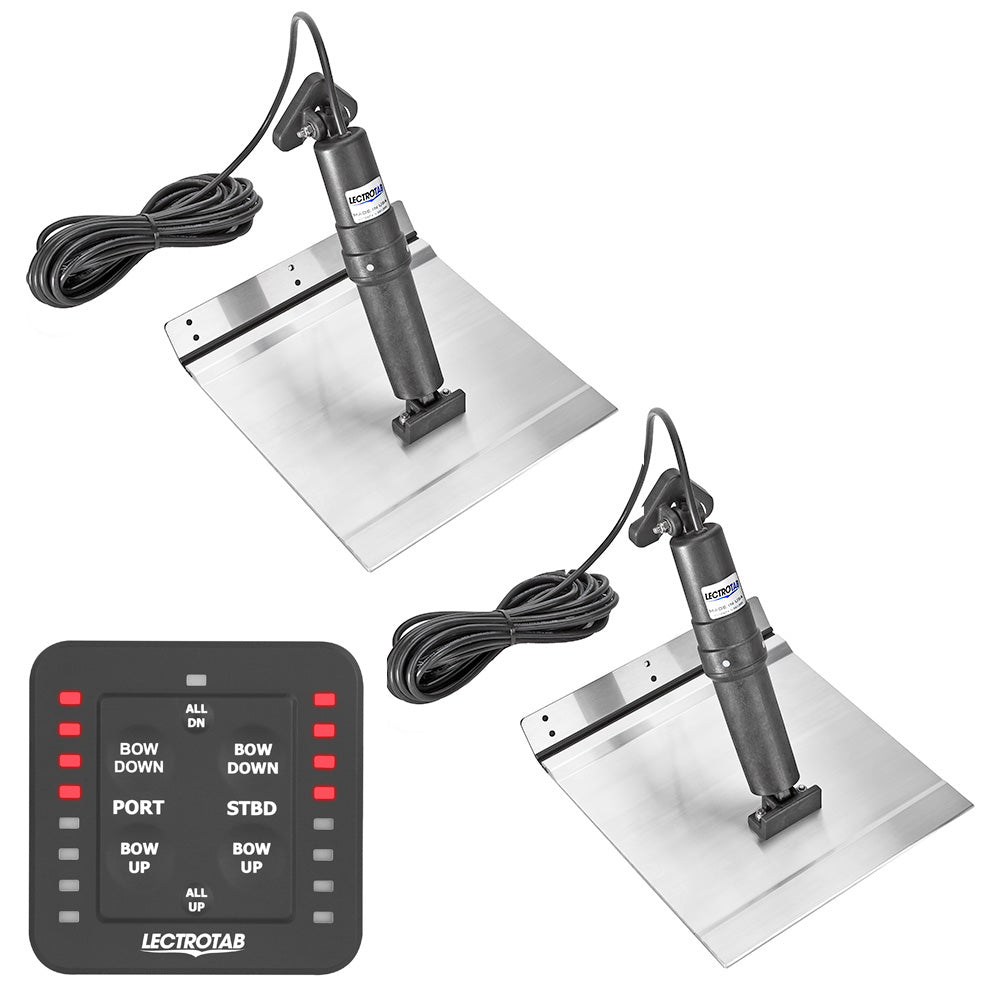

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control – 12 x 9 inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for precision control and durability on boats ranging from 18 to 29 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs feature a corrosion-resistant epoxy coating, making them ideal for both freshwater and saltwater environments. The kit includes two aluminum tabs measuring 12 inches by 9 inches, providing maximum lift and stability, along with two robust actuators equipped with 23-foot cables for flexible installation options. The aluminum alloy construction offers an equivalent strength to 10-gauge stainless steel, ensuring long-term performance without the risk of deterioration. The no-break polypropylene hinge, tested over 300,000 cycles, guarantees durability and reliable operation over time. The internal pressure equalization system and sealed actuator housing prevent barnacle buildup and damage, while the internal brake system maintains position during operation or backing down. Operating quietly, the actuators are capable of exerting up to 1,000 pounds of force, providing precise trim adjustments for improved boat handling and efficiency. The kit features the convenient one-touch control with LED indicators, allowing for easy, fingertip management of your trim tabs. Its non-metallic external structure resists corrosion, sun damage, and water exposure, ensuring consistent performance in harsh marine conditions. Installation is simplified with a standard or low-profile transom mounting bracket, and the control switch dimensions are designed for easy integration into your boat's dashboard. The package includes the trim tabs, actuators with cables, the one-touch control, and an instructional manual for straightforward setup. This complete kit is an economical and reliable solution for enhancing your boat's stability, maneuverability, and overall performance without the maintenance concerns associated with hydraulic systems. Whether you are upgrading or installing new trim tabs, the Lectrotab XKA Aluminum Alloy Trim Tab Kit provides durable, corrosion-resistant, and easy-to-use trim control for your marine vessel.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for durability

• Equivalent strength to 10 gauge stainless steel for long-lasting performance

• "No Break" polypropylene hinge tested over 300,000 cycles for reliability

• Upper ram seal location designed to prevent damage from fouling or barnacles

• Utilizes internal pressure equalization system to prevent leaks

• Internal brake system to prevent unwanted movement during operation or backing down

• Quiet operation for unobtrusive trim adjustments

• Actuators fully load tested to push 1,000 lbs of force for maximum lift

• External non-metallic structure resists corrosion and deterioration in sun and water exposure

• Includes one-touch LED control for easy fingertip operation

• Compatible with boats 18 to 29 feet in length

• Designed for quick and simple installation with transom mounting options
