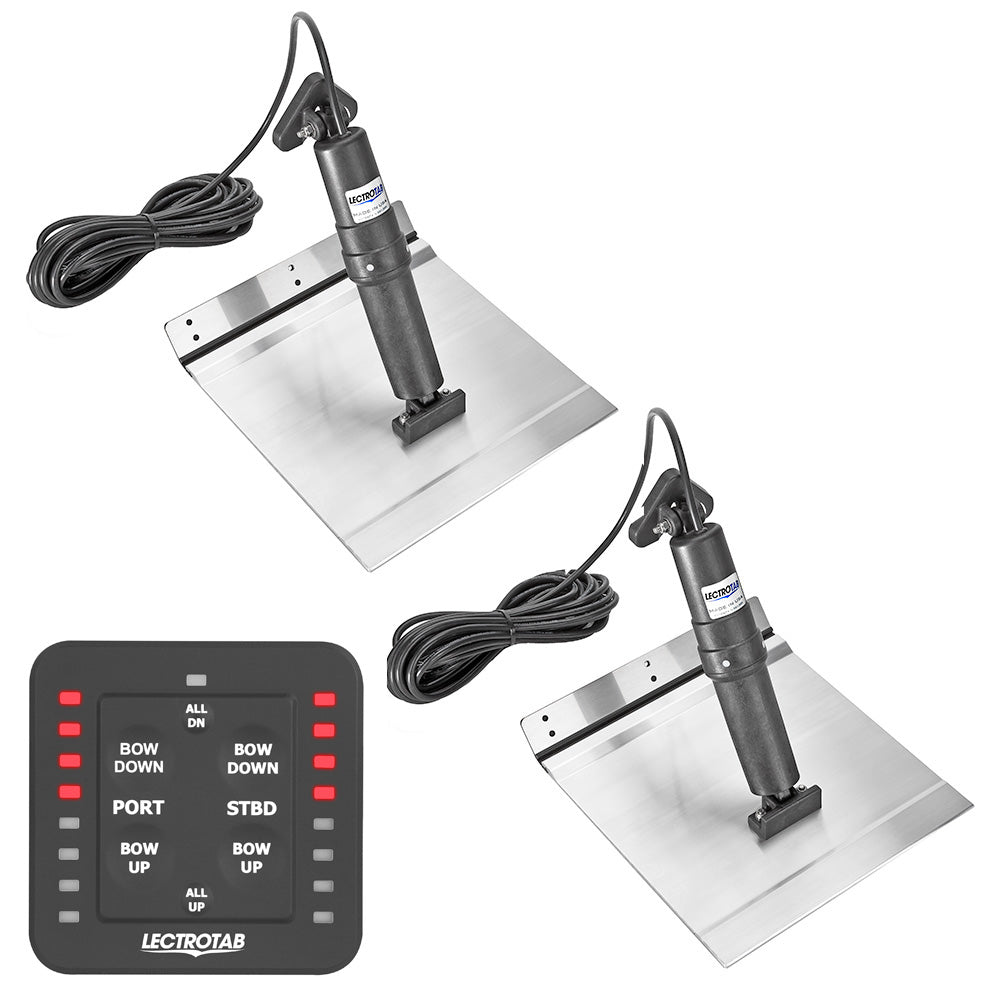

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 12 Inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed specifically for aluminum-hulled boats, offering an economical and reliable solution for precise boat trim adjustments. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide a durable, corrosion-resistant surface sealed with a high-quality epoxy coating to withstand harsh aquatic environments. The kit includes two sturdy aluminum alloy tabs, each measuring 9 inches by 12 inches, capable of providing significant lift and improved boat handling.

Each trim tab features a "no break" polypropylene hinge tested over 300,000 cycles to ensure longevity and reliability, even under demanding conditions. The internal pressure equalization system and sealed upper ram prevent damage from fouling or barnacle growth, ensuring smooth operation over time. The actuators, powered by 12-volt DC, are fully load tested to push up to 1,000 pounds of force, delivering maximum lift with minimal noise thanks to their quiet operation design. The external, non-metallic housing prevents corrosion and deterioration from sun exposure or water contact, maintaining performance and appearance throughout the boat's lifespan.

The included one-touch LED control provides easy, precise management of your trim tabs, allowing for quick adjustments at the touch of a button. The control unit is compact and mounts conveniently on your boat's dash with a 3-inch by 3-inch footprint, compatible with standard mounting holes. The kit also includes two actuators with 23-foot cables, providing flexible installation options, along with comprehensive instructions for easy setup. This self-contained, maintenance-free system eliminates the need for hydraulic oil, reducing potential leaks and simplifying upkeep, making it ideal for boaters seeking durability, efficiency, and ease of use in their trim control system.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location protected from fouling and barnacles

• Utilizes internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted movement during operation or backing down

• Quiet operation for smooth adjustments

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external housing resists corrosion and deterioration from sun and water exposure
