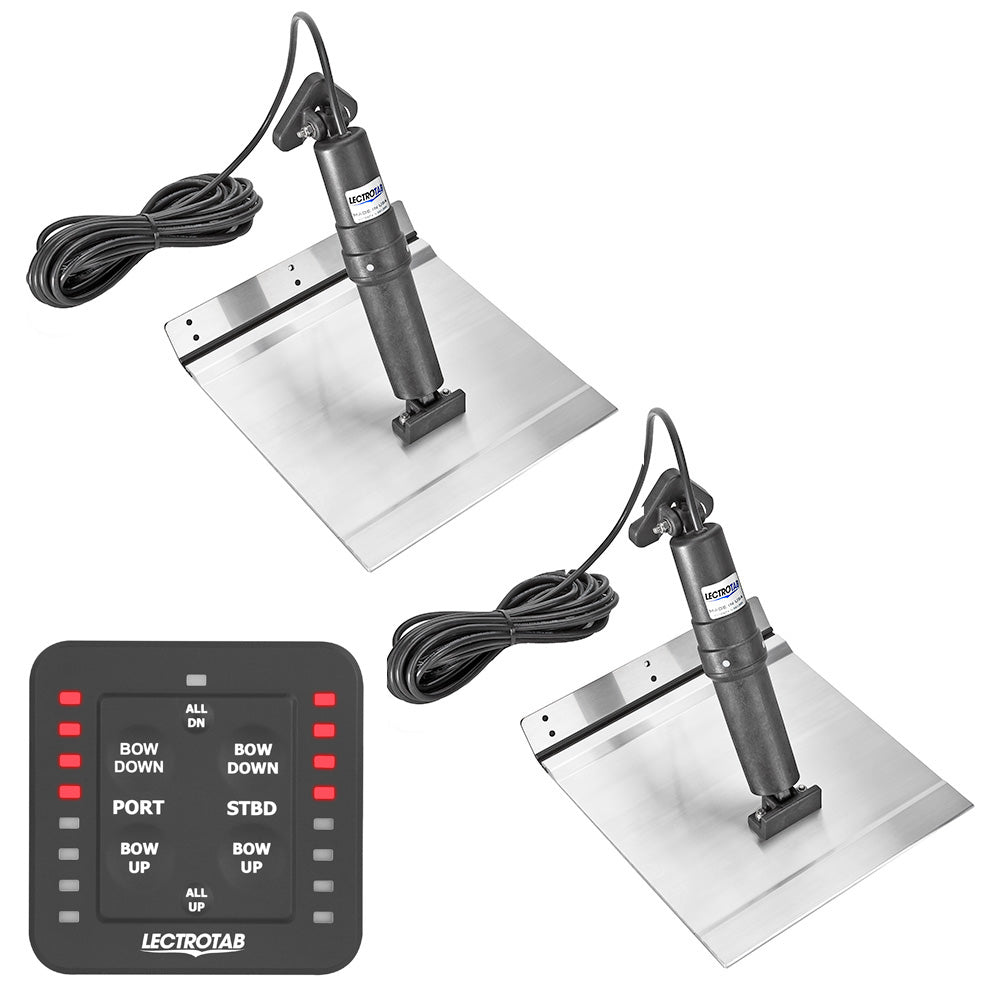

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 18 inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA aluminum alloy trim tab kit is designed to enhance boat stability and maneuverability for vessels ranging from 21 to 30 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide durability and corrosion resistance, making them ideal for both freshwater and saltwater environments. The kit includes two aluminum alloy tabs sealed with a corrosion-resistant epoxy coating, ensuring long-lasting performance. Each tab features a no-break polypropylene hinge tested over 300,000 cycles, offering reliable operation without failure even under repeated use.

The kit is equipped with precision-engineered DC actuators that deliver quiet operation and highly accurate positioning. These actuators are capable of exerting up to 1,000 pounds of force and include internal pressure equalization and brake systems to prevent unwanted movement. The external structure is non-metallic, eliminating corrosion concerns and ensuring durability in harsh conditions. Installation is straightforward, as the actuator assembly is fully sealed in a non-metallic housing, and no components need to be installed inside the boat.

Control is simplified with the one-touch leveling LED control, allowing boat operators to adjust trim with ease. The control unit is compact, measuring 3 inches by 3 inches, and mounts conveniently on the transom. The system operates on 12-volt DC power, with a cable length of 23 feet, providing flexibility in boat layout. The trim tabs are suitable for boats with a length of 21 to 30 feet, offering maximum lift and stability to improve overall handling and ride comfort. The kit includes everything needed for installation: two aluminum alloy tabs, two actuators with cables, a one-touch control, and an instruction manual. This product is sold as a complete kit, ensuring you have all necessary components for a professional-quality upgrade.

For more detailed installation instructions and maintenance guidance, refer to the official owner’s manual available online. The Lectrotab XKA aluminum alloy trim tab kit is an economical, maintenance-free solution that offers reliable performance, corrosion resistance, and precise control, making it an excellent choice for serious boaters seeking enhanced maneuverability and safety on the water.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for durability

• Equivalent strength to 10 gauge stainless steel for reliable performance

• "No Break" polypropylene hinge tested over 300,000 cycles for longevity

• Upper ram seal location protected from damage due to fouling or barnacles

• Internal pressure equalization system to ensure smooth operation

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push up to 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in harsh environments

• Compatible with boats from 21 to 30 feet in length

• Includes one-touch LED control for easy trim adjustments

• Complete kit with two aluminum alloy tabs, two actuators, cables, and manual
