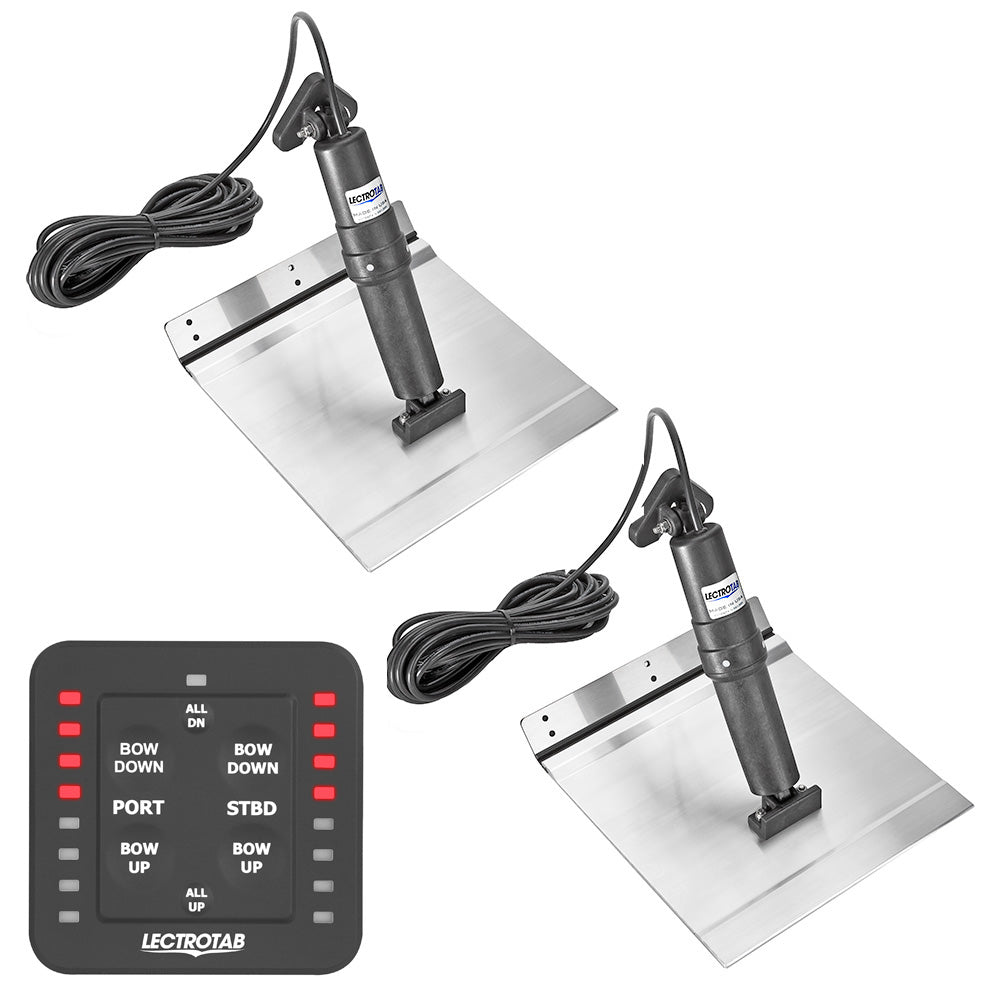

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 24 Inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is specifically designed for aluminum-hulled boats, offering an economical yet reliable solution for precise boat handling. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide exceptional strength and durability, capable of withstanding harsh marine environments. The kit features corrosion-resistant epoxy coating and a no-break polypropylene hinge tested over 300,000 cycles, ensuring long-lasting performance and reliability. The aluminum structure is non-metallic, preventing deterioration from sun exposure or water, while the high-strength materials ensure reliable lift and control during navigation. The integrated actuator system is maintenance-free, sealed within a non-metallic housing, and capable of exerting up to 1,000 pounds of force for maximum lift. Its internal pressure equalization and brake system prevent unwanted movement, offering smooth and quiet operation whether cruising or backing down. The 12-volt DC actuator has a stroke length of 2.25 inches and includes a 23-foot cable for flexible installation options. The kit also includes two aluminum alloy tabs, a one-touch LED control for easy operation, and detailed instructions, making installation straightforward. Designed for boats ranging from 24 to 37 feet, this trim tab kit enhances boat stability and performance with minimal maintenance. The one-touch control system provides quick and accurate adjustments, allowing boaters to optimize their vessel's trim with ease. Whether upgrading existing trim tabs or installing on a new vessel, the Lectrotab XKA Aluminum Alloy Trim Tab Kit offers a durable, corrosion-resistant, and efficient solution for improved boat handling and safety.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure

• Upper ram seal location protected from damage due to fouling or barnacle growth

• Internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation for unobtrusive performance

• Actuators fully load tested to push 1,000 lbs of force

• Non-metallic external structure resistant to corrosion and deterioration from UV exposure
