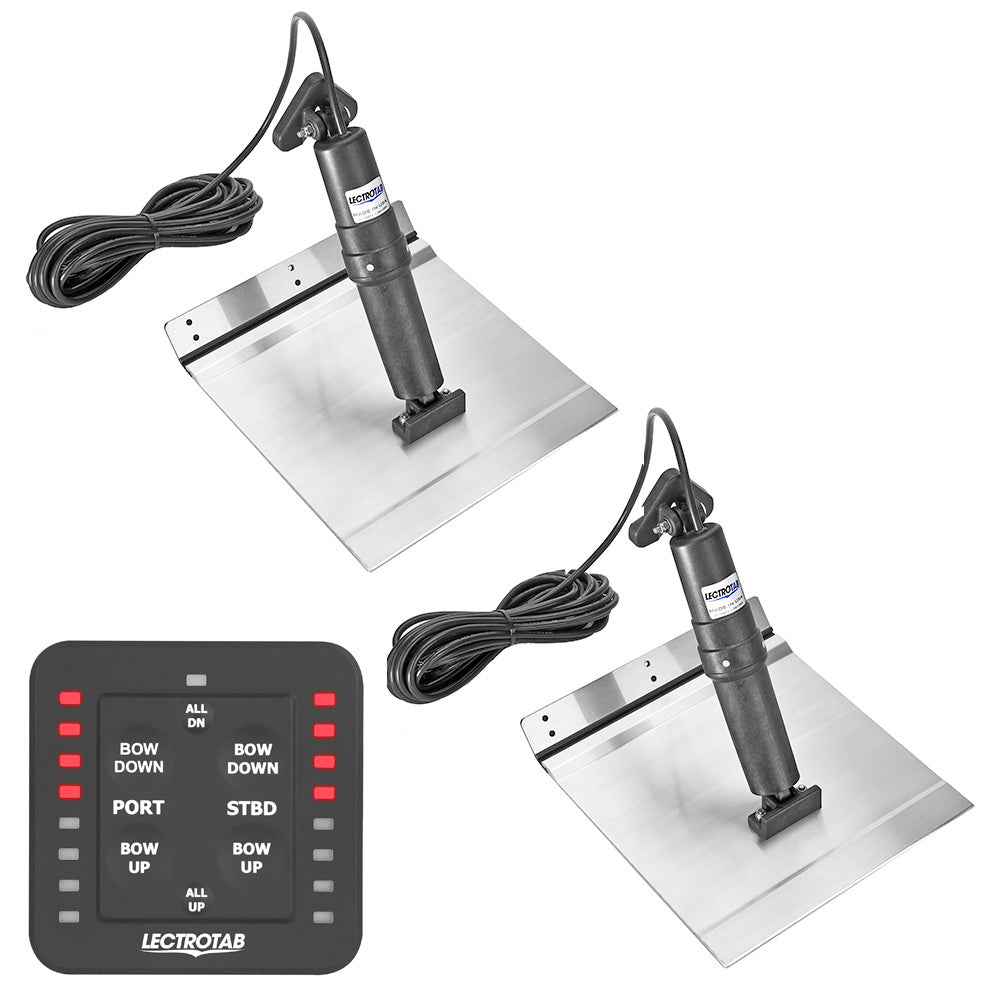

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 9 inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is specifically designed for aluminum-hulled boats, offering an economical and reliable solution to optimize your vessel's performance. Crafted from marine-grade 6005-T5 aluminum alloy, each trim tab features a corrosion-resistant epoxy coating that ensures durability in harsh marine environments. The 9 x 9 inch size makes this kit suitable for boats ranging from 14 to 19 feet, providing maximum lift and precise control for improved handling and stability. The kit includes two aluminum alloy tabs, each with a no-break polypropylene hinge tested over 300,000 cycles, ensuring long-lasting operation without failure. The tabs are sealed with a high-strength epoxy, and their design prevents damage to seals even when fouled by barnacles or debris, thanks to an internal pressure equalization system. The actuator assembly is housed in a non-metallic, sealed structure that is corrosion-proof and maintenance-free, eliminating concerns about hydraulic leaks or oil spills. Equipped with internal brake systems and capable of exerting up to 1,000 pounds of force, these actuators operate quietly and efficiently, providing smooth and accurate tab positioning. The kit is compatible with 12-volt DC power and includes a 23-foot cable for flexible installation. The convenient one-touch leveling LED control allows for effortless adjustments at the helm, giving you complete command over your trim tabs. Installation is straightforward with the included transom mounting brackets, and no components need to be installed inside the boat, reducing complexity. Whether you're looking to improve performance, fuel efficiency, or handling, the Lectrotab XKA Aluminum Alloy Trim Tab Kit offers a durable, maintenance-free, and easy-to-operate solution for your boat. For additional guidance, consult the included instruction manual available online. Please note that this product is sold as a kit and may not be returned to the original point of purchase; contact the manufacturer directly for any issues or concerns.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• No-break polypropylene hinge tested over 300,000 cycles

• Upper ram seal location protected from damage due to fouling or barnacles

• Internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted movement during operation

• Quiet, smooth operation with minimal noise

• Actuators fully load tested to push 1,000 lbs of force

• Non-metallic external structure resistant to corrosion and deterioration

• Includes one-touch LED control for easy, precise adjustments
