SKU:96300

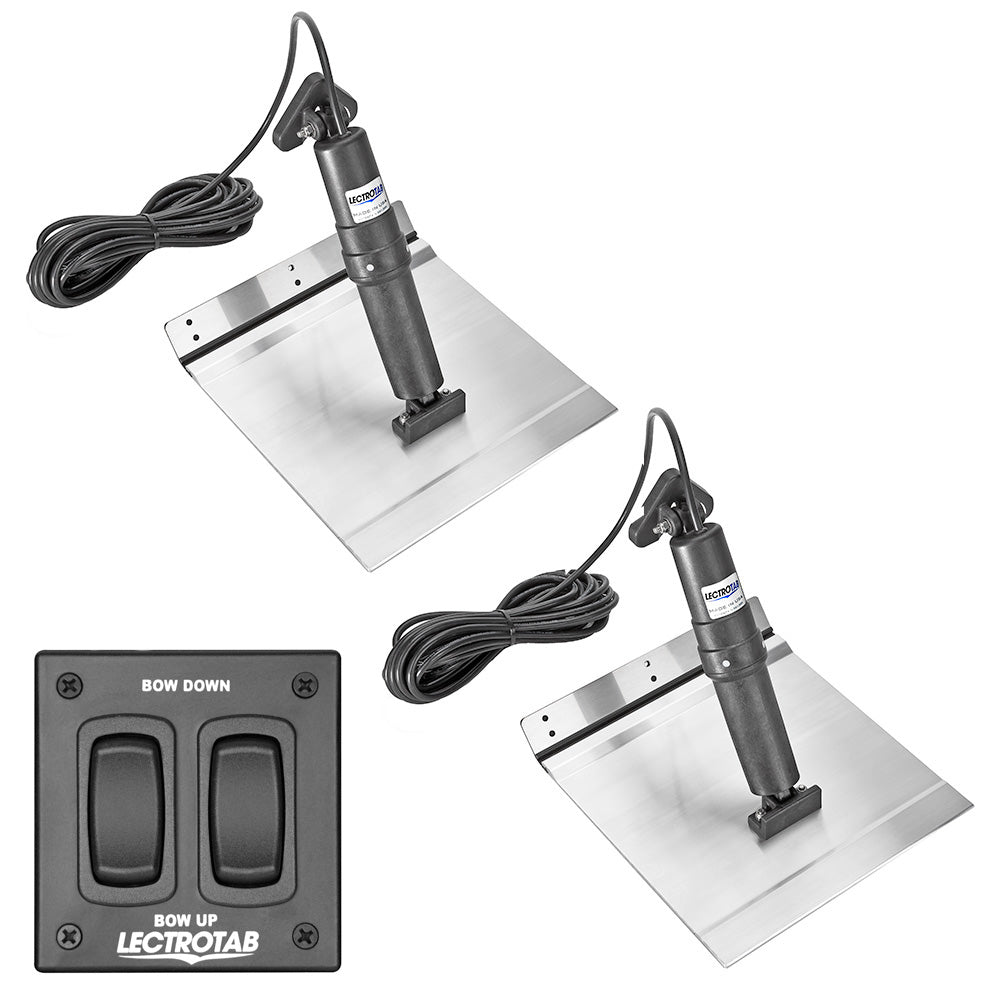

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12 Inches

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12 Inches

Regular price $763.30 USD
Sale price $763.30 USD Regular price
Sale Sold out
Shipping calculated at checkout.

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

  • All Tabs sealed with a corrosive resistant epoxy coating
  • Equivalent strength to 10 gauge stainless steel
  • "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
  • Boat Length - 18' to 32' (5.5 to 9.5 M)
  • Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length - 23' (7 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
  • Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
  • Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

  • One (1) Flat Rocker Switch
  • Two (2) Aluminum Alloy tabs
  • Two (2) actuators w/23' (7 M) cables
  • Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for boats ranging from 18 to 32 feet, offering an efficient and durable solution for precise boat leveling and performance enhancement. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide excellent strength and corrosion resistance, making them suitable for both freshwater and saltwater use. The kit includes two aluminum alloy tabs, each measuring 12 inches by 12 inches, and is ideal for aluminum-hulled boats seeking an economical yet reliable trim adjustment system.

Each aluminum tab features a "no-break" polypropylene hinge tested over 300,000 cycles to withstand repeated use without failure, ensuring long-term durability. The tabs are sealed with a corrosion-resistant epoxy coating that protects against marine elements and barnacle growth. The system utilizes a precision-engineered actuator capable of exerting up to 1,000 pounds of force, providing maximum lift and accurate positioning for optimal boat performance. The actuator housing is non-metallic and permanently sealed, eliminating the risk of oil leaks common in hydraulic systems and ensuring maintenance-free operation. An internal pressure equalization system and brake mechanism prevent unwanted movement during operation or backing down, enhancing safety and control.

The kit includes a flat rocker switch with improved sealing and a recessed design to prevent water entry and damage. The switch features an "instant stop" circuit to prevent actuator over-run when released. The setup supports a 12-volt DC power supply, with the switch operating at either 12 or 24 volts, and comes with a 23-foot cable for flexible installation. The compact design and easy mounting make this trim tab kit suitable for a wide range of boat configurations, providing quiet operation and reliable performance. Whether upgrading existing trim tabs or installing new ones, the Lectrotab XKA kit offers a robust, self-contained solution that enhances your boat’s handling and stability.

In the box, you will find the two aluminum alloy trim tabs, two actuators with cables, a flat rocker switch, and an instruction manual for straightforward installation. This kit is an excellent choice for boat owners seeking a maintenance-free, corrosion-resistant trim tab system that combines strength, precision, and ease of use. For detailed installation instructions, refer to the manual available online. Please note, this product is sold as a kit and is not eligible for return to the point of purchase; contact the manufacturer directly for support or warranty concerns.

Features:

  • All tabs sealed with a corrosion-resistant epoxy coating
  • Equivalent strength to 10 gauge stainless steel
  • "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure
  • Upper ram seal location designed to prevent damage from fouled rams or barnacle growth
  • Utilizes internal pressure equalization system for consistent operation
  • Internal brake system prevents unwanted tab movement during operation or backing down
  • Quiet operation for minimal noise disturbance
  • Actuators are fully load tested to push up to 1,000 lbs of force
  • Non-metallic external structure resists corrosion and deterioration in sun and water exposure

Only 2 piece in stock!


View full details
