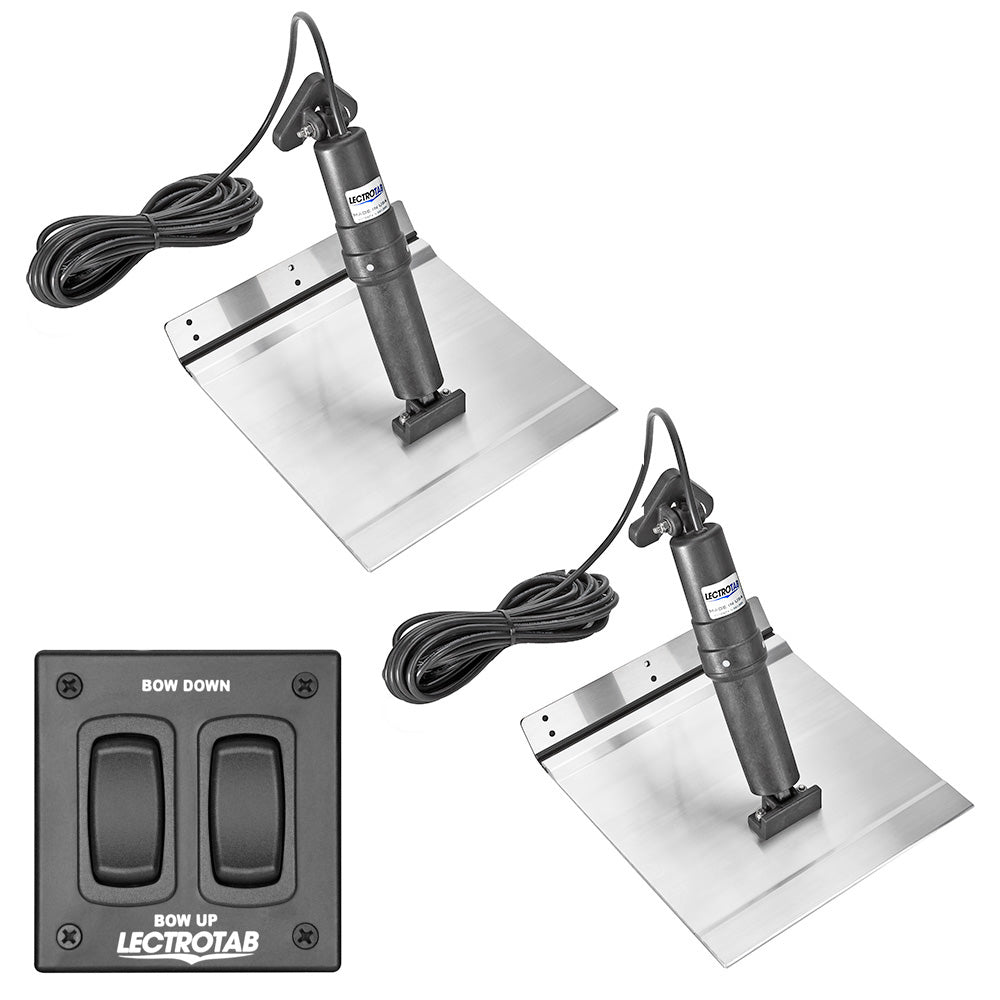

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 9 Inches for Boats 18-29 Feet

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit combines durability and precision for boats ranging from 18 to 29 feet. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are designed to provide maximum lift and reliable performance in harsh marine environments. Each tab features a corrosion-resistant epoxy coating, ensuring long-term resistance against water and salt exposure. The aluminum alloy construction offers an equivalent strength to 10-gauge stainless steel, making it a robust choice for maintaining optimal boat handling and stability.
All aluminum tabs are equipped with a no-break polypropylene hinge tested over 300,000 cycles, demonstrating exceptional durability and flexibility. The upper ram seal placement prevents damage from fouling or barnacle growth, while the internal pressure equalization system ensures consistent operation. The internal brake system prevents unwanted movement during transit or backing, providing safe and controlled adjustments. The actuator's design is maintenance-free, with a sealed non-metallic housing that eliminates hydraulic oil leaks and corrosion risks. Capable of exerting up to 1,000 pounds of force, the actuators are fully load tested to withstand demanding conditions.
This kit includes two aluminum alloy trim tabs, two actuators with 23-foot cables, and a flat rocker switch with enhanced sealing and recessed design for water resistance and durability. The switch's
