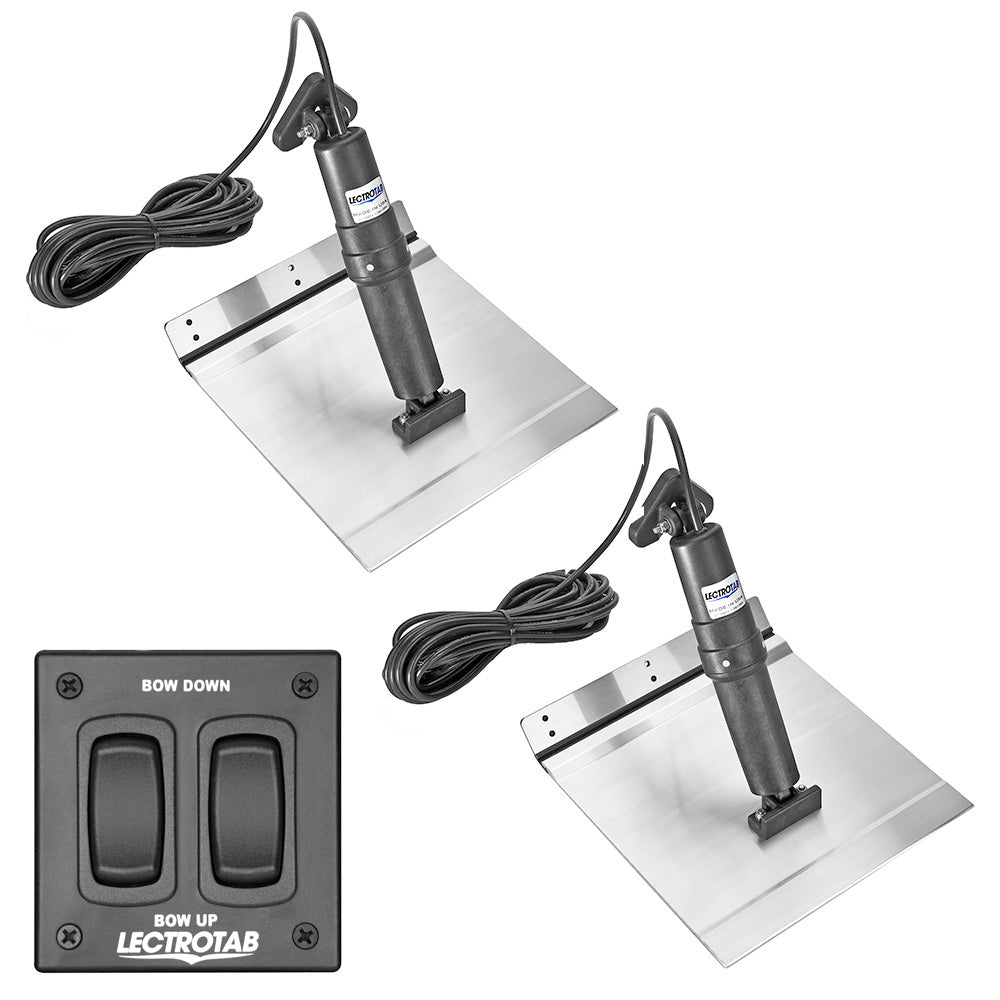

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 12 inches

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for boats with aluminum hulls, offering an economical and reliable solution for vessel stabilization and control. Each trim tab is constructed from marine-grade 6005-T5 aluminum alloy, providing durability and corrosion resistance perfect for marine environments. The kit includes two aluminum alloy tabs sealed with a protective epoxy coating, ensuring long-lasting performance even in harsh conditions. The strong "no-break" polypropylene hinge, tested over 300,000 cycles, guarantees durability and reliable operation without failure. The upper ram seal location is designed to prevent damage from fouling or barnacle growth, maintaining smooth functionality over time. The internal pressure equalization system and internal brake prevent unwanted movement during operation and backing down, while the fully load-tested actuators can push up to 1000 lbs of force for maximum lift. The non-metallic external structure resists corrosion, sun deterioration, and water damage, making it ideal for a variety of marine applications. The actuator operates on 12 V DC power and features a stroke length of 2.25 inches, with a cable length of 23 feet for flexible installation. The included flat rocker switch is sealed to prevent water entry and features a recessed design to avoid damage, providing a reliable control interface with an instant stop circuit to prevent over-run. This kit is suitable for boats ranging from 16 to 25 feet long, making it an excellent upgrade for recreational and fishing vessels seeking enhanced control and stability. The package includes two aluminum alloy trim tabs, two actuators with cables, a flat rocker switch, and an instruction manual, providing everything needed for a straightforward installation. The XKA trim tab kit offers a maintenance-free, corrosion-resistant solution with quiet operation, maximum lift, and dependable performance in saltwater and freshwater environments. Please consult the included manual for detailed installation instructions and operational guidance, ensuring optimal performance of your boat's trim system.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles

• Upper ram seal location protected from fouling and barnacles

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement

• Quiet operation for smooth adjustments

• Actuators fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and sun damage
