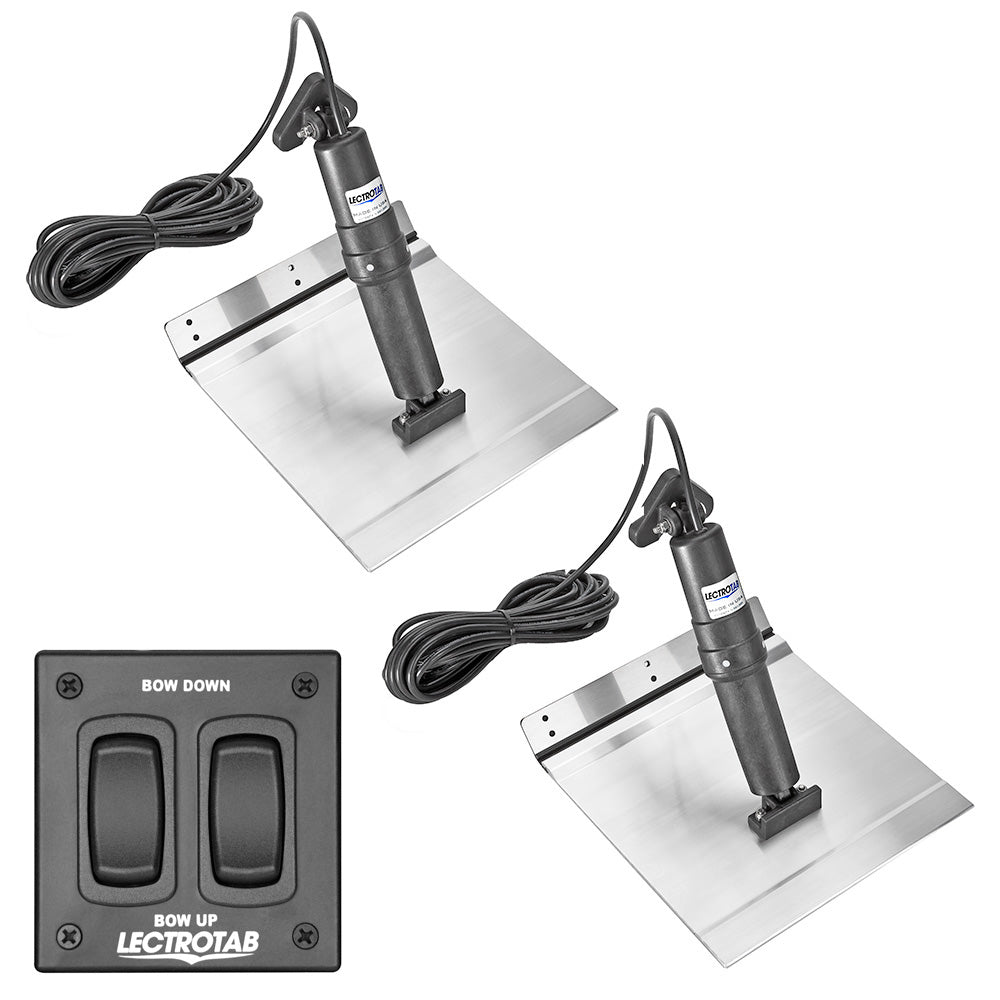

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch – 9 x 18 Inches for Boats 21-30 Feet

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed specifically for aluminum-hulled boats, offering an economical and durable solution for vessels measuring 21 to 30 feet in length. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs provide the strength and corrosion resistance needed for reliable performance in harsh marine environments. The kit includes two aluminum alloy tabs sealed with a corrosion-resistant epoxy coating, ensuring longevity and protection against the elements. Each tab features a "no-break" polypropylene hinge, tested over 300,000 cycles to withstand repeated use without failure, and is designed to deliver equivalent strength to 10-gauge stainless steel. The upper ram seal location is protected from damage caused by barnacles or fouling, maintaining consistent operation over time. The integrated internal pressure equalization system and brake mechanism prevent unwanted movement during operation and backing down, ensuring precise control and safety. The actuator assembly operates quietly, is fully load-tested to push up to 1,000 pounds of force, and is housed in a non-metallic, corrosion-proof enclosure that does not deteriorate under sun or water exposure. This maintenance-free, non-hydraulic system eliminates the risk of oil leaks common in hydraulic trim tabs and features a 2.25-inch stroke length with a 12-volt DC actuator, compatible with a 23-foot cable for flexible installation. The kit includes a rugged flat rocker switch with improved sealing, recessed design, and instant stop circuit for precise tab positioning. The switch dimensions are 3.125 inches wide by 3.25 inches high, fitting standard mounting holes. The entire package offers an easy-to-install, reliable trim tab system that enhances boat stability and handling. The kit is complete with two actuators, two aluminum alloy tabs, a rocker switch, and detailed instructions, providing everything needed for a professional-grade upgrade. For detailed installation and operation instructions, consult the owner’s manual available online. Trust the Lectrotab XKA Aluminum Alloy Trim Tab Kit for a durable, maintenance-free solution that will improve your boat’s performance and safety in various marine conditions.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No break" polypropylene hinge tested over 300,000 cycles

• Upper ram seal location protected from damage caused by fouling

• Internal pressure equalization system ensures consistent operation

• Internal brake system prevents unwanted tab movement

• Quiet operation for smooth adjustments

• Actuators fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration
