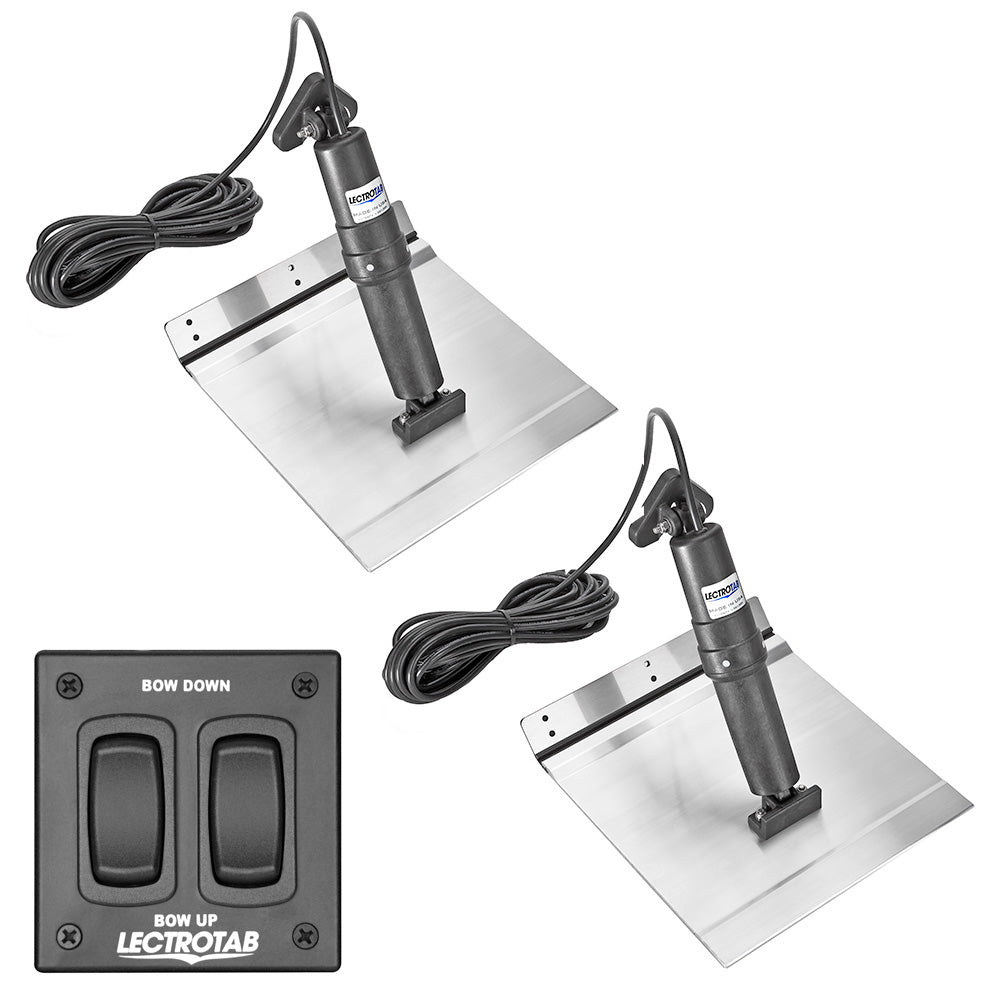

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch – 9 x 24 inches

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed specifically for aluminum-hulled boats, offering a reliable and economical solution for vessel control and stability. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are built to withstand harsh marine environments. Each tab features a corrosion-resistant epoxy coating that ensures durability and longevity, even after extended exposure to saltwater and sunlight. The kit includes two aluminum alloy tabs, each measuring 9 inches by 24 inches, providing maximum lift force and precise control for boats ranging from 24 to 37 feet in length. The tabs are equipped with a high-strength "no-break" polypropylene hinge, tested over 300,000 cycles to ensure durability and flexibility without failure. This hinge is designed to handle a 90-degree bend, ensuring long-lasting performance under regular use. The upper ram seal location is protected from damage caused by fouling or barnacle growth, enhancing reliability over time. The internal pressure equalization system maintains consistent operation, while the internal brake system prevents unwanted tab movement during underway or backing down. The actuators are fully load tested to push up to 1,000 pounds of force, providing strong and quiet operation. These non-metallic external structures eliminate corrosion concerns, ensuring the system remains maintenance-free and functional in harsh marine conditions. The kit also features a precision-engineered actuator with a 2.25-inch stroke length, a 12-volt DC power supply, and a 23-foot cable length for flexible installation options. The included flat rocker switch is designed with improved sealing and a recessed rocker to prevent damage, featuring an "instant stop" circuit that prevents actuator over-run when released. The switch dimensions are 3.125 inches by 3.25 inches, with a mounting hole cutout of 2.25 inches by 2 inches. This comprehensive kit simplifies installation, delivering maximum lift, accurate positioning, and quiet operation to enhance your boat's performance and handling. The package includes one rocker switch, two aluminum alloy trim tabs, two actuators with cables, and an instruction manual for easy setup. Please note, this product is sold as a kit and may not be returned to the point of purchase. For any issues or concerns, contact the manufacturer directly using the provided owner’s manual link.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location protected from fouling and barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement

• Quiet operation with high-force actuator

• Actuators are load tested to push 1,000 lbs of force

• Non-metallic external structure prevents corrosion and deterioration in sun or water

• Includes a flat rocker switch with improved sealing and "instant stop" circuit

• Kit includes two aluminum alloy trim tabs, two actuators with cables, and a rocker switch
