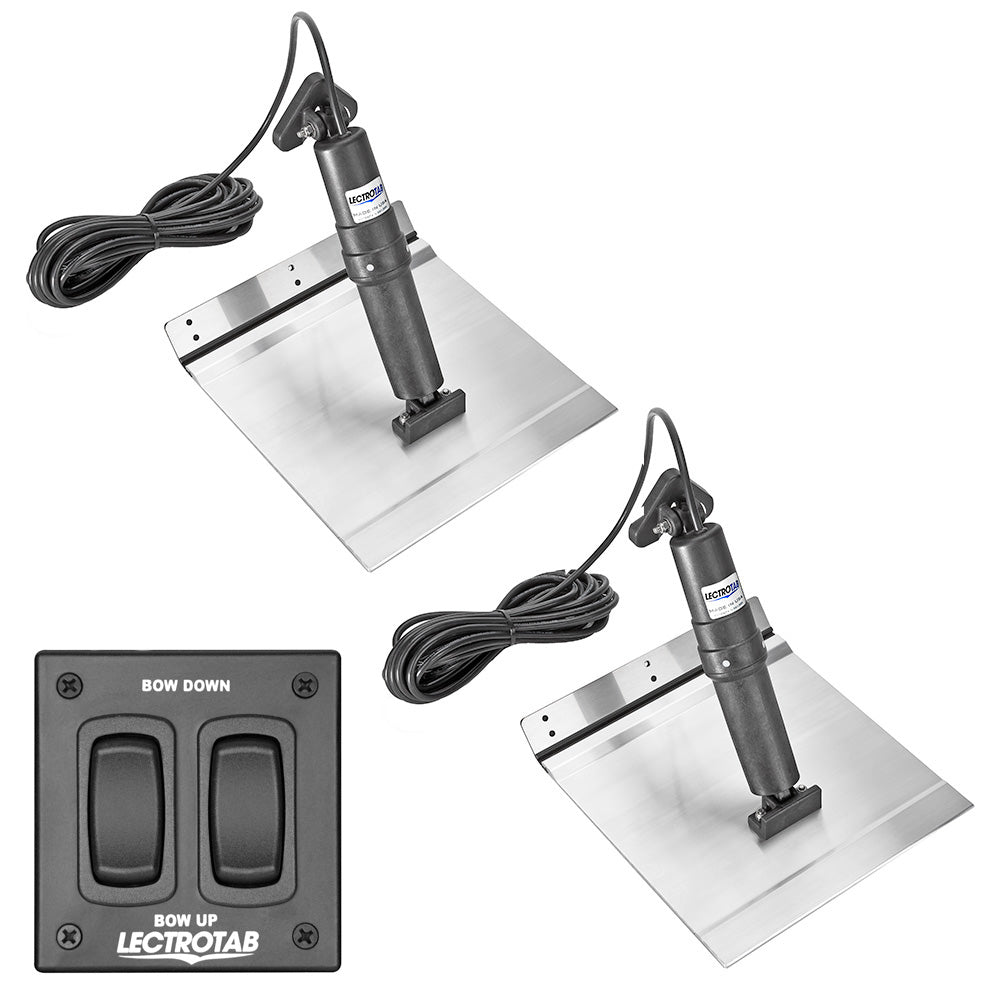

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 9 inches for Boats 14-19 ft

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch is designed specifically for aluminum-hulled boats ranging from 14 to 19 feet, providing a reliable and maintenance-free solution for optimal boat performance. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs offer high strength and corrosion resistance, making them suitable for both freshwater and saltwater environments. The kit includes two aluminum alloy tabs sealed with a durable epoxy coating, ensuring long-lasting durability and protection against the elements. The tabs feature a "no break" polypropylene hinge tested over 300,000 cycles, guaranteeing reliable operation over time. The upper ram seal is protected from damage caused by fouled rams or barnacle growth, ensuring smooth and consistent movement. The integrated internal pressure equalization system prevents water intrusion, while the internal brake system secures the tabs in place during operation or when backing down. The actuator assembly, powered by a 12 V DC motor, provides a stroke length of 2.25 inches and is capable of exerting forces up to 1,000 pounds, delivering maximum lift force for precise control. Its sealed, non-metallic housing prevents corrosion and eliminates the need for internal components inside the boat, simplifying installation and reducing maintenance. The kit also includes a flat rocker switch with enhanced sealing and a recessed design to prevent damage, along with an instant stop circuit to prevent actuator over-run. The compact 9-inch by 9-inch trim tabs are suitable for boats with a length of 14 to 19 feet, ensuring optimal trim and stability. The package contains two actuators with 23-foot cables, two aluminum alloy tabs, a flat rocker switch, and an instruction manual for easy installation and operation. This product is sold as a complete kit, providing everything needed for efficient and reliable trim tab operation. Please note that returns are not accepted at the point of purchase; for any issues, contact the manufacturer directly. For detailed installation guidance, refer to the included manual available online.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Constructed from marine-grade 6005-T5 aluminum alloy for strength and durability

• "No break" polypropylene hinge tested over 300,000 cycles for longevity

• Upper ram seal prevents damage from fouling or barnacles

• Internal pressure equalization system ensures reliable operation

• Internal brake system prevents unwanted tab movement

• Quiet operation for a smooth boating experience

• Actuators are load tested to push up to 1,000 lbs of force

• Non-metallic external structure resists corrosion and sun deterioration

• Includes a sealed flat rocker switch with instant stop circuit
