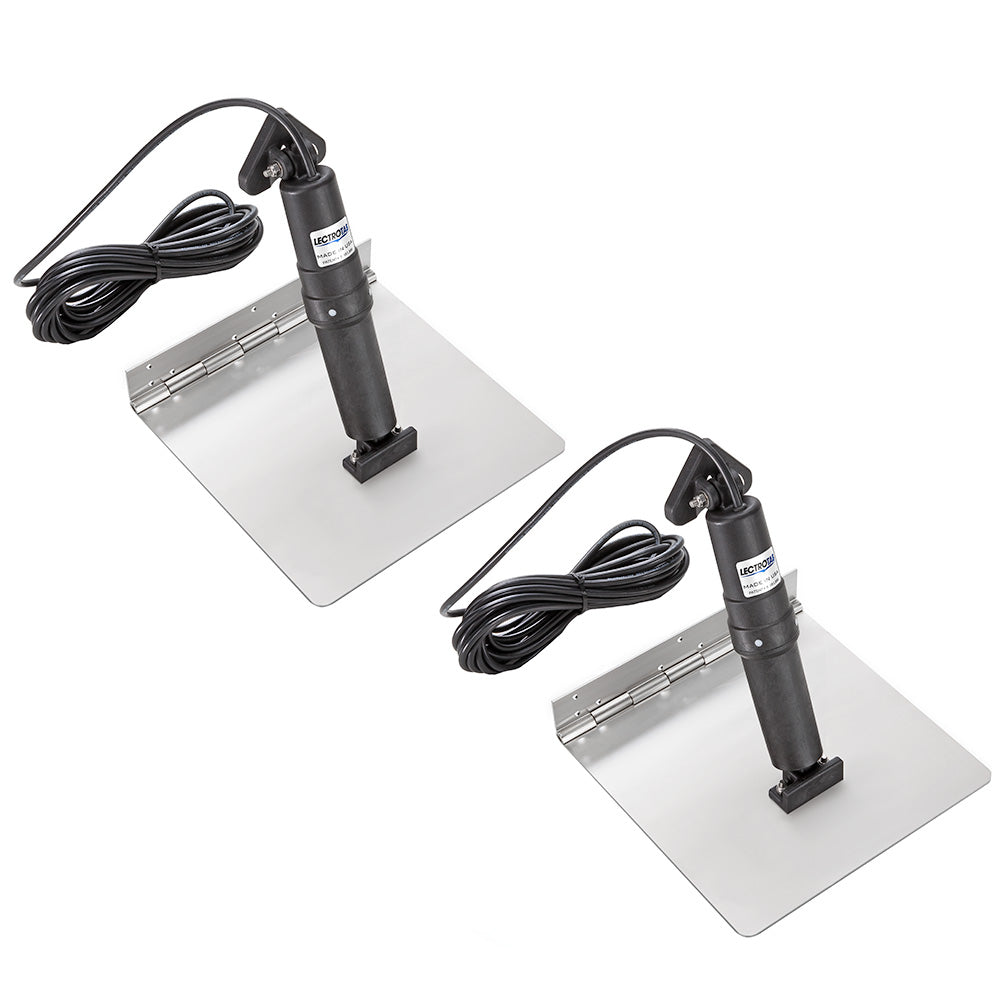

Lectrotab XKA Stainless Steel Trim Tab - 12 x 12 inches for Boats 18 to 32 feet

XKA Stainless Steel Trim Tab - 12 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Stainless Steel Trim Tab offers exceptional strength and durability for marine applications. Crafted from 12-gauge 304 stainless steel, this 12 x 12-inch trim tab is designed to enhance boat performance and stability. Its continuous rolled and pinned hinge provides added strength and eliminates the need for welding, ensuring a reliable and maintenance-free operation. The corrosion-resistant construction guarantees longevity even in harsh water conditions, making it ideal for boats ranging from 18 to 32 feet in length. The kit includes two stainless steel tabs and two high-quality actuators with 23-foot cables, facilitating easy installation and operation. The precision-engineered actuator delivers smooth, quiet movement and can exert up to 1,000 pounds of force, ensuring maximum lift and precise positioning. An internal pressure equalization system and an internal brake prevent unwanted movement, providing stability during operation. The actuator's sealed, non-metallic housing prevents corrosion and eliminates oil leaks common with hydraulic systems. The vertical height of the actuator is approximately 12 inches with a stroke length of 2.25 inches, suitable for most transom configurations. Designed for simplicity, this trim tab system does not require components to be installed inside the boat, simplifying maintenance and inspection. Please note that a control switch is not included, and the product is sold individually. For detailed installation instructions, consult the included manual available online. Enhance your vessel's performance with the Lectrotab XKA Stainless Steel Trim Tab, engineered for strength, reliability, and ease of use in demanding marine environments.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation ensures minimal noise disturbance

• Actuators are fully load tested to push 1000 lbs of force for maximum performance

• Non-metallic external structure resists corrosion and deterioration from sun exposure or water
