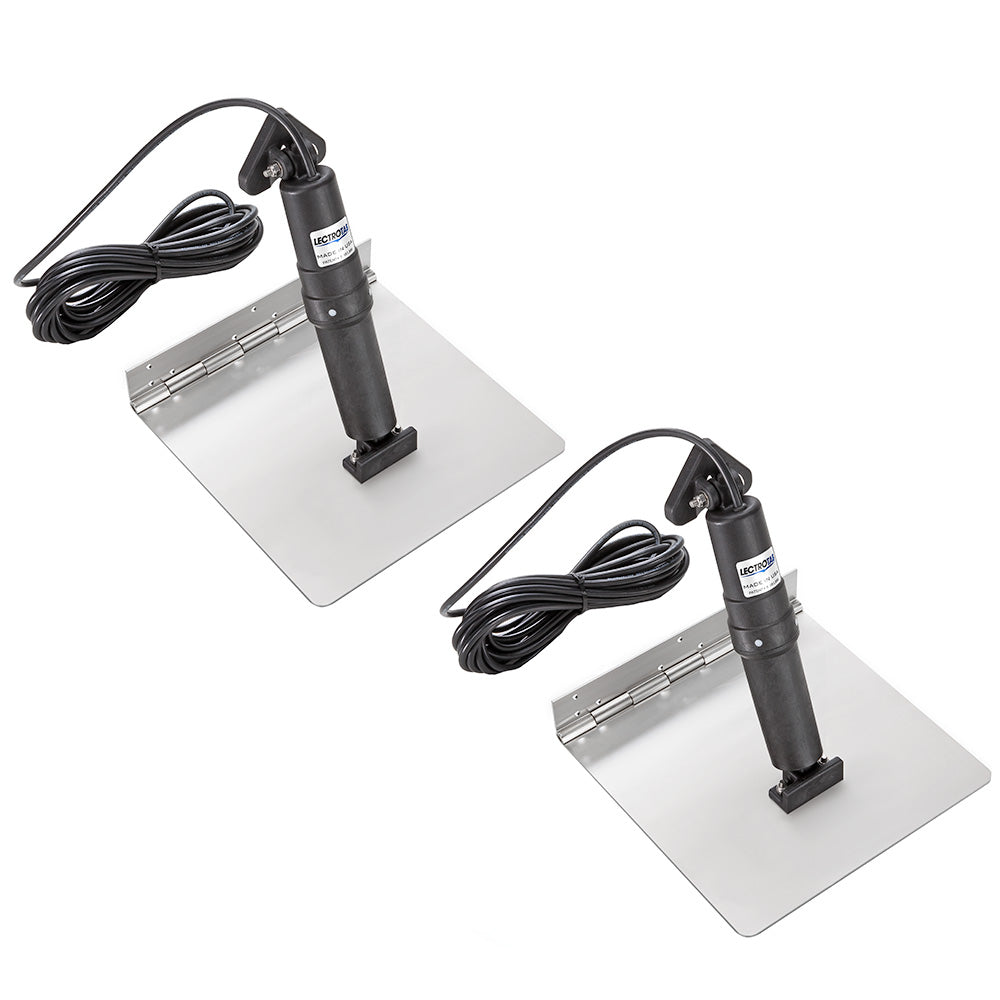

Lectrotab XKA Stainless Steel Trim Tab 12 x 24 for Boats 28 to 48 Feet

XKA Stainless Steel Trim Tab - 12 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Stainless Steel Trim Tab (Part Number: XKA12X24) is engineered for durability and precision performance on boats ranging from 28 to 48 feet. Crafted from 12-gauge, 304 stainless steel, this trim tab offers exceptional strength and corrosion resistance, making it ideal for both freshwater and saltwater applications. The design features a continuous rolled and pinned hinge that eliminates the need for welding, ensuring a reliable and maintenance-free operation. The trim tab's robust construction provides maximum lift force and precise positioning, contributing to improved boat handling and fuel efficiency. Its corrosion-free external structure is unaffected by sun exposure or water, ensuring long-term durability in harsh marine environments.

The actuator is a key component of this system, combining quiet operation with a non-hydraulic, sealed housing that requires no internal components to be installed inside the boat. It is rated to push up to 1,000 pounds of force, with a stroke length of 2.25 inches and a cable length of 23 feet, facilitating flexible installation options. The actuator's internal pressure equalization system and brake mechanism prevent unwanted movement during operation or backing down, enhancing safety and control. The actuator operates on 12-volt DC power and is compatible with standard or low-profile transom mounting brackets, providing versatility for different boat configurations.

This kit includes two stainless steel trim tabs, two actuators with 23-foot cables, and an instruction manual for straightforward installation. The external non-metallic housing ensures the actuator remains corrosion-free, and the internal design prevents damage from fouling or barnacle growth. This product is sold individually; control switches are not included. For detailed installation guidance, refer to the provided owner's manual available online. The Lectrotab XKA Stainless Steel Trim Tab is an essential upgrade for boaters seeking reliable, maintenance-free trim control that ensures optimal performance and longevity in demanding marine environments.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation ensures minimal noise during use

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
