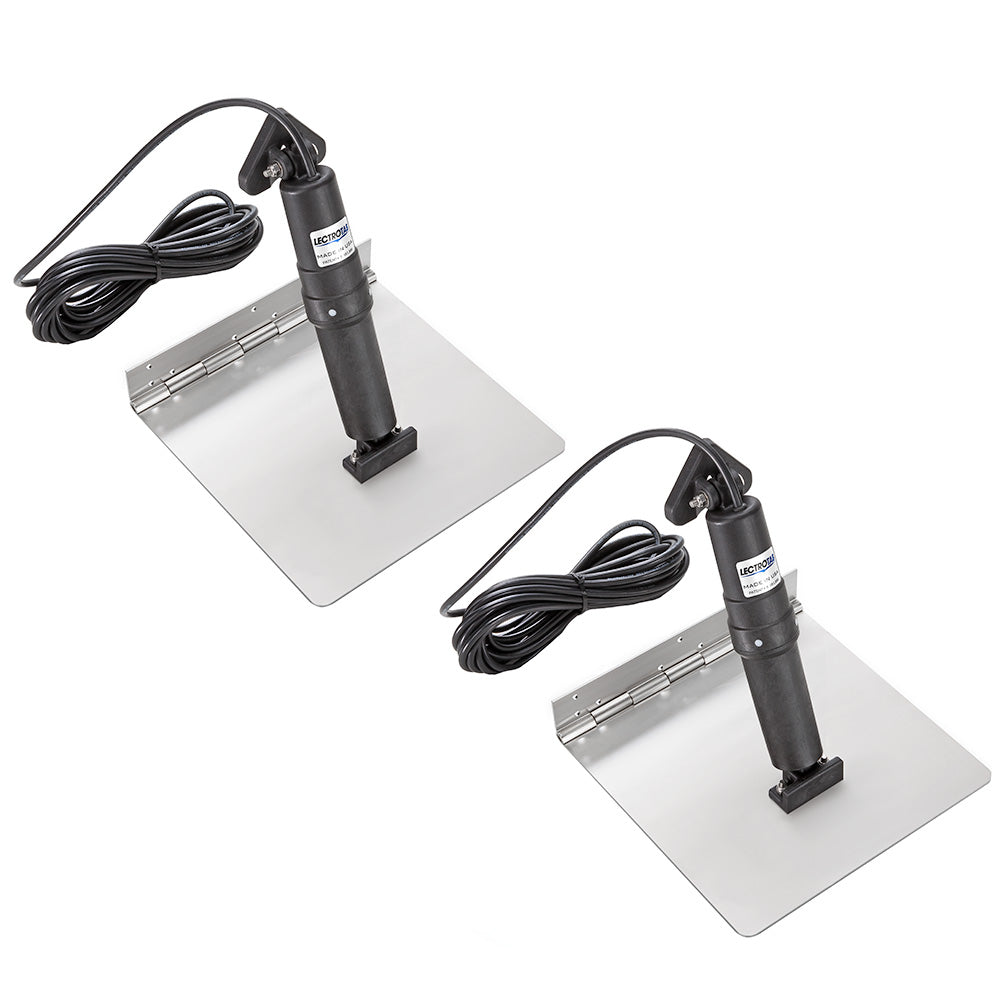

Lectrotab XKA Stainless Steel Trim Tab - 12 x 9 inches for Boats 18 to 29 Feet

XKA Stainless Steel Trim Tab - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Stainless Steel Trim Tab measures 12 inches by 9 inches, making it an ideal choice for boats ranging from 18 to 29 feet. Crafted from durable 12-gauge 304 stainless steel, this trim tab offers unmatched strength, corrosion resistance, and longevity. Its continuous rolled and pinned hinge design eliminates the need for welding, providing a seamless and reliable connection that enhances overall durability and ease of installation. This design ensures the trim tab can withstand harsh marine environments without compromising performance or structural integrity. The kit includes two stainless steel tabs and two actuators with 23-foot cables, allowing for flexible mounting options and straightforward setup. The actuators are engineered with a non-metallic, sealed housing, preventing corrosion and water ingress, thereby extending the lifespan of the system. The internal pressure equalization system and internal brake prevent unwanted movement, ensuring precise control whether underway or backing down. Operating quietly, these actuators are load tested to push up to 1000 pounds of force, providing maximum lift and improved boat handling. The system is powered by a 12-volt DC supply, with a stroke length of 2.25 inches, and features a vertical height of approximately 12 inches. The external structure’s non-metallic composition guarantees resistance to sun exposure, water, and other environmental factors, maintaining performance over time. Installation is straightforward, as no components need to be placed inside the boat, and the actuator includes both standard and low-profile transom mounting brackets for versatile setup. Please note, control switches are sold separately, and the product must be installed according to the included instruction manual, accessible online. Designed for durability, reliability, and ease of use, the Lectrotab XKA stainless steel trim tab kit is an excellent upgrade for enhancing boat performance and maneuverability in various water conditions.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation with minimal noise during use

• Actuators are fully load tested to push up to 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water exposure
