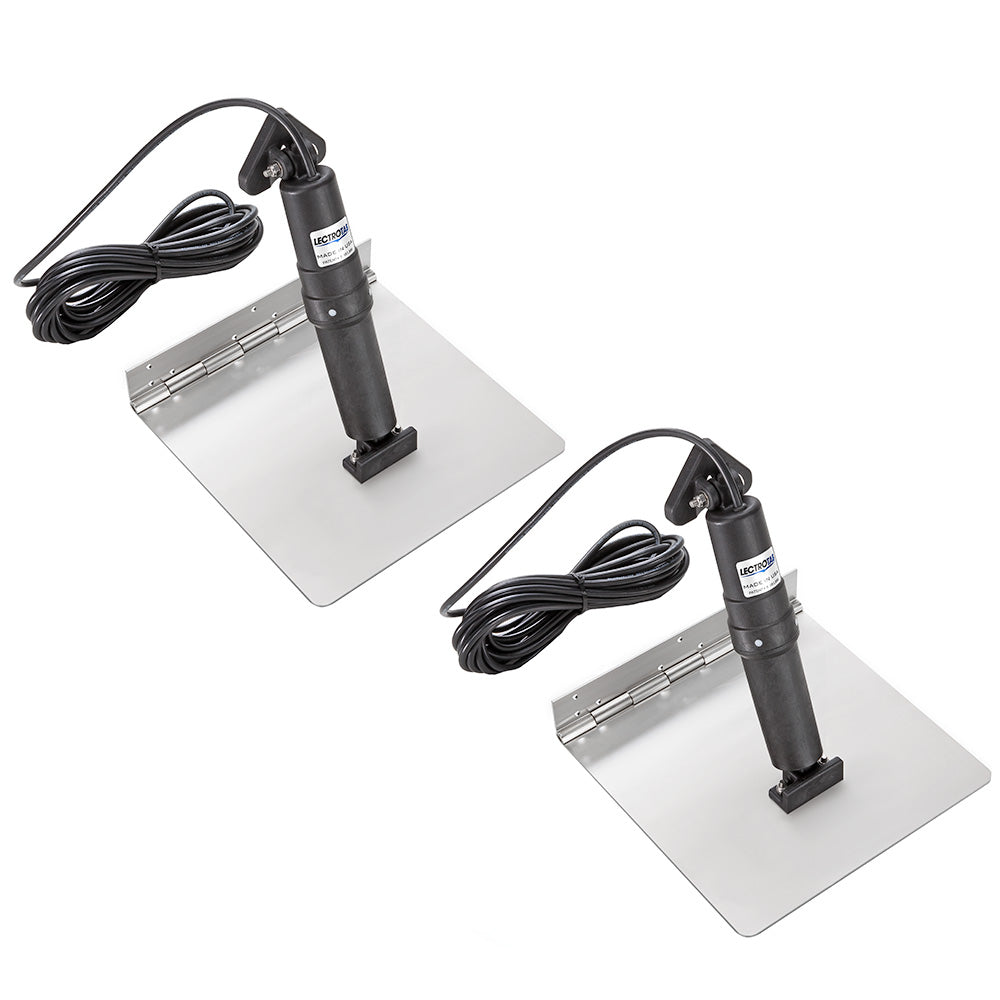

Lectrotab XKA Stainless Steel Trim Tab – 9 x 12 inches for Boats 16 to 25 Feet

XKA Stainless Steel Trim Tab - 9 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Stainless Steel Trim Tab (Part Number: XKA9X12) is designed to enhance vessel performance with superior strength and corrosion resistance. Crafted from 12-gauge 304 stainless steel, this trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and ensuring durability in demanding marine environments. Its robust construction provides reliable lift and stability, making it ideal for boats ranging from 16 to 25 feet. The trim tab's size of 9 inches by 12 inches offers optimal control and responsiveness for adjusting boat attitude and improving handling under various conditions. The kit includes two stainless steel tabs and two high-performance actuators with 23-foot cables, all designed to deliver precise positioning and maximum force with quiet operation. The actuators are fully load tested to push up to 1,000 pounds of force and feature a non-metallic external housing that resists corrosion, sun damage, and water deterioration. This maintenance-free system utilizes internal pressure equalization and an internal brake to prevent unwanted movement, ensuring consistent performance. The actuator’s 2.25-inch stroke length provides ample movement for effective trim adjustments, while the sealed housing guarantees longevity and reliability. Installation is straightforward, with the actuator assembly compatible with standard or low profile transom mounting brackets, and no components need to be installed inside the boat. This product is perfect for boat owners seeking a durable, corrosion-free trim tab solution that offers precise control, quiet operation, and long-term reliability. Please note that the control switch is sold separately. For detailed installation instructions, consult the manufacturer’s manual available online at this link.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement during operation or backing down

• Operates quietly for a smooth boating experience

• Actuators are fully load tested to push up to 1,000 pounds of force

• Non-metallic external structure resists corrosion and sun damage, ensuring long-term durability
