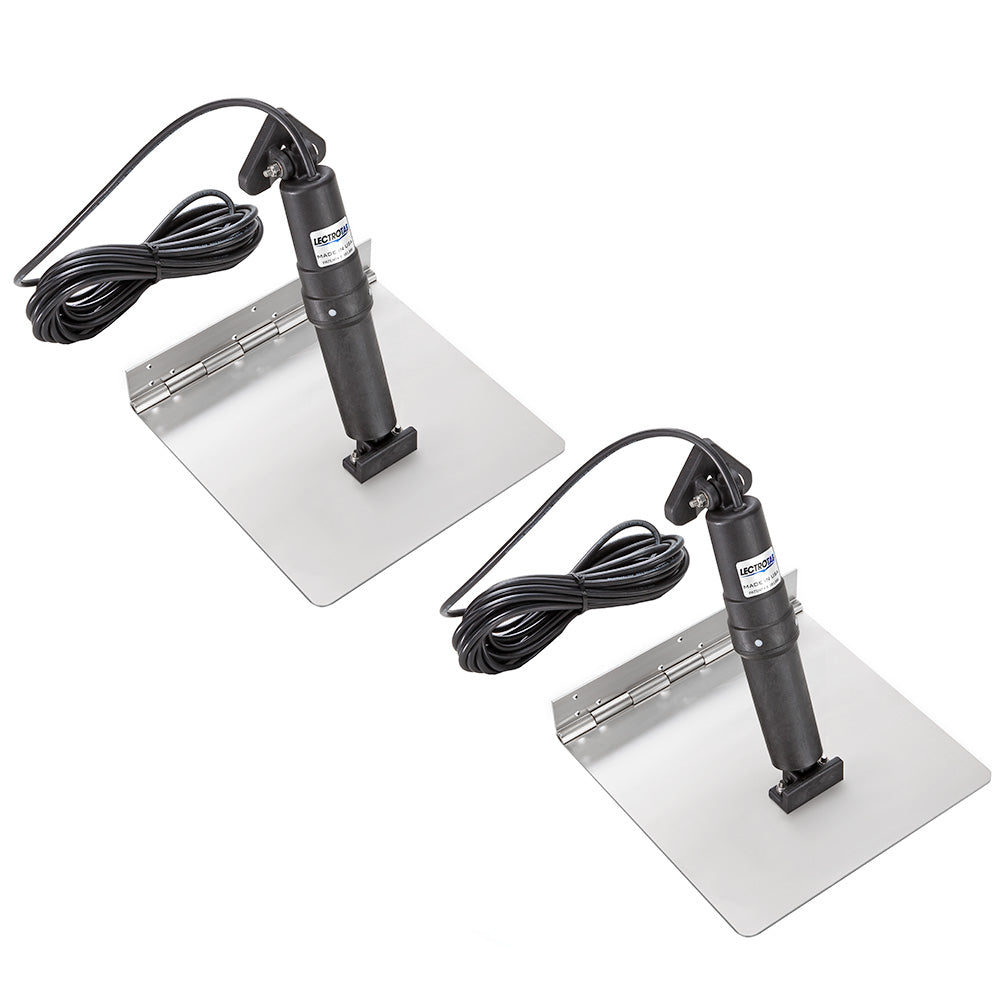

Lectrotab XKA Stainless Steel Trim Tab - 9 x 18 inches for 21 to 30 ft Boats

XKA Stainless Steel Trim Tab - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA stainless steel trim tab set offers superior strength and corrosion resistance, ideal for boats ranging from 21 to 30 feet. Made from 12 gauge 304 stainless steel, these tabs feature a continuous rolled and pinned hinge design that eliminates the need for welding, enhancing durability and ease of installation. The precision-engineered actuator is designed for quiet operation and maintenance-free performance, utilizing internal pressure equalization and an internal brake system to prevent unwanted movement during operation or backing down. The external non-metallic housing ensures the system is corrosion-free and unaffected by sun exposure or water, providing long-lasting reliability. This self-contained system requires no oil, unlike hydraulic alternatives, reducing potential leaks and maintenance concerns. The actuator boasts a 2.25-inch stroke length and is rated to push up to 1000 pounds of force, ensuring maximum lift force and precise control. The kit includes two stainless steel trim tabs, two actuators with 23-foot cables, and an instruction manual, making installation straightforward. The design accommodates transom mounting with both standard and low-profile brackets, providing flexibility for various boat configurations. Please note that control switches are sold separately. Designed for ease of use and durability, the Lectrotab XKA trim tab set enhances boat handling and stability, ensuring smooth operation across different water conditions. For detailed installation instructions, refer to the manufacturer’s manual available online. This product is sold individually and is not eligible for return to the original point of purchase, so direct contact with the manufacturer is recommended for support or warranty issues.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation for smooth performance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
