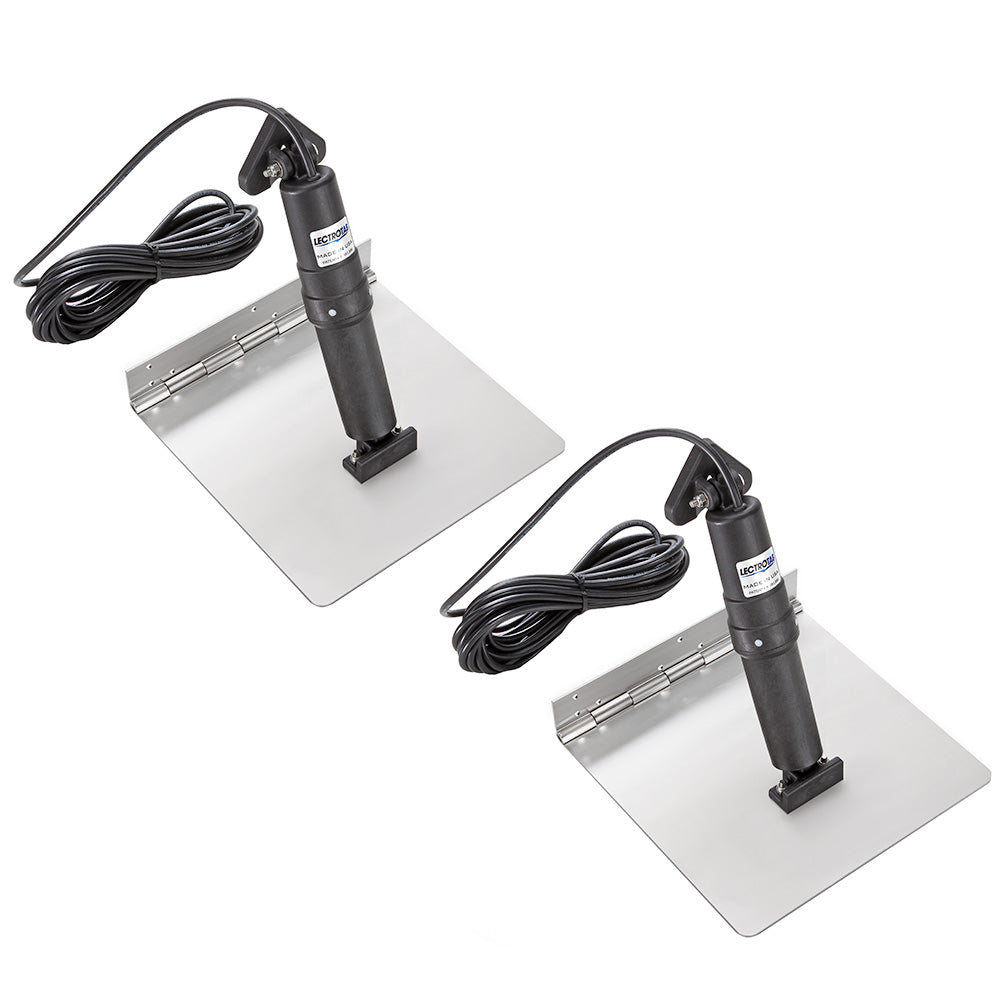

Lectrotab XKA Stainless Steel Trim Tab - 9 x 24 for Boats 24 to 37 Feet

XKA Stainless Steel Trim Tab - 9 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Stainless Steel Trim Tab, measuring 9 inches by 24 inches, offers exceptional strength and durability for marine applications. Crafted from 12-gauge 304 stainless steel, this trim tab is designed to withstand harsh marine environments without corrosion or deterioration, ensuring long-term reliable performance. Its continuous rolled and pinned hinge eliminates welding, providing increased strength and a seamless appearance. The precision-engineered actuator operates quietly and is built for maintenance-free, non-hydraulic use, making it ideal for boaters seeking a reliable and low-maintenance solution.
The actuator assembly features a sealed non-metallic housing that prevents corrosion and damage from barnacles or fouling, while internal pressure equalization and an internal brake system prevent unwanted movement under various conditions. Capable of exerting up to 1,000 pounds of force, the actuator has a stroke length of 2.25 inches and operates on 12-volt DC power, suitable for boats ranging from 24 to 37 feet in length. The 23-foot cable provides flexible installation options, and the unit’s vertical height is approximately 11.875 inches. This kit includes two stainless steel trim tabs, two actuators with cables, and an instruction manual for straightforward installation.
Designed to enhance the handling and stability of your vessel, the Lectrotab XKA trim tabs deliver maximum lift and precise control. Unlike hydraulic systems, this model contains no oil, eliminating the risk of leaks and reducing maintenance concerns. The non-metallic exterior ensures resistance to sun exposure and water, prolonging the product’s lifespan. Please note that control switches are not included, allowing you to select the appropriate control system for your setup. For detailed installation instructions, refer to the provided manual accessible via the manufacturer’s website. This product is sold individually and is ideal for boat owners looking for a robust, corrosion-resistant trim tab solution that ensures optimal performance and ease of use in demanding marine environments.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation for smooth adjustments

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and sun damage
