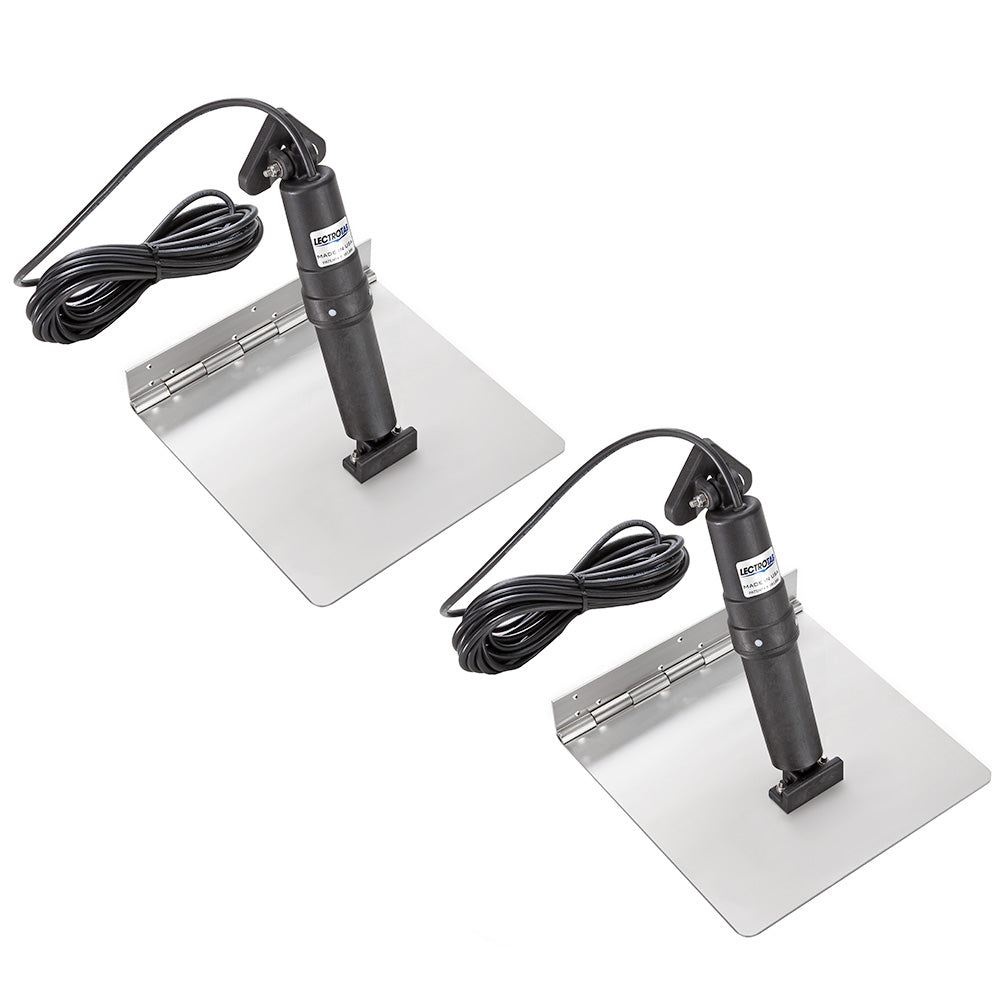

Lectrotab XKA Stainless Steel Trim Tab – 9 x 9 inches for Boats 14 to 19 Feet

XKA Stainless Steel Trim Tab - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA stainless steel trim tab measures 9 x 9 inches and is designed to enhance the performance and stability of boats ranging from 14 to 19 feet. Crafted from durable 12 gauge 304 stainless steel, this trim tab offers exceptional strength and corrosion resistance, ensuring reliable operation in both freshwater and saltwater environments. Its continuous rolled and pinned hinge design eliminates the need for welding, providing added durability and ease of installation. The precision-engineered actuator is built for quiet operation and features a non-metallic, sealed housing that prevents corrosion and deterioration caused by sun exposure or water contact. This maintenance-free system does not require hydraulic fluids or oil, reducing potential leaks and simplifying upkeep.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures minimal noise disturbance

• Actuators are fully load tested to push 1000 lbs of force for reliable performance

• Non-metallic external structure resists corrosion and deterioration in harsh environments
