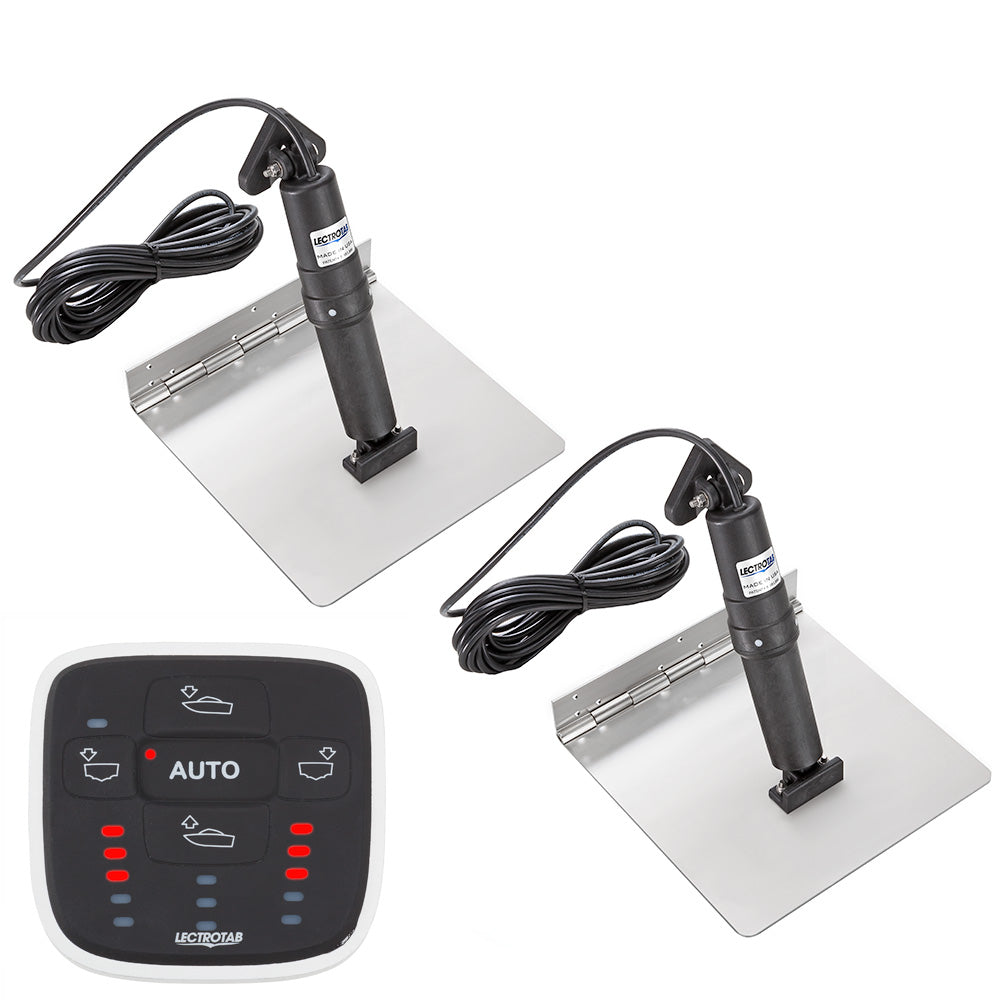

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control – 12 x 12 Inches

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control offers premium durability and precision for boats ranging from 18 to 32 feet. Crafted from 12-gauge 304 stainless steel, these trim tabs are engineered for strength and corrosion resistance, ensuring long-lasting performance in harsh marine environments. The continuous rolled and pinned hinge design eliminates the need for welding, providing enhanced structural integrity and ease of installation. The corrosion-proof external structure maintains its integrity under sun exposure and submersion, making it ideal for demanding boating conditions. The integrated actuator features a sealed housing, delivering quiet operation and maintenance-free reliability without hydraulic oil leaks. Capable of exerting up to 1,000 pounds of force, the actuator is fully load tested and designed for precise, smooth movement. The internal pressure equalization system and brake mechanism prevent unwanted tab movement, ensuring control and stability during operation. The 12 x 12-inch trim tabs are suitable for a variety of boat sizes, offering maximum lift force to improve handling and fuel efficiency. The included ALC-1 automatic leveling control maintains a level boat attitude by adjusting the trim tabs automatically, compensating for side-to-side roll and fore-aft pitch. This feature enhances comfort and stability on the water, making your boating experience safer and more enjoyable. The kit contains two stainless steel tabs, two actuators with 23-foot cables, and an easy-to-install control unit. The compact control dimensions and mounting hole size facilitate straightforward installation on most transoms. Designed with a 12V DC power supply, the system ensures reliable operation with minimal maintenance. Whether upgrading existing trim tabs or installing a new system, the Lectrotab XKA kit provides a robust, corrosion-resistant solution that improves boat handling and ride quality. For detailed installation instructions, refer to the included manual available online. This product is sold as a complete kit, ready to enhance your boating experience with durability and advanced automatic leveling technology.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater
