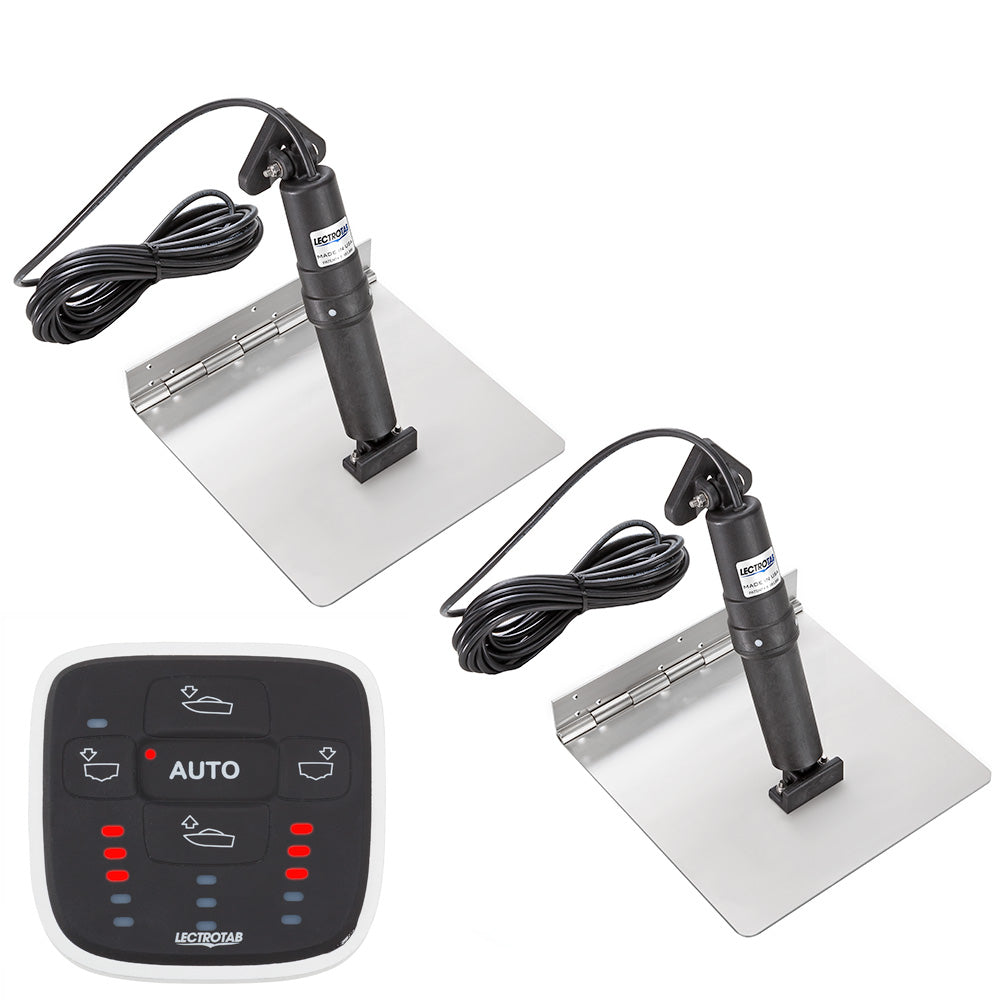

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control – 12 x 18 inches for 20-40 ft Boats

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control is engineered for durability and precision performance on boats ranging from 20 to 40 feet. Crafted from 12-gauge 304 stainless steel, these trim tabs offer exceptional strength and corrosion resistance, making them ideal for both freshwater and saltwater environments. The continuous rolled and pinned hinge design ensures maximum durability without the need for welding, providing a reliable solution for maintaining optimal boat trim and stability.
The kit features a non-metallic, sealed actuator housing that eliminates the risk of corrosion and oil leaks common with hydraulic systems. This maintenance-free actuator operates quietly and is capable of exerting up to 1000 pounds of force, ensuring precise and powerful tab adjustments. The internal pressure equalization system and brake mechanism prevent unwanted movement, even under challenging conditions, contributing to a smooth and controlled ride. The included actuator cables are 23 feet long, allowing flexible installation options. The trim tabs are suitable for a wide range of boat sizes and are easy to install with mounting brackets designed for straightforward setup.
An advanced Automatic Leveling Control (ALC) system is integrated into the kit to automatically adjust the trim tabs, maintaining a level boat regardless of load or sea conditions. The ALC also compensates for side-to-side roll and fore-to-aft pitch, enhancing comfort, stability, and fuel efficiency. The control unit features compact dimensions for easy mounting, with a standard operating voltage of 12 or 24 volts. This system simplifies boat handling and improves overall boating experience.
The Lectrotab XKA kit includes two stainless steel trim tabs, two actuators with cables, the ALC control unit, and a comprehensive instruction manual for straightforward installation. Designed for durability, ease of use, and optimal performance, this kit is an excellent choice for boat owners seeking reliable trim control without hydraulic maintenance concerns. For detailed installation instructions and troubleshooting, refer to the included manual available online.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for reliability

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation ensures a smooth boating experience

• Actuators are fully load tested to push 1000 lbs of force for robust performance

• Non-metallic external structure resists corrosion and deterioration in harsh environments
