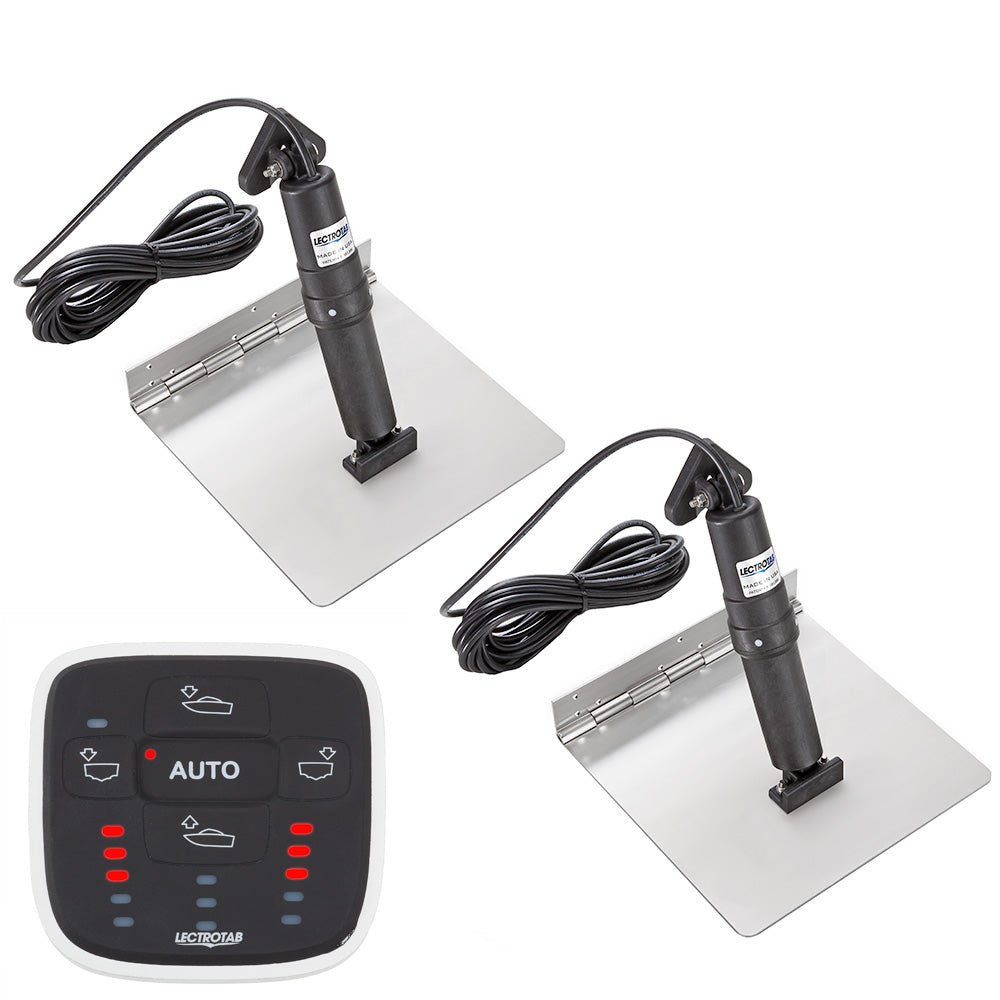

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 9 inches

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA stainless steel trim tab kit offers unmatched durability and reliable performance for boats ranging from 18 to 29 feet. Crafted from 12-gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge that enhances strength and eliminates the need for welding, ensuring a long-lasting and maintenance-free solution. The corrosion-resistant design is ideal for marine environments, providing consistent performance under water and in sunlight without deterioration. The kit includes two stainless steel tabs, each measuring 12 x 9 inches, and a precision-engineered actuator that operates quietly while delivering up to 1000 lbs of force. The actuator's sealed non-metallic housing prevents water ingress and eliminates hydraulic oil leaks, making it a reliable, oil-free alternative to traditional hydraulic trim tabs. The internal pressure equalization system and brake mechanism ensure stable, accurate positioning during operation, enhancing safety and control. The actuator has a stroke length of 2.25 inches and is powered by a 12-volt DC supply, with a 23-foot cable for flexible installation. The included ALC-1 automatic leveling control adjusts the trim tabs to maintain a level boat, automatically correcting pitch and roll for a smoother ride and improved fuel efficiency. The control unit measures 3.15 x 3.07 inches and mounts easily with a 2-inch hole, compatible with 12 or 24-volt systems. Download the owner’s manual here. This kit is designed for straightforward installation, requiring no components inside the boat, and is ideal for boaters seeking durability, ease of use, and advanced leveling features. The set includes the control unit, two stainless steel trim tabs, two actuators with cables, and an instruction manual, providing everything needed for a complete upgrade to your vessel’s trim system.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouling or barnacles

• Internal pressure equalization system enhances durability

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for a smoother boating experience

• Actuators are fully load tested to push up to 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun exposure and water
