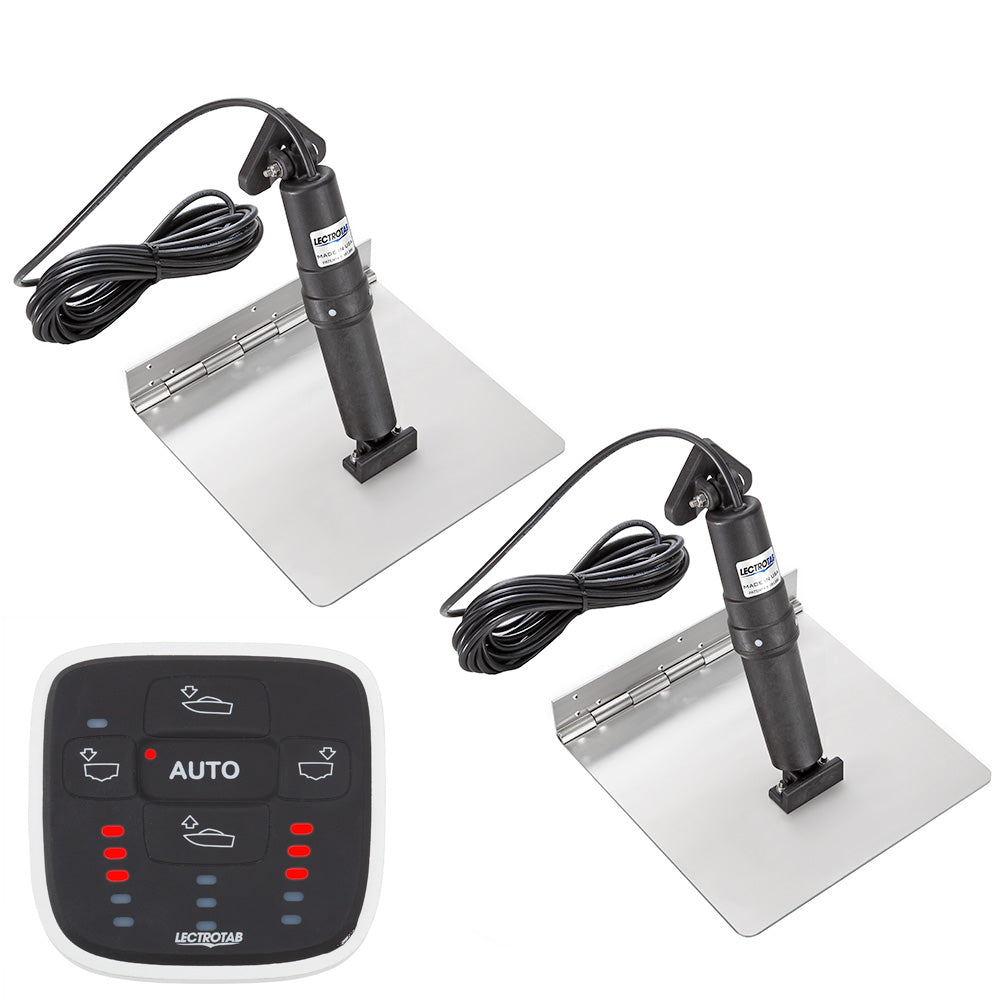

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 12 inches

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control offers a durable and reliable solution for boaters seeking precise control and enhanced stability. Crafted from 12-gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge that provides added strength without the need for welding, ensuring long-lasting performance in harsh marine environments. The corrosion-resistant, non-metallic external structure prevents deterioration from sun exposure and water, making it ideal for boats ranging from 16 to 25 feet. The kit includes two stainless steel tabs, two actuators with 23-foot cables, and an automatic leveling control that maintains a level and comfortable ride by automatically adjusting trim positions to counteract side-to-side roll and fore-aft pitch. The system's internal pressure equalization and brake mechanisms contribute to smooth, quiet operation and prevent unwanted movement when underway or backing down. Each actuator is fully load tested to push up to 1,000 pounds of force, providing maximum lift and responsiveness. The compact control unit measures approximately 3.15 inches wide and 3.07 inches high, with a 2-inch mounting hole, compatible with 12 or 24-volt power supplies. Installation is straightforward, with the control and actuators designed to be self-contained, eliminating the need for components inside the boat. This kit is perfect for boaters looking to improve handling, fuel efficiency, and overall comfort, especially with the added convenience of automatic leveling through the integrated ALC system. Whether you seek enhanced stability for cruising or more efficient operation, the Lectrotab XKA Trim Tab Kit is engineered for durability, precision, and ease of use, backed by comprehensive instructions and support. Please note that this product is sold as a complete kit, and any concerns should be directed to the manufacturer for assistance.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location resistant to damage from fouling or barnacles

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water
