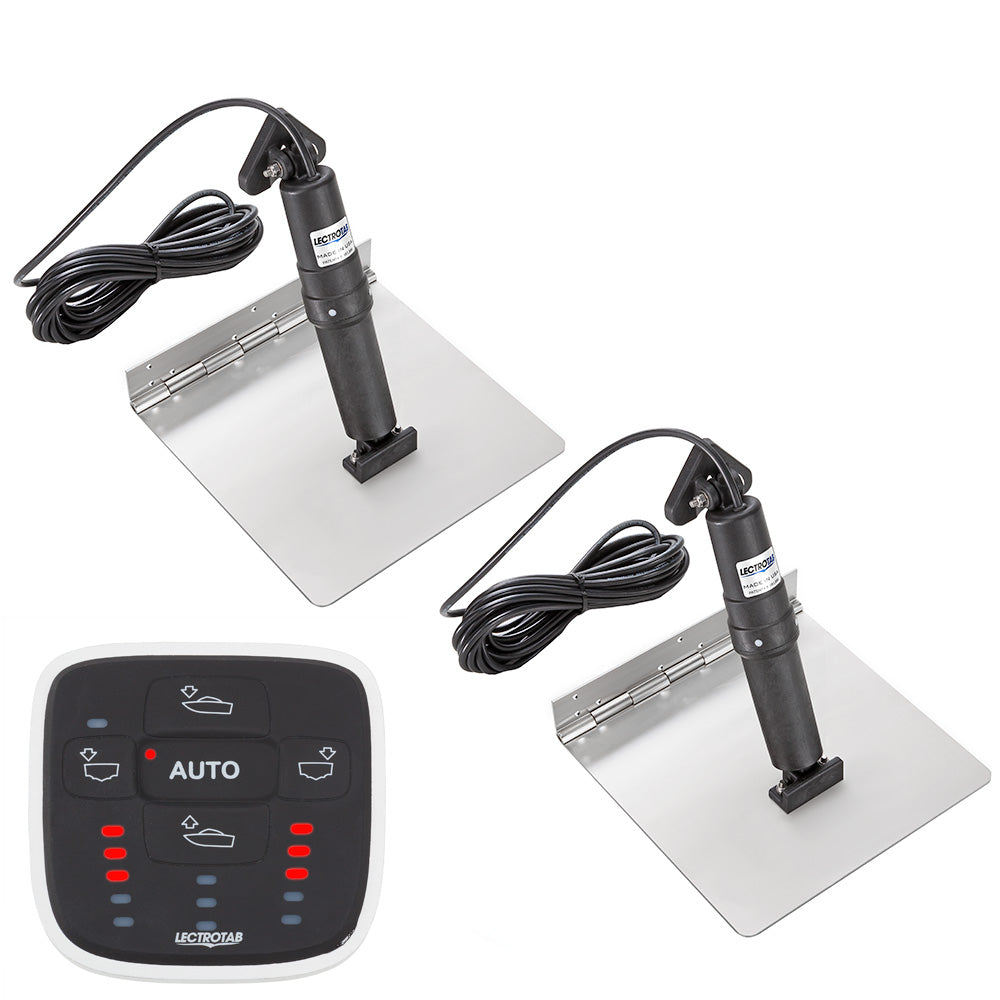

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 24 inches for Boats 24 to 37 Feet

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit is designed to enhance the stability and performance of your boat. Featuring durable 12-gauge, 304 stainless steel tabs, this kit offers unmatched strength, corrosion resistance, and longevity. The continuous rolled and pinned hinge construction provides added durability and eliminates the need for welding, ensuring a reliable and maintenance-free operation. This design is ideal for boaters seeking a robust, corrosion-proof solution that stands up to harsh marine environments.
Equipped with a precision-engineered actuator, the system delivers quiet, smooth operation with a maximum load capacity of 1,000 pounds. The actuator’s non-metallic, sealed housing prevents corrosion and damage from barnacles or fouling, making installation straightforward without requiring components inside the boat. The system’s internal pressure equalization and brake mechanisms prevent unwanted movement during operation or backing down, ensuring consistent trim adjustments.
The kit includes the Automatic Leveling Control (ALC), which automatically adjusts the trim tabs to keep your boat level, enhancing ride comfort and stability. The ALC also dynamically corrects side-to-side roll and fore-to-aft pitch, leading to improved fuel efficiency and smoother handling. The control unit is compact, measuring approximately 3.15 inches wide and 3.07 inches high, designed for easy mounting with a 2-inch mounting hole cutout and compatible with 12 or 24-volt power sources.
This comprehensive kit contains two stainless steel trim tabs, two actuators with 23-foot cables, an automatic leveling control, and an instruction manual, providing everything needed for installation. The 9-inch by 24-inch tabs are suitable for boats ranging from 24 to 37 feet, making it an ideal upgrade for recreational and fishing boats seeking enhanced control and performance. Please note, this product is sold as a kit and should be installed by a qualified professional for optimal results.
For detailed installation instructions and troubleshooting, refer to the official manual available online. The robust design, automatic leveling feature, and corrosion-proof materials make the Lectrotab XKA Trim Tab Kit a reliable choice for serious boaters looking to improve their vessel’s handling and comfort in various water conditions.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location protects against damage from fouling or barnacles

• Utilizes internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water exposure
