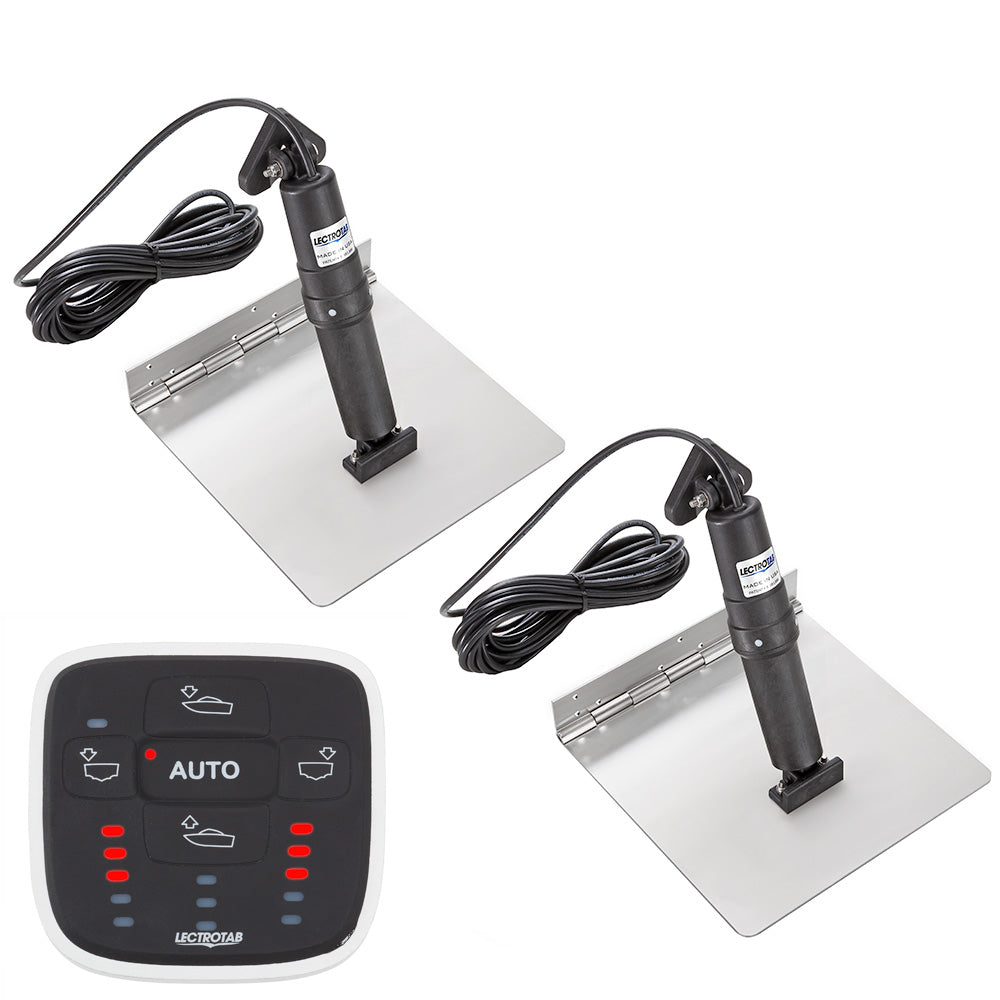

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control – 9 x 9 Inches

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control is designed for boats measuring 14 to 19 feet, offering a reliable and maintenance-free solution for optimal boat performance. Crafted from 12-gauge, 304 stainless steel, these trim tabs provide exceptional strength and resistance to corrosion, ensuring long-lasting durability in harsh marine environments. The continuous rolled and pinned hinge construction eliminates the need for welding, enhancing durability and simplifying installation. The design features an external non-metallic structure that resists deterioration from sun exposure and water, maintaining performance over time. The kit includes two stainless steel tabs and two high-capacity actuators rated to push up to 1000 pounds of force, ensuring maximum lift and precise control. The actuators are fully load tested and incorporate internal pressure equalization and brake systems to prevent unwanted movement during operation or backing down. They operate quietly, providing a smooth and unobtrusive boating experience. The system's non-hydraulic, oil-free design eliminates leaks and reduces maintenance needs. The included ALC-1 automatic leveling control system automatically adjusts the trim tabs to keep the boat level, enhancing comfort and handling. It also corrects for side-to-side roll and fore-to-aft pitch, contributing to better fuel efficiency and stability. The control unit features a compact design with a convenient mounting hole, compatible with 12 or 24-volt systems. Each component is self-contained, allowing for easy installation without internal boat modifications. The kit comes with detailed instructions and all necessary components, making it an ideal upgrade for boaters seeking reliable, corrosion-resistant trim tab operation with advanced automatic leveling capabilities. Whether for recreational or fishing boats, this trim tab kit ensures a smoother, more controlled ride in various water conditions, backed by robust stainless steel construction and innovative technology.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for unobtrusive performance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and sun deterioration
