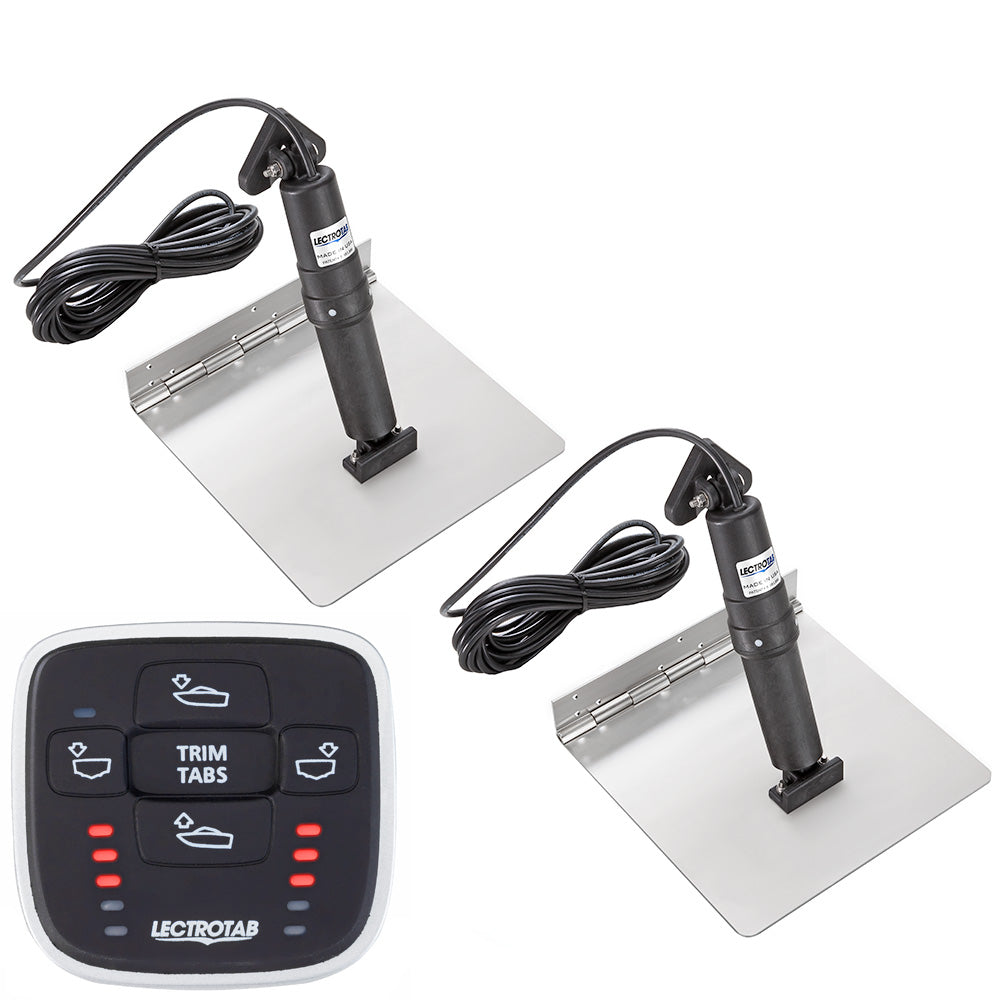

Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 12 inches

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers exceptional strength and durability for boat performance enhancement. Crafted from 12-gauge, 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge design that eliminates the need for welding, ensuring a more reliable and corrosion-resistant assembly. The corrosion-proof external structure is impervious to sun exposure and underwater conditions, making it ideal for extended marine use. The kit includes two stainless steel tabs, each 12 inches by 12 inches, and a precision-engineered actuator that delivers smooth, quiet operation with a maximum force capacity of 1000 pounds. The actuator's non-metallic, permanently sealed housing simplifies installation by eliminating internal components that require maintenance or repairs. This design ensures that no hydraulic oil leaks occur, providing a maintenance-free and environmentally friendly solution for trim adjustment. The actuator features internal pressure equalization and an internal brake system to prevent unwanted movement when the boat is stationary or backing down, ensuring stability and control during operation. The system is compatible with 12 V or 24 V DC power supplies and includes a 23-foot cable for flexible installation options. The compact control unit, with dimensions of approximately 3.15 inches by 3.07 inches, displays LED indicators that automatically adjust brightness based on ambient lighting, ensuring clear visibility both day and night. The control allows simultaneous adjustment of both tabs at the push of a button, providing precise and effortless trim control to improve boat handling, fuel efficiency, and ride comfort across vessels ranging from 18 to 32 feet. The kit includes a manual leveling control, detailed instructions, and all necessary mounting hardware, making installation straightforward for most boat operators. Designed to withstand harsh marine environments, the Lectrotab XKA Trim Tab Kit is a reliable upgrade for boaters seeking enhanced maneuverability and performance without the maintenance concerns associated with hydraulic systems.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Internal pressure equalization system maintains consistent performance

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation for unobtrusive performance

• Actuators are load tested to push up to 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
