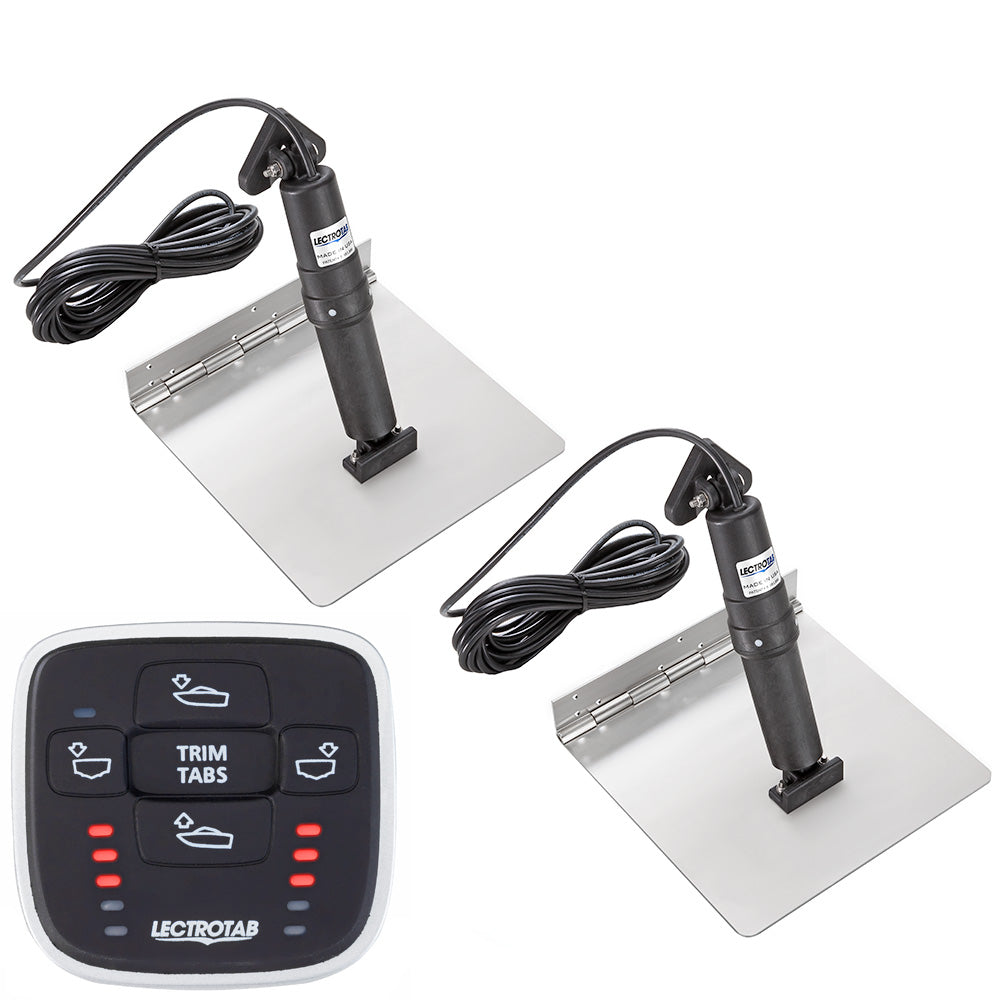

Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control – 12 x 18 inches for Boats 20 to 40 feet

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers a durable and maintenance-free solution for optimal boat handling. Crafted from 12-gauge, 304 stainless steel, these trim tabs deliver exceptional strength and corrosion resistance, ensuring long-lasting performance in harsh marine environments. The continuous rolled and pinned hinge design provides added durability and eliminates the need for welding, simplifying installation and enhancing reliability. The kit includes two stainless steel tabs and actuators equipped with a pressure-equalization system to prevent damage from fouling or barnacle growth, maintaining smooth operation over time. The non-metallic external structure ensures the entire assembly is corrosion-free and resistant to deterioration caused by sun exposure or water contact. The actuators are fully load tested to push up to 1,000 pounds of force, enabling maximum lift and precise positioning for boats ranging from 20 to 40 feet in length. Each actuator features a 2.25-inch stroke length and is powered by a 12-volt DC supply, with a cable length of 23 feet for flexible installation. The integrated internal brake system prevents unwanted tab movement during operation or backing down, ensuring stability and control. The MLC-1 microprocessor-based control allows simultaneous adjustment of both tabs at the touch of a button, with LED indicators that automatically adjust brightness based on ambient light conditions. The control unit's compact dimensions make it easy to mount on the transom, with a 2-inch hole cutout required. This kit is perfect for boat owners seeking a reliable, corrosion-resistant trim tab system with quiet operation and precise control. Inside the box, you'll find the manual leveling control, two stainless steel tabs, two actuators with cables, and an instruction manual. The entire system is designed for straightforward installation and maintenance, with no need for hydraulic oil or complex components. Whether you're looking to improve boat stability or enhance maneuverability, the Lectrotab XKA Kit provides a high-quality, long-lasting solution for your marine needs.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for smooth control

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water exposure
