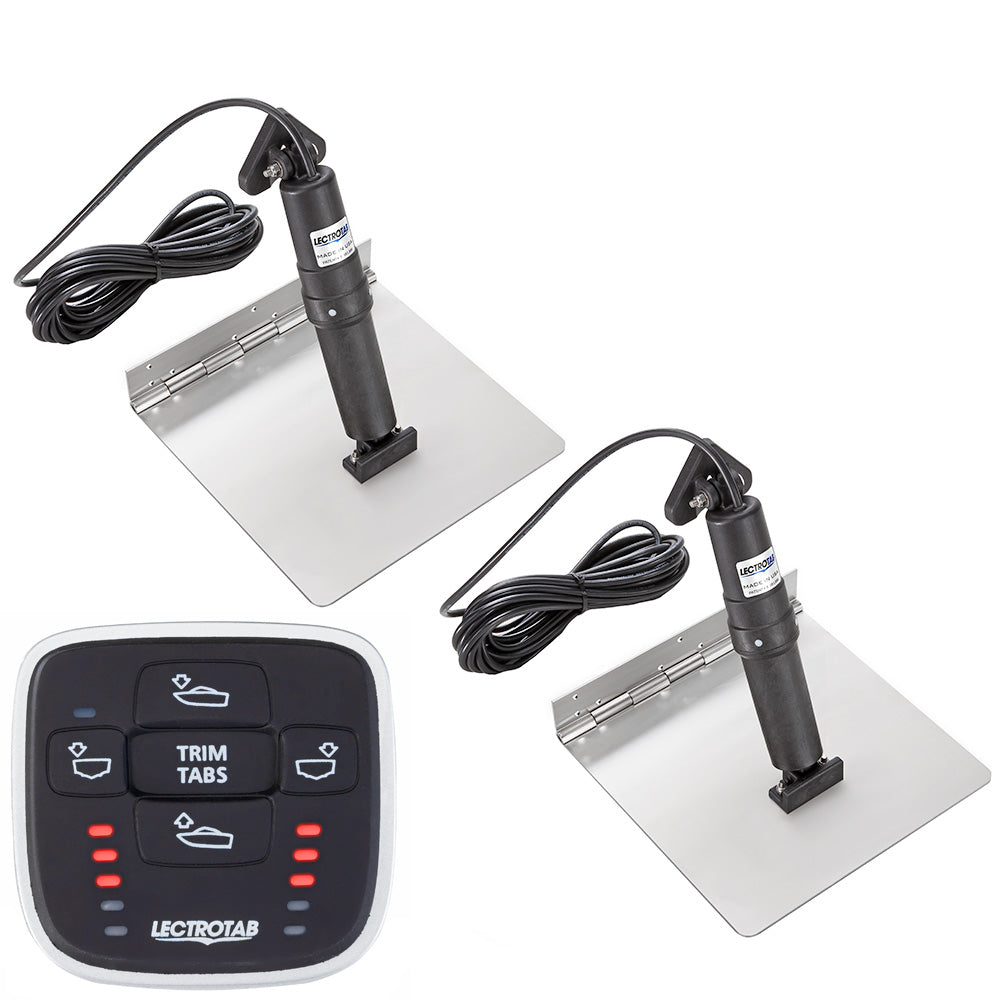

Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 24 inches

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers a durable and reliable solution for boat trim adjustment. Crafted from 12-gauge 304 stainless steel, these trim tabs provide exceptional strength and corrosion resistance, making them suitable for prolonged exposure to water and sun. The design features a continuous rolled and pinned hinge, eliminating the need for welding and enhancing overall durability. This innovative construction ensures smooth operation and long-lasting performance even in demanding marine environments. The kit includes two stainless steel tabs, two actuators with 23-foot cables, and a manual leveling control, providing everything needed for installation and operation. The non-metallic external structure of the actuators prevents corrosion and deterioration, ensuring maintenance-free use over time. The high-force actuators are load tested to push up to 1,000 pounds, enabling maximum lift and precise control of boat trim. The internal pressure equalization and brake systems ensure reliable, quiet operation and prevent unwanted movement during navigation or backing down. The MLC-1 control is microprocessor-based, allowing simultaneous movement of both tabs at the touch of a button. It features LED indicators that automatically adjust brightness for visibility in daylight or darkness, enhancing ease of use during operation. This kit is designed for boats ranging from 28 to 48 feet, suitable for a variety of vessel sizes. The compact control unit measures just over 3 inches in width and height, with a mounting hole size of 2 inches, making installation straightforward. Overall, the Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control provides a maintenance-free, corrosion-resistant, and highly effective trim management system that enhances boat performance and ease of operation.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for smooth adjustments

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
