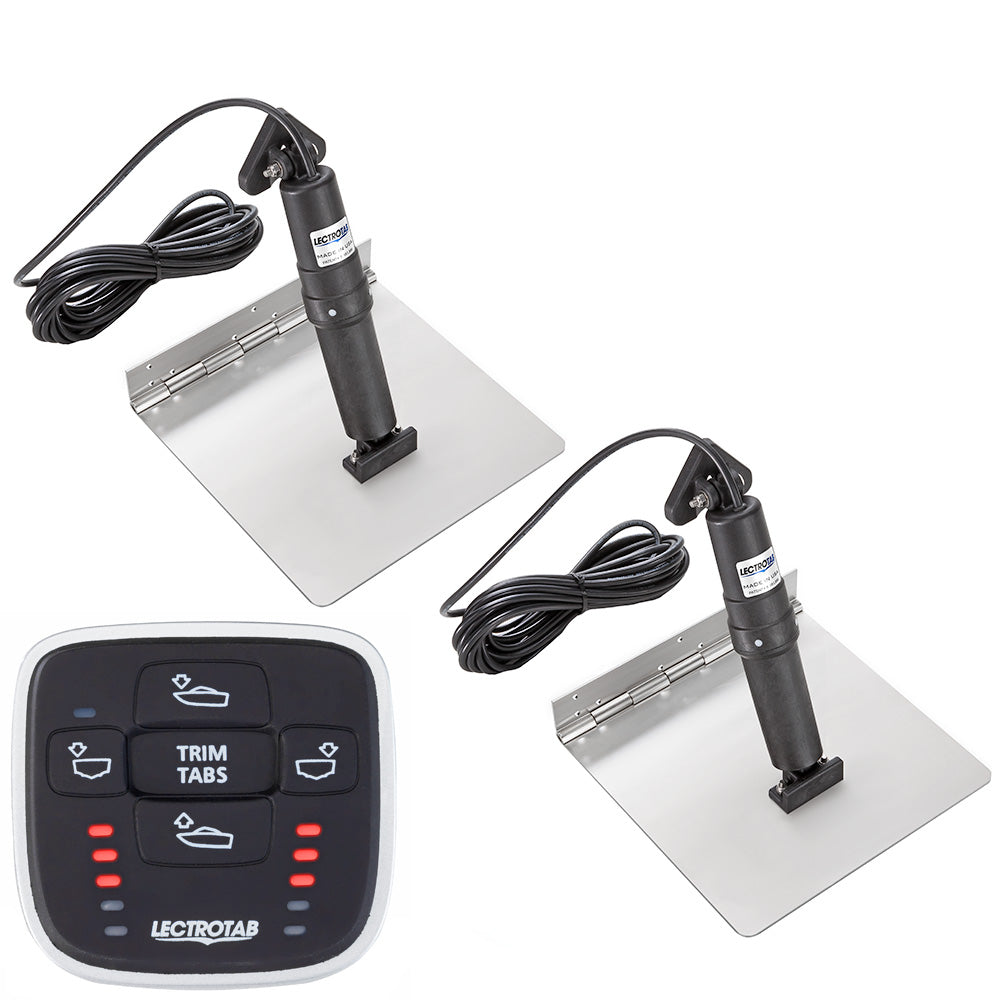

Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 9 inches

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers a robust and maintenance-free solution for boat stabilization. Crafted from 12-gauge 304 stainless steel, the trim tabs are designed for strength and corrosion resistance, making them suitable for marine environments. The continuous rolled and pinned hinge eliminates the need for welding, providing enhanced durability and a seamless installation process. These features ensure the trim tabs can withstand harsh conditions while maintaining optimal performance. The kit includes two stainless steel tabs and two powerful actuators, each with a 23-foot cable, capable of delivering up to 1000 pounds of force. The actuator's sealed non-metallic housing prevents corrosion and leakage, unlike hydraulic options which require oil, reducing maintenance concerns and potential messes. The internal pressure equalization system and pressure brake safeguard against unwanted movement, ensuring precise control during operation. The design incorporates a quiet operation mechanism suitable for various boat sizes. The actuators are compatible with 12V or 24V DC power supplies and feature a stroke length of 2.25 inches, allowing for accurate positioning. The MLC-1 control unit, operating via microprocessor technology, enables the simultaneous adjustment of both tabs at the push of a button. Its LED indicators automatically adjust brightness according to ambient light, providing clear visibility in all conditions. With a compact control dimension of approximately 3.15 by 3.07 inches and a mounting hole of 2 inches, installation is straightforward on boats ranging from 18 to 29 feet in length. This kit is an excellent choice for boat owners seeking reliable, corrosion-resistant trim tabs that deliver maximum lift and precise control without hydraulic fluid leaks. The package includes a manual leveling control, the stainless steel tabs, actuators with cables, and an instruction manual to facilitate easy setup. Suitable for demanding marine applications, the Lectrotab XKA kit ensures long-lasting performance and effortless operation for optimal vessel handling.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures minimal noise during use

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun or water exposure
