SKU:96281

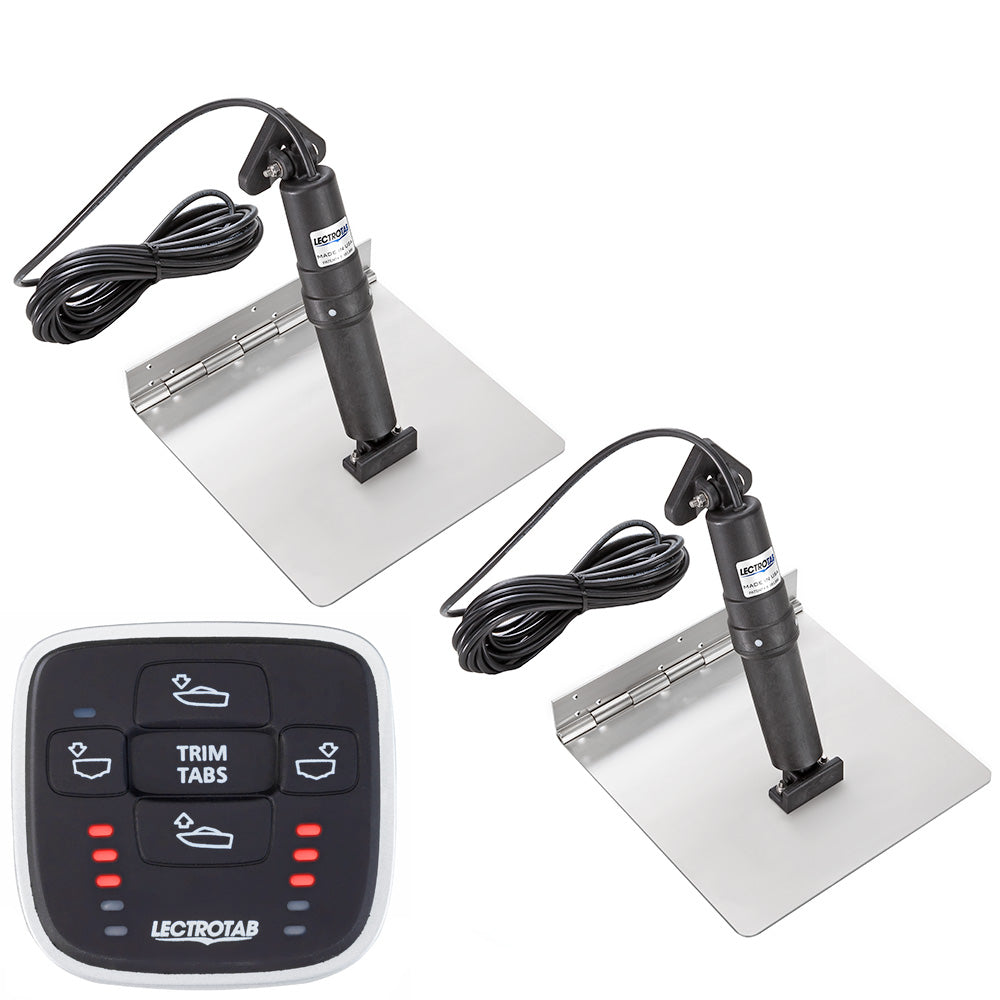

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 24
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.
Features:
Technical Specifications:
In the Box:
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control is designed for boats measuring 24 to 37 feet, offering exceptional strength and durability with its 12-gauge, 304 stainless steel construction. The trim tabs feature a continuous rolled and pinned hinge that eliminates the need for welding, ensuring a robust and reliable connection that withstands harsh marine environments. The stainless steel material is corrosion-resistant, making it ideal for prolonged exposure to water, sun, and salt, while the non-metallic external housing prevents deterioration over time. The kit includes two stainless steel tabs and two high-torque actuators with 23-foot cables, capable of exerting up to 1000 pounds of force, providing maximum lift and control for optimal boat performance. The actuators are built with internal pressure equalization and an internal brake system that prevents unwanted movement during operation or backing down, ensuring precise control and safety.
The MLC-1 microprocessor-based control unit allows for simultaneous adjustment of both trim tabs at the push of a button, enhancing ease of use. It features LED indicators that automatically adjust brightness for visibility in different lighting conditions, such as bright sunlight or darkness. The control dimensions are compact, fitting seamlessly on your boat's console with a 2-inch cutout. The system operates on 12 or 24 volts DC, offering versatility for various marine electrical setups. Installation is straightforward, with a fully self-contained actuator assembly that does not require components inside the boat, reducing maintenance and potential leak points. The kit is complete with manual leveling instructions and all necessary components for quick setup.
This premium trim tab kit ensures smooth, quiet operation and reliable performance, helping boaters achieve optimal trim and enhance vessel handling, fuel efficiency, and ride comfort. The rugged design and advanced features make it suitable for demanding marine applications, providing peace of mind and superior control during your voyages. For detailed installation and operation instructions, consult the included manual available online.
Features:
