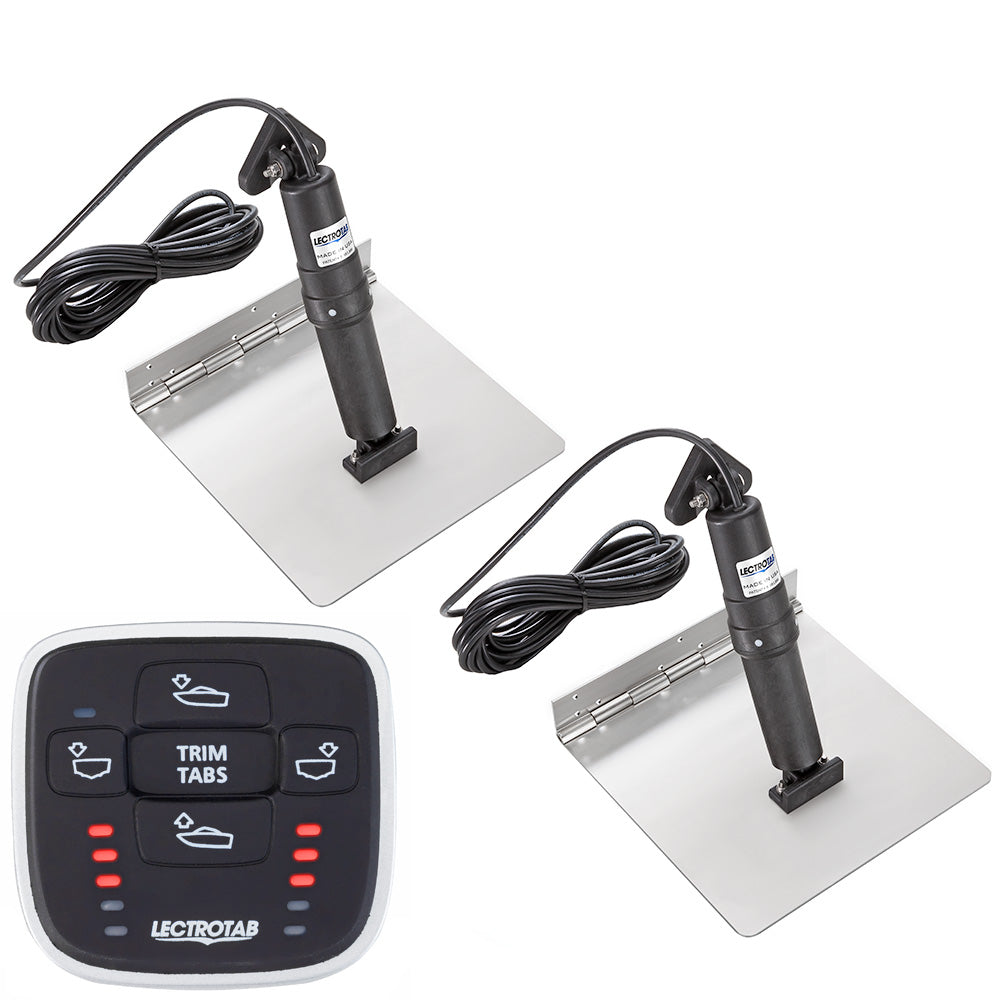

Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control – 9 x 9 inches for Boats 14 to 19 Feet

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers a durable and reliable solution for marine stabilization. Crafted from 12-gauge 304 stainless steel, these trim tabs deliver exceptional strength and corrosion resistance, ensuring long-lasting performance in harsh water conditions. The continuous rolled and pinned hinge design eliminates the need for welding, providing a robust connection that withstands demanding marine environments. The trim tabs are designed for easy installation and maintenance, with a non-metallic external structure that resists deterioration caused by sun exposure and water contact.

Equipped with a precision-engineered actuator, this kit guarantees quiet operation and maximum lift force. The actuator is fully load tested to push up to 1,000 lbs of force and features an internal pressure equalization system for smooth, accurate tab positioning. Its sealed housing prevents water ingress and eliminates hydraulic oil leaks, making it a maintenance-free, non-hydraulic alternative. The actuator incorporates either a standard or low-profile transom mounting bracket, suited for various boat configurations.

The MLC-1 microprocessor-controlled trim tab system allows simultaneous movement of both tabs at the press of a button, simplifying adjustments while maintaining optimal boat stability. LED indicators display tab positions, automatically adjusting brightness for visibility in various lighting conditions. The control unit’s compact dimensions fit conveniently on the dashboard, with an easy-to-use interface operating on 12 or 24 volts.

This kit includes two stainless steel trim tabs, two actuators with 23-foot cables, a manual leveling control, and an instruction manual to facilitate straightforward installation. Designed for boats ranging from 14 to 19 feet, this set enhances boat handling and ride quality across diverse water conditions. Whether you're upgrading your existing trim system or installing new, the Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control provides a dependable, maintenance-free solution for optimal marine performance.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system for smooth operation

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1000 lbs of force for maximum lift

• Non-metallic external structure resists corrosion and deterioration from sun and water
