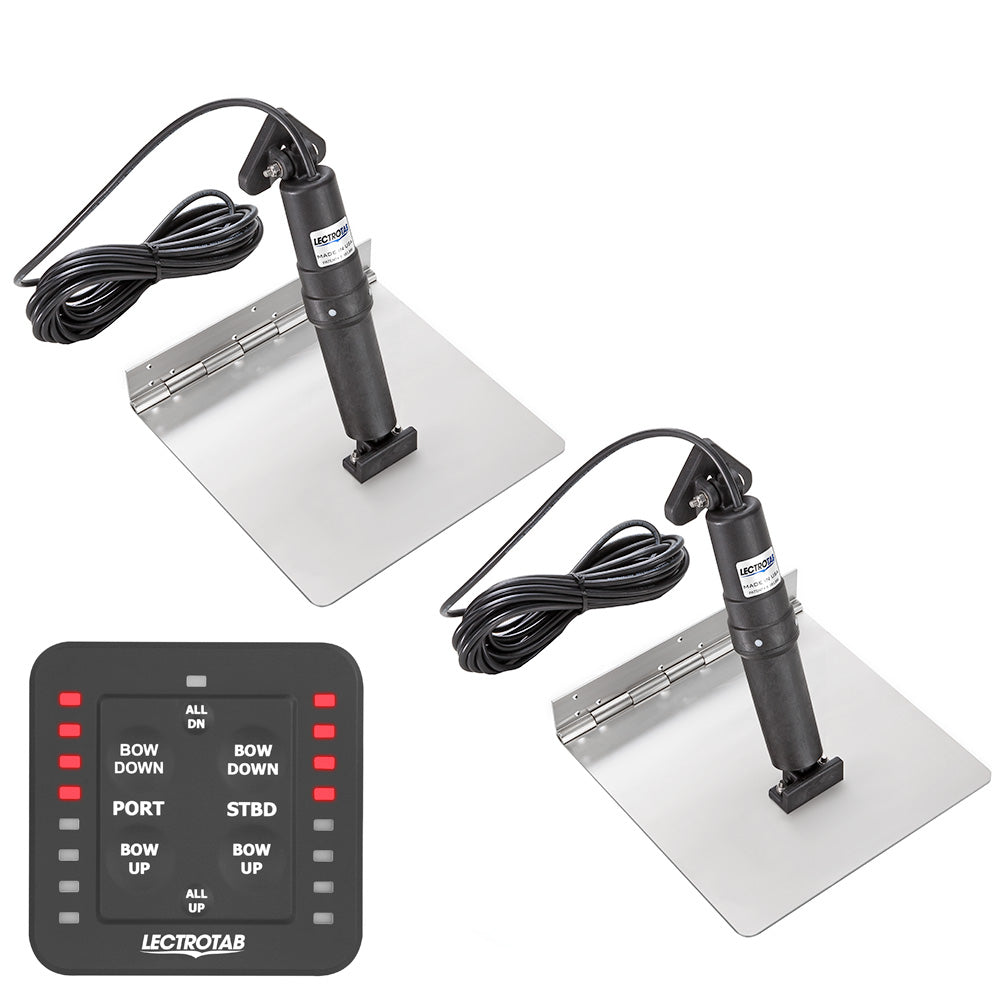

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 12 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and reliable solution for boat stabilization and performance optimization. Crafted from 12-gauge, 304 stainless steel, the trim tabs are designed with a continuous rolled and pinned hinge, providing enhanced strength and eliminating the need for welding. This robust construction ensures long-lasting performance even in harsh marine environments. The kit includes a precision-engineered actuator that delivers smooth, quiet operation and is built to withstand up to 1000 pounds of force, offering maximum lift capability. The actuator features a non-metallic, sealed housing that prevents corrosion and deterioration from sun exposure or water contact, making it maintenance-free and ideal for saltwater conditions. Its internal pressure equalization system and brake mechanism ensure accurate positioning and prevent unwanted movement during operation, whether underway or backing down. The kit is designed for vessels ranging from 18 to 32 feet, suitable for a variety of boat types and sizes. The included One-Touch Control with LED indicators allows for effortless, precise adjustment of the trim tabs at your fingertips. The control unit is compact, measuring 3 inches by 3 inches, and mounts conveniently on the transom with a standard 2.25-inch by 2.5-inch cutout. The entire assembly is self-contained, requiring no components inside the boat, simplifying installation and reducing potential leak points. Whether you are looking to improve boat handling, fuel efficiency, or ride comfort, the Lectrotab XKA kit provides a corrosion-resistant, high-performance solution that is built to last in demanding marine conditions. The package includes two stainless steel trim tabs, two actuators with 23-foot cables, a one-touch control, and an instruction manual for easy setup and operation. This kit is designed to deliver reliable, maintenance-free performance, making it an excellent upgrade or replacement for existing trim tabs on small to mid-sized boats.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for minimal noise disturbance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
