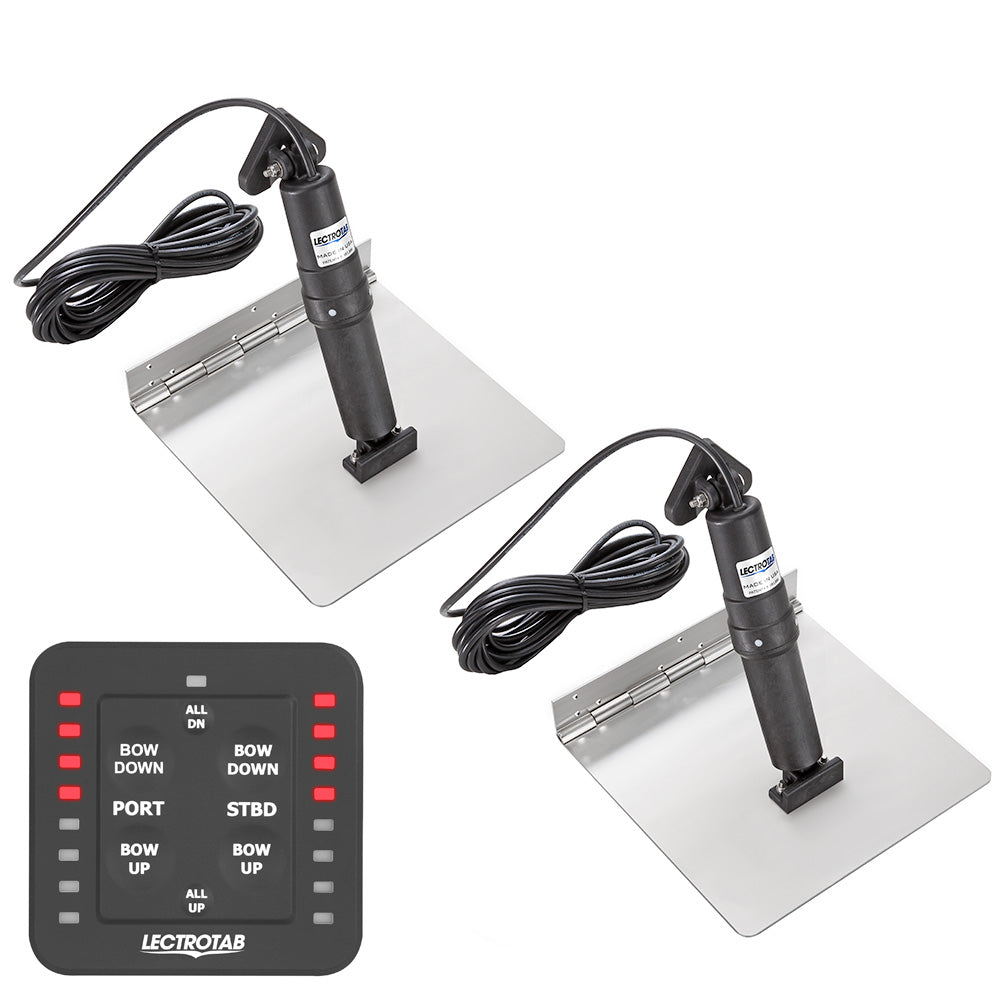

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 18 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and corrosion-resistant solution for boats ranging from 20 to 40 feet. Crafted from 12-gauge 304 stainless steel, these trim tabs provide exceptional strength and reliability. The continuous rolled and pinned hinge design eliminates the need for welding, ensuring a robust connection that withstands harsh marine environments. The precision-engineered actuator features internal pressure equalization and an internal brake system, allowing for smooth, quiet operation and preventing unwanted movement during transit or backing down. Its self-contained, non-metallic external housing resists corrosion and deterioration caused by sun exposure and water, making maintenance effortless and reducing long-term costs. The actuator's 12-volt DC motor delivers a force of up to 1,000 pounds, providing maximum lift and precise positioning for optimal boat handling and performance. The kit includes two stainless steel trim tabs, two actuators with 23-foot cables, and a user-friendly one-touch leveling LED control, giving boat operators intuitive control at their fingertips. The control unit's compact design fits into a 3-inch by 3-inch mounting area with a simple 2.25-inch by 2.5-inch cutout, compatible with 12 or 24-volt systems. Installation is straightforward, as the actuators are pre-assembled and ready to connect, with no components needing to be installed inside the boat. This kit ensures reliable operation without hydraulic oil leaks, making it a safer and cleaner alternative to traditional hydraulic systems. Whether adjusting trim for optimal performance or maintaining level attitude, the Lectrotab XKA kit provides a maintenance-free, corrosion-proof solution that enhances boat control and stability in a wide range of marine conditions.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water exposure
