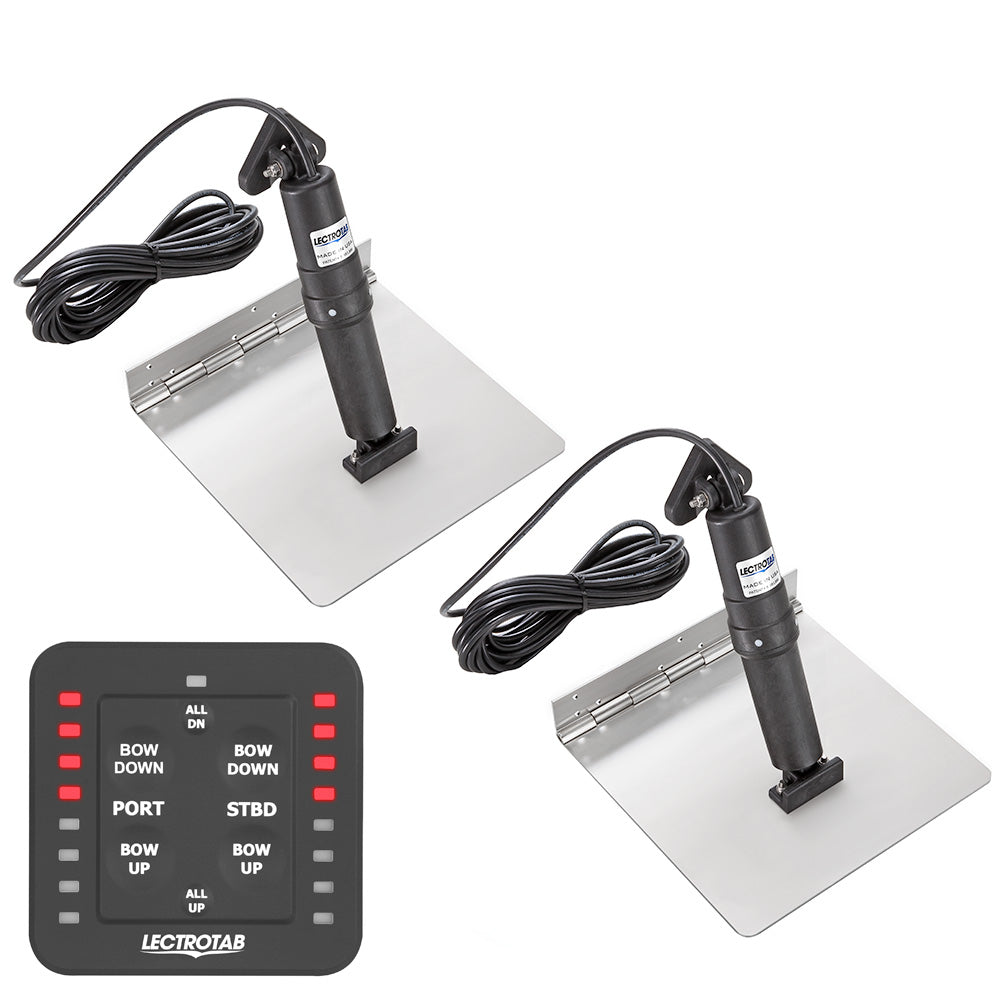

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control – 12 x 24 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and reliable solution for boat trim adjustment, designed specifically for vessels measuring 28 to 48 feet in length. Constructed with 12 gauge 304 stainless steel, these trim tabs provide exceptional strength and corrosion resistance, making them suitable for both freshwater and saltwater environments. The continuous rolled and pinned hinge design eliminates the need for welding, enhancing durability and simplifying installation. The precision-engineered actuator features a non-metallic, sealed housing that prevents corrosion and environmental damage, ensuring quiet operation and maintenance-free performance.
The actuator delivers a maximum force of 1000 lbs and incorporates internal pressure equalization and an internal brake system to prevent unintended movement during operation or backing down. The design includes a standard or low-profile transom mounting bracket, adaptable to various boat configurations. The integrated LED one-touch control offers seamless, fingertip operation, allowing for quick and accurate trim adjustments without hydraulic leaks or oil spills. The kit includes two stainless steel tabs, two actuators with 23-foot cables, and comprehensive installation instructions.
This kit is ideal for boat owners seeking a low-maintenance, corrosion-proof trim solution that combines strength, reliability, and ease of use. The compact actuator height and sealed design ensure minimal intrusion into the transom area, preserving aesthetics and functionality. Whether upgrading existing trim tabs or installing on a new vessel, the Lectrotab XKA kit provides a professional-grade solution with user-friendly operation and long-lasting performance.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage due to fouled rams or barnacle growth

• Utilizes internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for smooth, unobtrusive control

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and environmental deterioration
