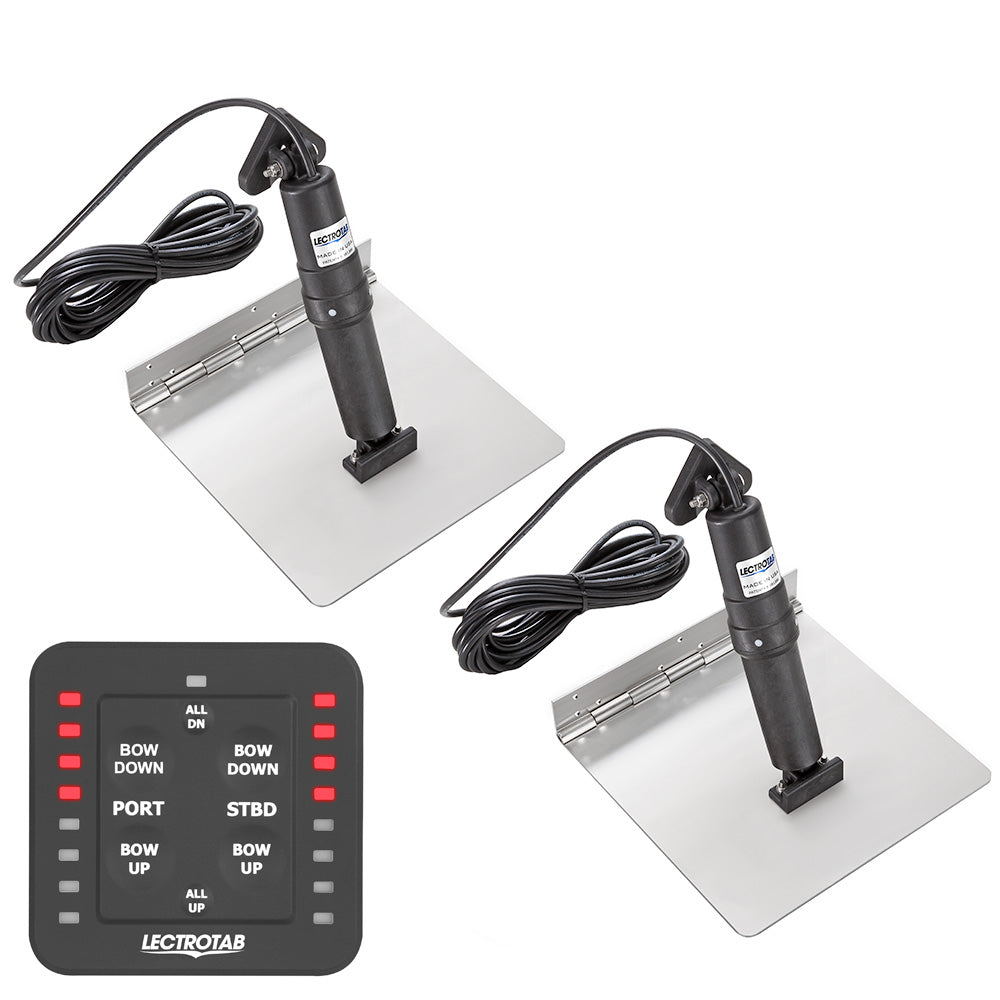

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 9 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA stainless steel trim tab kit offers a durable and corrosion-resistant solution for boats measuring 18 to 29 feet. Designed with a continuous rolled and pinned hinge, this kit ensures exceptional strength and eliminates the need for welding, providing a reliable and maintenance-free trim tab system.

The kit features an advanced, quiet-operating actuator that delivers up to 1,000 pounds of force, ensuring maximum lift and precise positioning. Its non-metallic external housing is sealed and corrosion-proof, preventing deterioration from sun exposure or water contact. The internal pressure equalization system and brake mechanism provide smooth operation and prevent unwanted movement, whether underway or at rest. Installation is straightforward, as the actuator assembly is self-contained, with no internal components requiring placement inside the boat.

The XKA trim tab kit includes a user-friendly one-touch leveling LED control, giving boaters complete command over trim adjustments at their fingertips. The system supports a 12-volt DC power supply and is compatible with both 12 and 24-volt operation. Each actuator has a 2.25-inch stroke length and comes with a 23-foot cable for flexible installation options. The kit contains two stainless steel trim tabs measuring 12 inches long by 9 inches wide, suitable for a wide range of vessel sizes and conditions.

Additional features include a sealed upper ram seal to prevent damage from fouling or barnacles, and a mounting bracket adaptable for transom installation. The package provides all necessary components, including two actuators, stainless steel tabs, one-touch control, and a comprehensive instruction manual. This robust and maintenance-free trim tab system enhances vessel performance, stability, and control, ensuring a smoother and more efficient ride in various water conditions.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouling or barnacles

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation ensures minimal noise disturbance

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun or water exposure
