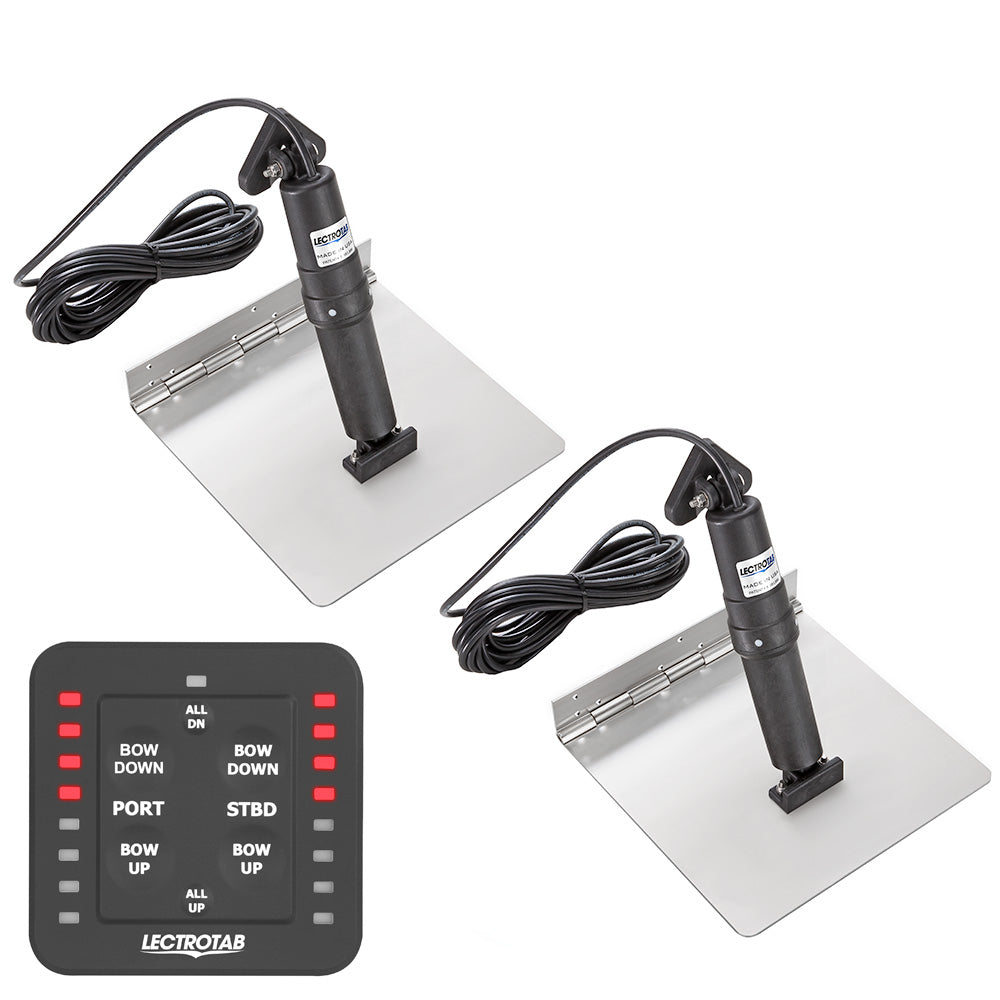

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 12 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers durable and reliable performance for boats ranging from 16 to 25 feet. Made with 12-gauge 304 stainless steel, these trim tabs provide exceptional strength and corrosion resistance, ensuring long-lasting operation in harsh marine environments. The continuous rolled and pinned hinge design eliminates the need for welding, enhancing durability and simplifying installation. The kit includes two stainless steel tabs, two high-quality actuators with 23-foot cables, and a user-friendly one-touch LED control for precise, effortless adjustment of your trim tabs. The actuator features a sealed non-metallic housing that prevents corrosion and leaks, and is capable of exerting up to 1000 pounds of force, providing maximum lift and stability for your vessel. The internal pressure equalization system and brake mechanism ensure smooth, accurate, and secure positioning even under demanding conditions. The control unit's compact design and easy mounting make it suitable for a variety of transom configurations, and the system operates on standard 12V DC power. This kit is designed for straightforward installation without the need for hydraulic fluids, reducing maintenance and potential leak issues. Whether adjusting for optimal performance or docking, the Lectrotab XKA trim tab system offers precise control, enhanced boat handling, and increased safety. The package includes comprehensive instructions, making installation accessible for DIY enthusiasts and professionals alike. Properly installed, this trim tab kit will significantly improve your boat’s maneuverability and ride quality, ensuring a smooth and confident boating experience.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouling or barnacle growth

• Utilizes internal pressure equalization system for smooth operation

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for a seamless boating experience

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
