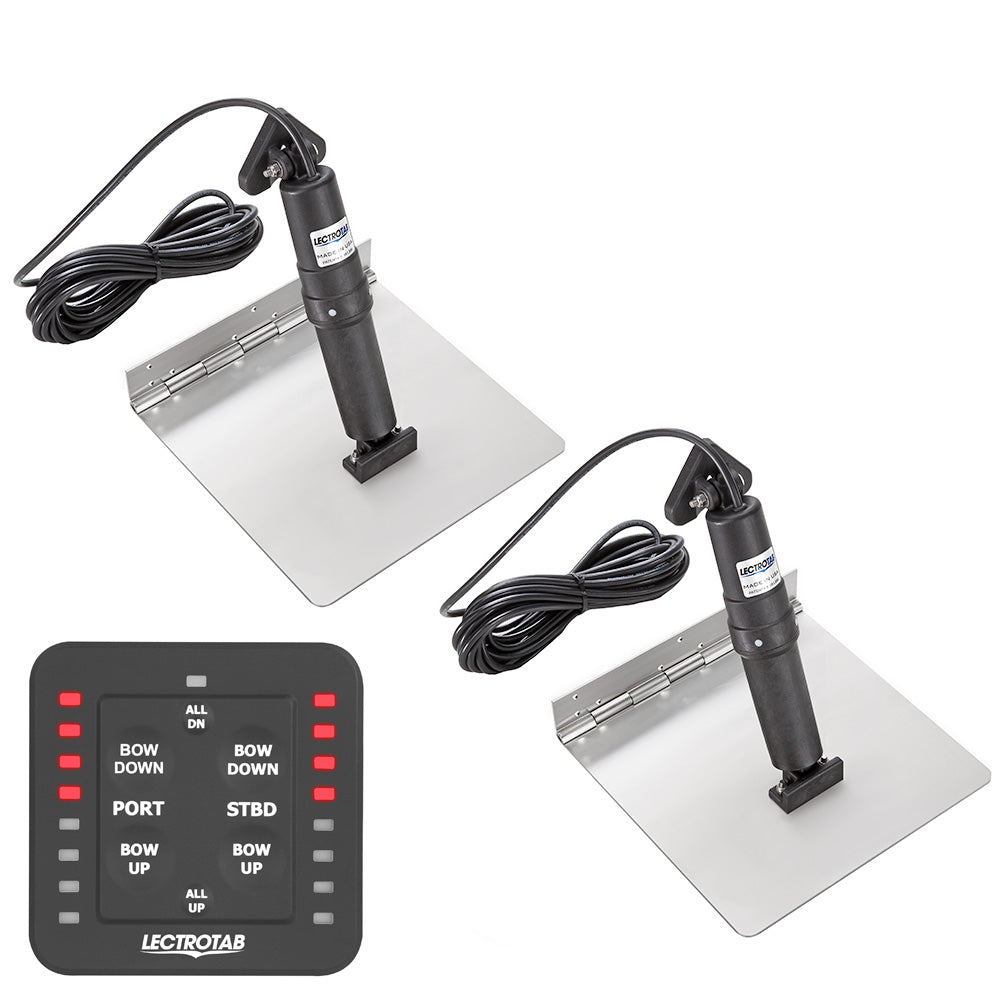

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 18 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and reliable solution for boat leveling and steering. Crafted from 12-gauge 304 stainless steel, the trim tabs provide exceptional strength and corrosion resistance, making them suitable for use in harsh marine environments. The design incorporates a continuous rolled and pinned hinge, which enhances durability by eliminating the need for welding, ensuring long-term performance. The kit includes two stainless steel tabs, each measuring 9 inches by 18 inches, and features a precision-engineered actuator that offers quiet operation and maximum lift force, facilitating smooth and accurate trim adjustments. The actuator assembly is housed in a non-metallic, permanently sealed casing, preventing corrosion and eliminating oil leaks common in hydraulic systems. This maintenance-free design simplifies installation as no components need to be installed inside the boat, and it is compatible with transom mounting brackets, either standard or low profile. The system's internal pressure equalization and brake mechanisms ensure stability during operation, preventing unwanted movement whether underway or backing down. The one-touch LED control provides straightforward, intuitive management of your trim tabs for optimal performance. Designed for boats between 21 and 30 feet, the kit is powered by a 12-volt DC system, with a 2.25-inch stroke length and 23-foot cable for flexible installation options. This complete package includes the control unit, two stainless steel tabs, two actuators, and an instruction manual, offering a comprehensive solution for marine trim management. The product is designed to withstand exposure to sun and water without deterioration, ensuring dependable operation over time. For detailed installation instructions, refer to the included manual available online.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location protects against damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures smooth and discreet adjustments

• Actuators are fully load tested to push 1000 lbs of force, ensuring robust performance

• Non-metallic external structure resists corrosion and deterioration from sun and water
