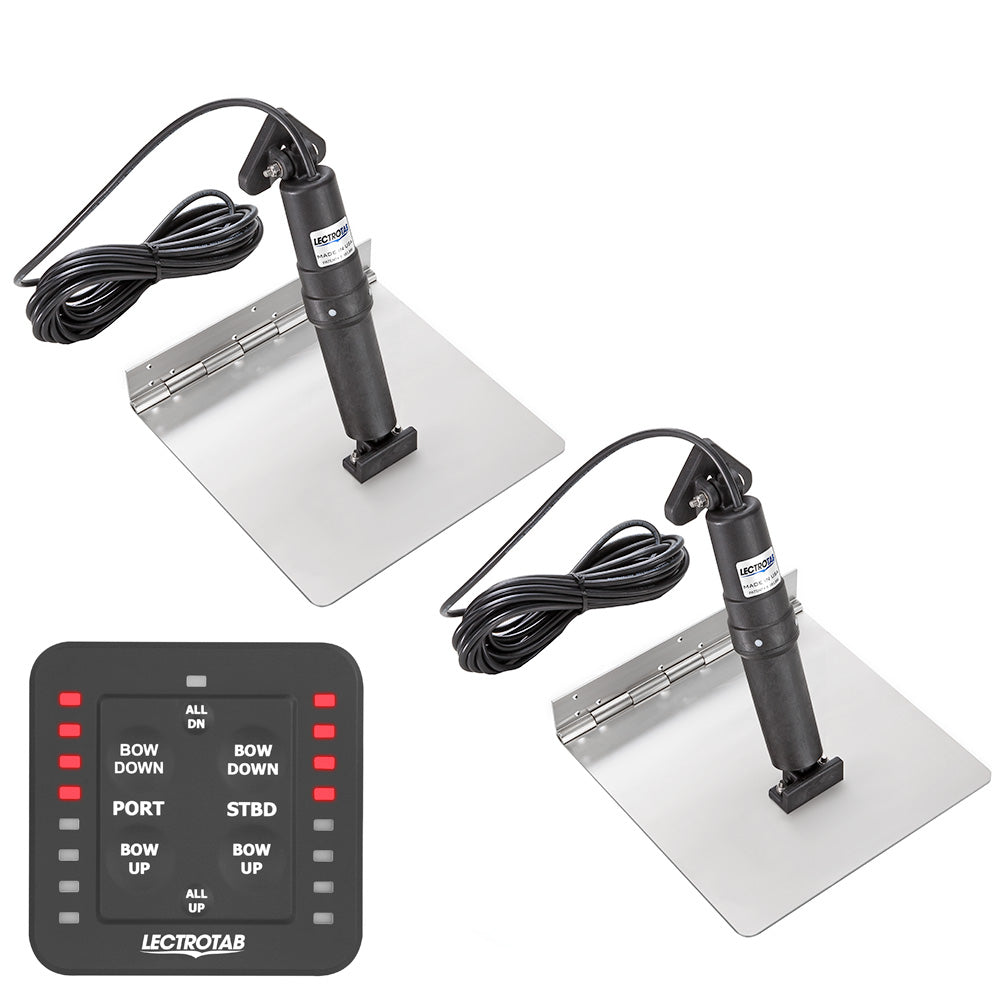

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 24 for Boats 24 to 37 Feet

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit is designed for boats ranging from 24 to 37 feet, providing reliable and durable trim control. Crafted from 12-gauge, 304 stainless steel, these trim tabs offer unmatched strength and corrosion resistance, ensuring long-lasting performance in harsh marine environments.

This kit features a continuous rolled and pinned hinge that eliminates the need for welding, enhancing durability and simplifying installation. The trim tabs are complemented by a precision-engineered actuator with internal pressure equalization and an internal brake system, which prevents unwanted movement during operation. The actuator is fully load tested to push up to 1,000 pounds of force, delivering maximum lift and precise positioning without hydraulic oil, reducing the risk of leaks or maintenance issues.

The external structure is made of non-metallic, permanently sealed housing, making it resistant to corrosion and deterioration caused by sun exposure or water. The one-touch leveling LED control provides intuitive, easy-to-use operation, allowing boaters to adjust trim with a simple press of a button. The actuator features a 2.25-inch stroke length and comes with a 23-foot cable, making installation adaptable to various transom configurations. The kit includes two stainless steel trim tabs, two actuators, the one-touch control, and an instruction manual for straightforward setup.

Designed for simplicity and reliability, the Lectrotab XKA Trim Tab Kit offers quiet operation and a maintenance-free solution for optimal boat handling and performance. Its robust construction and innovative features make it an ideal choice for boat owners seeking durable, high-performance trim control without hydraulic complexity.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for unobtrusive performance

• Actuators are fully load tested to push 1,000 lbs of force for maximum lift

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
