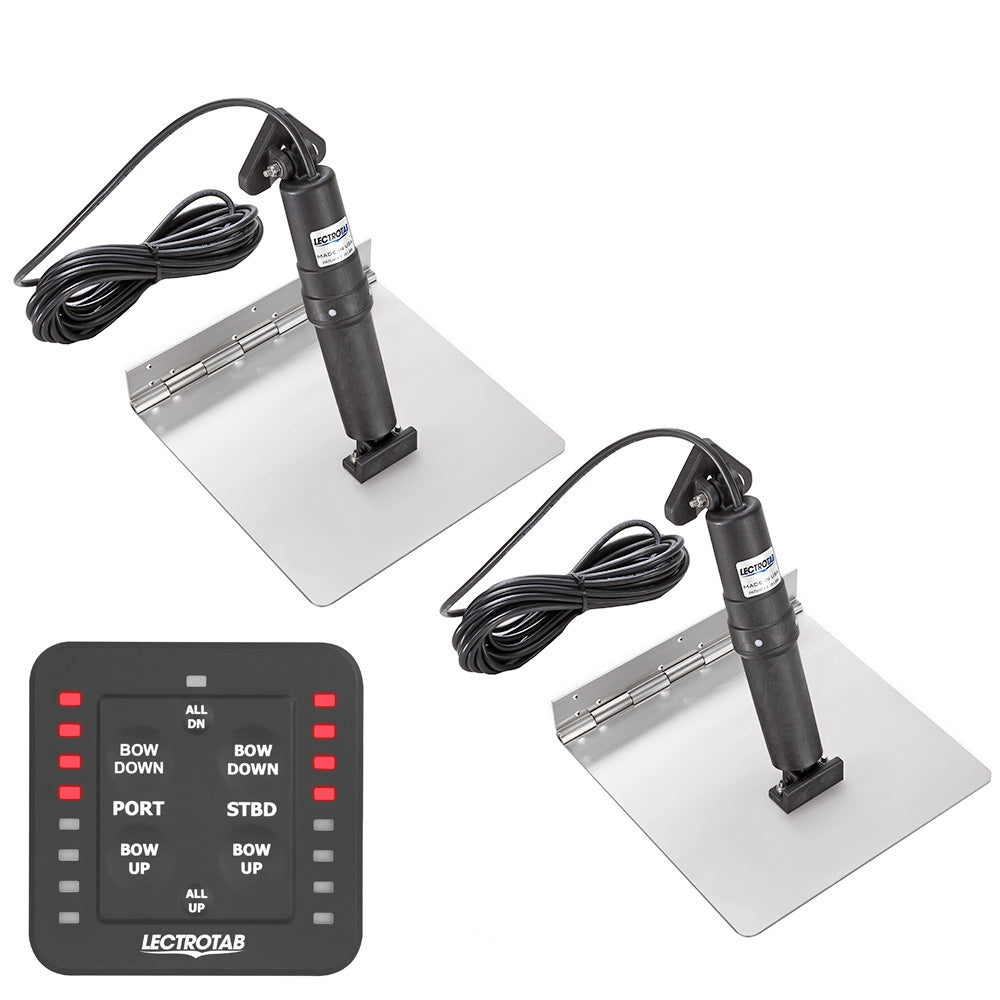

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control – 9 x 9 Inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and corrosion-resistant solution for boats measuring 14 to 19 feet. Crafted with 12-gauge 304 stainless steel, these trim tabs provide exceptional strength and reliability. The continuous rolled and pinned hinge design eliminates the need for welding, ensuring a seamless and robust construction that withstands harsh marine environments. The kit includes two stainless steel tabs and two high-quality actuators, all engineered for quiet operation and maximum lift force, delivering precise control and improved boat handling. The integrated internal pressure equalization system and internal brake prevent unwanted tab movement, enhancing safety and performance. The non-metallic external housing is sealed and corrosion-proof, making it suitable for prolonged exposure to sun and water without deterioration. The actuator's design ensures maintenance-free operation with no hydraulic oil to leak, and it is fully load tested to push up to 1000 pounds of force, providing reliable performance under demanding conditions. The included one-touch LED control simplifies operation, giving boaters effortless command over trim adjustments at their fingertips, whether in calm or rough waters. The kit's versatile mounting options, including standard or low-profile transom brackets, ensure easy installation without interior modifications. The comprehensive package also features a detailed instruction manual for straightforward setup and use, making it an ideal upgrade for boat owners seeking durability, ease of use, and enhanced maneuverability.

Features:

• Continuous rolled and pinned hinge for added strength and weld-free construction

• Upper ram seal is protected from damage caused by fouling or barnacle growth

• Utilizes internal pressure equalization to maintain consistent performance

• Internal brake system prevents unwanted movement during operation or backing down

• Quiet operation ensures minimal noise disturbance

• Actuators are load tested to withstand up to 1000 lbs of force

• External non-metallic housing resists corrosion and deterioration in sun and water
